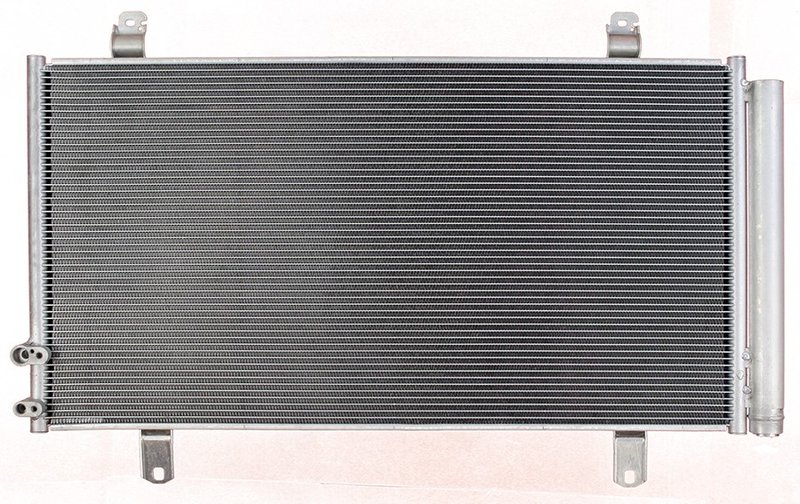

APDI 7013995 A/C Condenser

Overview of APDI 7013995 A/C Condenser for Lexus and Toyota

The APDI 7013995 A/C Condenser is designed specifically for select Lexus and Toyota models, including the Avalon, Camry, and ES350. This condenser features a parallel flow core construction that enhances heat dissipation and overall cooling efficiency.

• Parallel flow core construction for efficient heat exchange
• Core dimensions: 14-3/8 inches height, 27-1/8 inches length, and 5/8 inch thickness
• Block connection inlet and outlet fittings for secure installation
• Includes receiver/drier for improved system performance
• Compatible with Lexus Avalon, Toyota Camry, and Lexus ES350 models

Detailed Product Features and Specifications

The APDI Condenser 7013995 is built with a parallel flow core type, which allows refrigerant to flow through multiple flat tubes in parallel, improving heat transfer and reducing pressure drop. The core height measures 14-3/8 inches, core length is 27-1/8 inches, and the core thickness is 5/8 inch, providing a compact yet effective cooling surface. Both the inlet and outlet fittings utilize block connections, ensuring a reliable and leak-resistant fit within the vehicle's HVAC system. This condenser also includes a receiver/drier, which helps remove moisture and contaminants from the refrigerant, contributing to the longevity and efficiency of the air conditioning system.

About the APDI Condenser Product Line

The APDI Condenser product line focuses on delivering reliable HVAC components designed to meet or exceed OEM specifications. This line emphasizes parallel flow construction, which is known for its improved thermal performance and durability. The 7013995 part is a representative example within this line, engineered to provide consistent cooling performance for compatible Lexus and Toyota vehicles.

Common Applications and Problem Resolution

• Replaces faulty or leaking A/C condensers in Lexus Avalon, Toyota Camry, and Lexus ES350
• Addresses reduced cooling efficiency due to clogged or damaged condenser cores
• Solves refrigerant leaks caused by corrosion or physical damage
• Restores proper refrigerant flow and pressure in the A/C system
• Improves overall HVAC system reliability and performance

Installation Notes and Tips

When installing the APDI 7013995 A/C Condenser, ensure the block connection fittings are properly aligned and securely tightened to prevent leaks. It is recommended to evacuate and recharge the A/C system following installation to maintain optimal performance. Inspect the receiver/drier and replace it if necessary, although this condenser includes one to streamline the replacement process. Proper handling of the condenser core is important to avoid damage during installation.

Quality Assurance and Warranty Information

APDI condensers are manufactured to meet industry standards for durability and performance. The 7013995 A/C Condenser undergoes quality control inspections to ensure it meets OEM fit and function requirements. Warranty coverage details should be confirmed with the distributor or retailer, as they may vary by region and purchase conditions.
