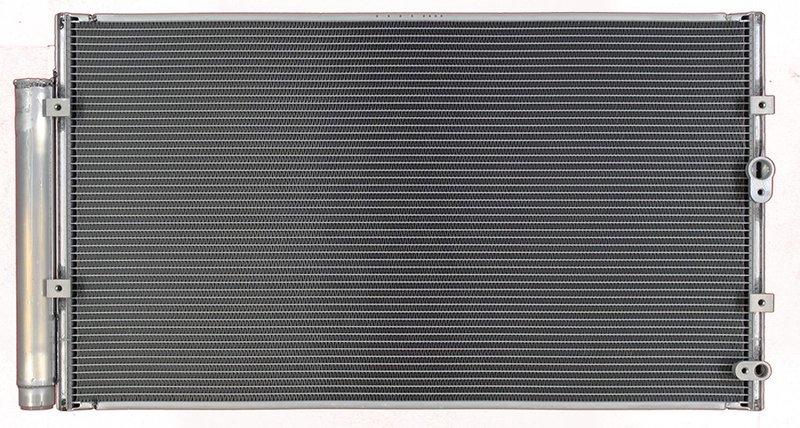

APDI 7014145 A/C Condenser

Product Overview

APDI 7014145 is an A/C condenser for Subaru, Toyota, and Scion applications with parallel flow construction and block connection fittings. It includes a receiver/drier and is built for direct HVAC system replacement on confirmed fitments.

Key Features

• Parallel flow condenser design for efficient refrigerant heat transfer.
• Block connection inlet and outlet fittings for application-specific HVAC routing.
• Includes receiver/drier for a complete condenser assembly.
• Core dimensions: 22 in. length, 12-3/4 in. height, and 5/8 in. thickness.
• Fits 2013-2019 Subaru BRZ, 2017-2019 Toyota 86, and 2013-2016 Scion FR-S.

Detailed Description

APDI 7014145 condenser is engineered for vehicles that use a parallel flow A/C layout and block-style line connections. The condenser core measures 22 inches long, 12-3/4 inches high, and 5/8 inch thick, giving it the physical profile needed for the listed Subaru BRZ, Toyota 86, and Scion FR-S applications. The included receiver/drier adds an important service component to the assembly, helping support proper HVAC system operation after replacement. This part cross-references Spectra Premium 7-4145 and AMS Automotive 4145 for the same application.

Common Repair Uses

• Restores cooling performance when the original condenser is leaking or restricted.
• Addresses poor A/C output caused by damaged condenser fins or internal blockage.
• Replaces a condenser with worn or contaminated refrigerant passages.
• Supports repair after front-end impact damage to the HVAC system.

Installation Notes

Verify line connection style, core dimensions, and vehicle fitment before installation. Replace refrigerant system components according to proper A/C service procedures, and inspect seals, lines, and related hardware during service. Confirm compatibility with the specific Subaru BRZ, Toyota 86, or Scion FR-S application before final assembly.

Quality Assurance

APDI Condenser line products are built for application-specific HVAC replacement. Part number 7014145 is listed with confirmed fitment for the vehicles shown above.
