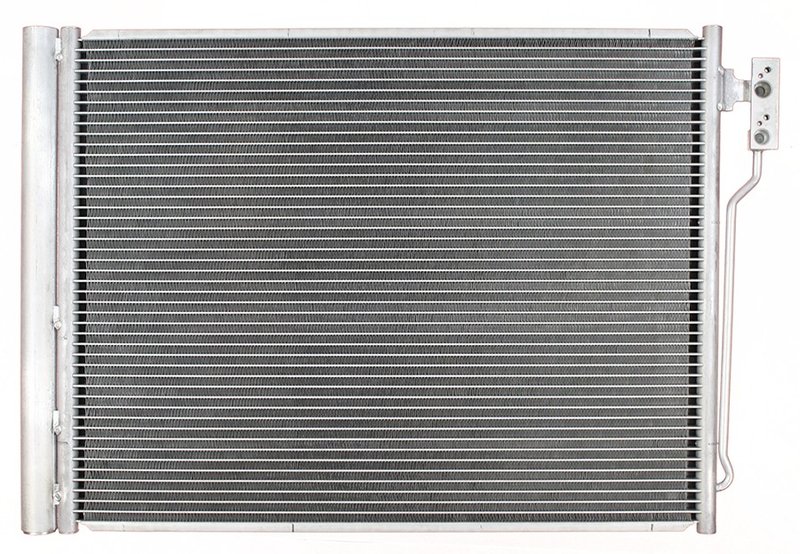

APDI 7014242 A/C Condenser

Overview of APDI 7014242 A/C Condenser for BMW 528i Models

The APDI 7014242 A/C Condenser is designed specifically for BMW 528i and 528i xDrive models, providing reliable cooling performance. This condenser features a parallel flow core construction and includes a receiver/drier for enhanced system efficiency.

• Parallel flow core construction for efficient heat exchange
• Core dimensions: 18 inches height, 23 inches length, 5/8 inch thickness
• Block connection inlet and outlet fittings for secure installation
• Includes receiver/drier to maintain system cleanliness and moisture control
• Compatible with BMW 528i and 528i xDrive models

Detailed Features of the APDI Condenser Brand Line

The APDI Condenser product line focuses on delivering durable and efficient A/C condensers tailored to specific vehicle applications. The 7014242 model exemplifies this approach with its parallel flow core design, which improves refrigerant flow and heat dissipation. This design helps maintain optimal air conditioning performance in BMW 528i vehicles, ensuring consistent cabin comfort.

Technical Description and Specifications

This A/C condenser utilizes a parallel flow core material and construction, which enhances heat transfer efficiency compared to traditional tube-and-fin designs. The core measures 18 inches in height, 23 inches in length, and 5/8 inch in thickness, providing a compact yet effective cooling surface. Both the inlet and outlet fittings use block connections, facilitating a secure and leak-resistant fit within the HVAC system. Additionally, the included receiver/drier helps remove moisture and contaminants from the refrigerant, protecting the system components and extending service life.

Common Applications and Problem Resolution

• Replaces faulty or leaking A/C condensers in BMW 528i and 528i xDrive models
• Addresses reduced cooling efficiency due to clogged or damaged condenser cores
• Solves refrigerant leaks caused by corrosion or physical damage
• Eliminates moisture contamination in the A/C system with the included receiver/drier
• Restores proper refrigerant flow and pressure for consistent air conditioning performance

Installation Notes and Tips

When installing the APDI 7014242 A/C condenser, ensure the block connection fittings are properly aligned and securely tightened to prevent leaks. It is recommended to evacuate and recharge the A/C system following installation to maintain optimal performance. Inspect surrounding components for damage or wear during replacement to avoid future issues.

Quality Assurance and Warranty Information

APDI manufactures this condenser to meet or exceed OEM specifications for fit, form, and function. The part number 7014242 is backed by APDI's quality standards, ensuring durability and reliable operation in BMW 528i and 528i xDrive vehicles. Please refer to APDI's warranty policy for specific coverage details.
