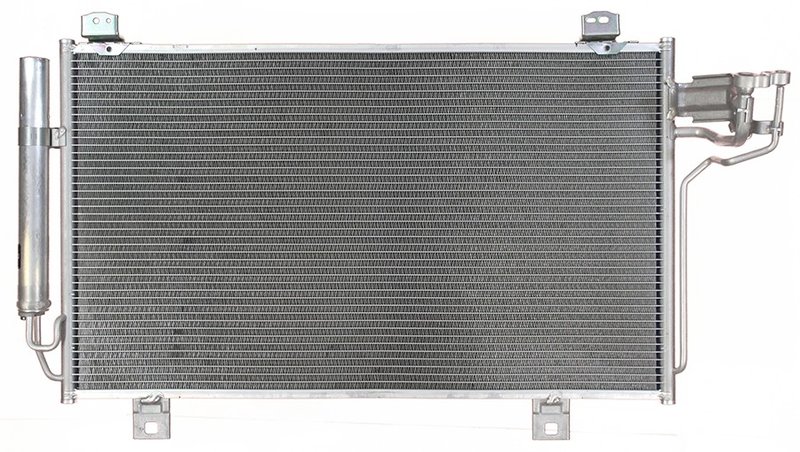

APDI 7014243 A/C Condenser

Overview of APDI 7014243 A/C Condenser for Mazda 3 and 6

The APDI Condenser part number 7014243 is designed specifically for Mazda 3, Mazda 3 Sport, and Mazda 6 models. This A/C condenser features a parallel flow core construction that enhances heat dissipation and cooling efficiency, making it a reliable component for your vehicle's HVAC system.

• Parallel flow core construction for efficient heat exchange
• Core dimensions: 14-1/4 inches height, 25 inches length, and 5/8 inch thickness
• Block connection type for both inlet and outlet fittings
• Includes receiver/drier for improved system performance
• Compatible with Mazda 3, 3 Sport, and 6 models

Detailed Features of the APDI Condenser Product Line

The APDI Condenser product line focuses on delivering durable and efficient A/C condensers with parallel flow core technology. This design improves refrigerant flow and heat transfer, which is critical for maintaining optimal air conditioning performance in Mazda vehicles. The inclusion of a receiver/drier helps to remove moisture and contaminants, protecting the A/C system components and extending their service life.

Technical Description and Specifications

The APDI 7014243 A/C condenser is constructed with a parallel flow core type, which allows refrigerant to flow through multiple flat tubes arranged in parallel, increasing surface area for heat exchange. The core measures 14-1/4 inches in height, 25 inches in length, and 5/8 inch in thickness, providing a compact yet effective cooling solution. Both the inlet and outlet fittings use block connections, ensuring secure and leak-resistant attachment to the vehicle’s HVAC system. This condenser is engineered to meet the specific cooling requirements of Mazda 3, 3 Sport, and 6 models, ensuring compatibility and reliable performance.

Common Applications and Issues Addressed

• Replacement for faulty or leaking A/C condensers in Mazda 3 and Mazda 6 vehicles
• Resolves reduced cooling efficiency due to clogged or damaged condenser cores
• Addresses refrigerant leaks caused by corrosion or physical damage
• Improves overall HVAC system performance by maintaining proper refrigerant flow
• Prevents moisture contamination with the included receiver/drier

Installation Notes and Tips

When installing the APDI 7014243 condenser, ensure the block connection fittings are properly aligned and securely tightened to prevent leaks. It is recommended to evacuate and recharge the A/C system following installation to maintain optimal refrigerant levels. Inspect the surrounding components for damage or wear during replacement to avoid future issues. Proper handling of the receiver/drier is important to maintain system dryness and prevent contamination.

Quality Assurance and Warranty Information

APDI A/C condensers are manufactured to meet OEM specifications for fit, form, and function. The 7014243 condenser undergoes quality control testing to ensure durability and performance in Mazda 3 and 6 vehicles. While specific warranty details are not provided here, APDI products typically come with a limited warranty covering defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
