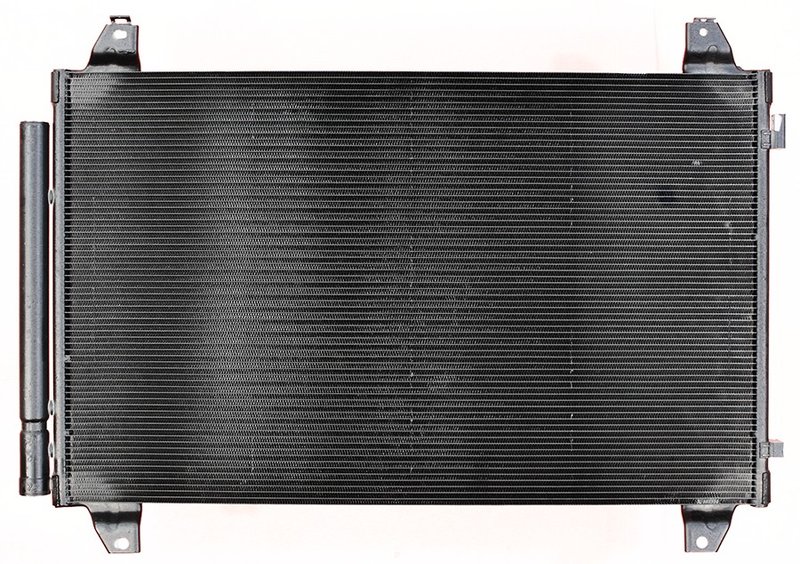

APDI 7014277 A/C Condenser

Overview

APDI 7014277 is an A/C condenser for select Acura and Honda applications. It uses a parallel flow design with block connection inlet and outlet fittings, and it includes a receiver/drier. This part number is built for direct replacement service in the HVAC system.

Key Features

• Parallel flow condenser core for efficient refrigerant heat transfer
• Block connection inlet and outlet fittings for application-specific fitment
• Includes receiver/drier
• Core dimensions: 29-3/8 in. length, 18-1/8 in. height, 5/8 in. thickness
• APDI 7014277 for HVAC condenser replacement service

Detailed Description

APDI 7014277 is an A/C condenser engineered for compatible Acura and Honda HVAC systems, including Fits 2014-2018 Acura MDX, N/A; Fits 2016-2019 Honda Pilot, N/A; and Fits 2017-2019 Honda Ridgeline, N/A. The parallel flow construction is used to promote efficient refrigerant cooling, while the block connection fittings support the correct line interface for the application. The included receiver/drier adds an important service component to the assembly. If you are replacing a leaking, restricted, or damaged condenser on an Acura MDX, Honda Pilot, or Honda Ridgeline, this part number 7014277 provides a fitment-specific solution.

Common Replacement Reasons

• Refrigerant loss from a damaged or leaking condenser
• Reduced A/C performance caused by restricted heat exchange
• Physical damage from road debris or corrosion
• Service replacement after compressor or system contamination events

Installation Notes and Tips

Verify line connection style, core dimensions, and vehicle fitment before installation. Replace system components according to standard A/C service procedures and evacuate and recharge the system after condenser replacement. Confirm the part number 7014277 matches the required application before ordering.

Quality Assurance

APDI offers a condenser line focused on application-specific HVAC replacement parts. This part cross-references Monroe Shocks & Struts (e.g., 31-4277, 80100TG7A01) for the same application.
