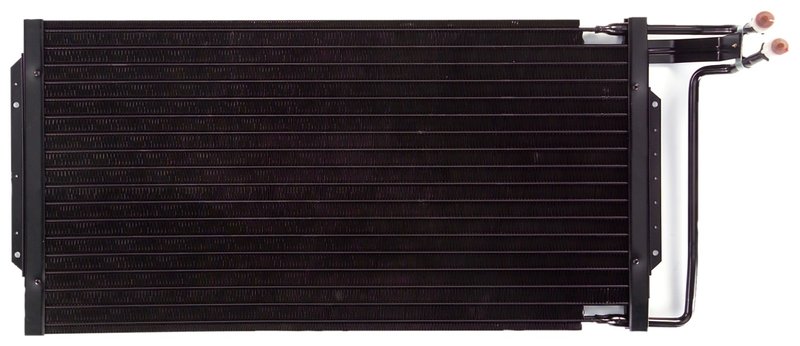

APDI 7014547 A/C Condenser

APDI 7014547 A/C Condenser for GM

APDI 7014547 is a parallel flow A/C condenser built for GM applications that require a direct-fit replacement with OE-style refrigerant line connections. It is engineered for vehicles that need efficient heat transfer in a compact condenser core, including Buick Roadmaster, Cadillac Fleetwood, Chevrolet Caprice, Chevrolet Impala, and Cadillac 60 Special applications.

The APDI Condenser line focuses on replacement condensers for air conditioning service, and this unit follows that approach with a parallel flow core design and male O-ring inlet and outlet fittings for a clean connection at the A/C system.

Key Features

• Parallel flow condenser construction for efficient refrigerant cooling
• Core dimensions: 27-3/4 in. length, 15-5/8 in. height, 3/4 in. thickness
• Inlet fitting: M20x1.5 male O-ring
• Outlet fitting: M20x1.5 male O-ring
• Replacement condenser for GM HVAC systems
• APDI part number 7014547

Detailed Description

APDI 7014547 is an A/C condenser for GM vehicles that use a parallel flow core and M20x1.5 male O-ring fittings. The condenser core measures 27-3/4 inches long, 15-5/8 inches high, and 3/4 inch thick, giving it the size and layout needed for the listed full-size GM platforms. This part cross-references Spectra Premium 7-4548 for the same application.

Compatible vehicle coverage includes 1994-1996 Buick Roadmaster, 1994-1996 Cadillac Fleetwood with dual fans and heavy duty cooling, 1994-1996 Chevrolet Caprice with dual fans and heavy duty cooling, 1994-1996 Chevrolet Impala with dual fans and heavy duty cooling, and 1993 Cadillac 60 Special. If you are searching for an APDI 7014547 condenser for a 1994-1996 Chevrolet Caprice or a 1994-1996 Cadillac Fleetwood A/C condenser replacement, this part matches those fitment listings directly.

What This Part Helps Address

• Weak A/C cooling caused by a leaking or restricted condenser
• Refrigerant flow issues in a damaged parallel flow condenser
• Loss of system efficiency from corrosion or impact damage
• Fitment problems when replacing the original GM condenser
• Service needs on Buick Roadmaster, Cadillac Fleetwood, Chevrolet Caprice, Chevrolet Impala, and Cadillac 60 Special models

Installation Notes and Tips

Verify the original condenser dimensions and both M20x1.5 male O-ring fittings before installation. Confirm vehicle configuration, especially the dual fan and heavy duty cooling notes listed for 1994-1996 Cadillac Fleetwood, Chevrolet Caprice, and Chevrolet Impala. Replace the condenser only after the system has been properly evacuated and inspected for contamination, leaks, and damaged seals.

Quality Assurance

APDI supplies replacement condensers for GM HVAC applications, and this unit is built to match the listed fitment and connection style for direct replacement service. Confirm part number 7014547 and the vehicle-specific notes before ordering.
