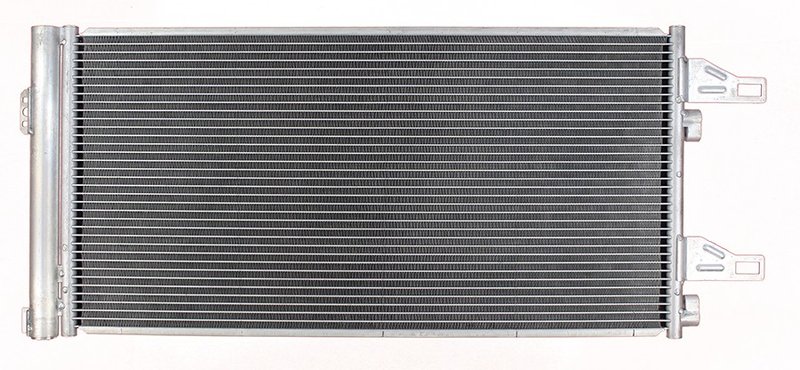

APDI 7014614 A/C Condenser

APDI 7014614 A/C Condenser for Ram ProMaster

APDI 7014614 is a parallel flow A/C condenser for Ram ProMaster 1500, 2500, and 3500 models. It is built for direct replacement service on 2014-2020 Ram ProMaster vans and includes the receiver/drier for a complete condenser assembly.

Key Features

• Parallel flow condenser construction for efficient refrigerant heat transfer
• Block connection inlet and outlet fittings
• Core dimensions: 27-1/2 in. length, 13-3/4 in. height, 5/8 in. thickness
• Includes receiver/drier
• APDI 7014614 condenser for Ram ProMaster 1500, 2500, and 3500 applications

Product Details

This APDI condenser line is built for HVAC service where a direct-fit A/C condenser is needed for Ram ProMaster vans. The parallel flow core design supports efficient refrigerant cooling, while the block connection fittings match the listed vehicle applications. If you are replacing a leaking or damaged condenser on a Ram ProMaster 1500, 2500, or 3500, APDI 7014614 provides the specified fitment and core sizing for 2014-2020 models.

This part cross-references Mopar 57008243AB for the same application.

Common Issues This Part Can Address

• A/C refrigerant leaks from a damaged condenser core
• Reduced cooling performance from restricted or corroded condenser passages
• Physical damage from road debris or front-end impact
• Improper A/C operation caused by a failing condenser assembly
• Service replacement needs on Ram ProMaster 1500, 2500, and 3500 vans

Installation Notes and Tips

Verify the block connection style and core dimensions before installation. Replace any contaminated refrigerant system components as needed, and evacuate and recharge the system according to factory service procedures after condenser replacement. Confirm fitment for your specific Ram ProMaster year and model before ordering.

Quality Assurance

APDI manufactures this condenser as a replacement HVAC component for the listed Ram ProMaster applications. The included receiver/drier supports a more complete condenser service replacement.

Compatible Vehicles

• Fits 2014-2020 Ram ProMaster 1500, N/A
• Fits 2014-2020 Ram ProMaster 2500, N/A
• Fits 2014-2020 Ram ProMaster 3500, N/A
