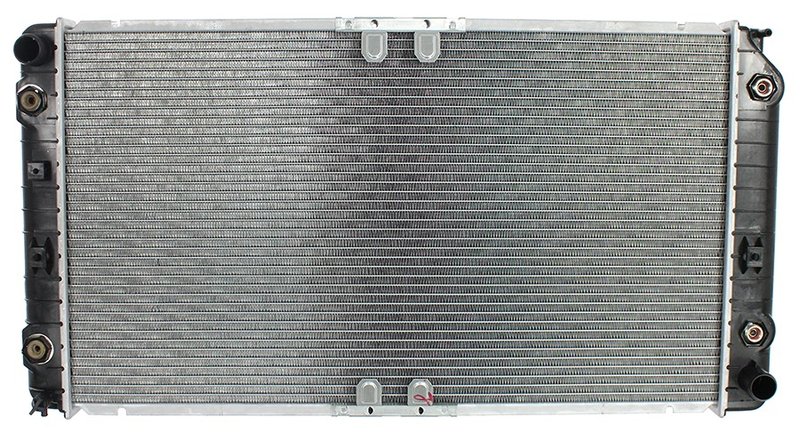

APDI 8011517 Radiator

Radiator for GM Full-Size Cooling Systems

APDI 8011517 is a radiator built for GM applications that require both engine oil and transmission oil cooling. It uses a plastic tank and aluminum core construction with a single-row core layout for direct replacement service on select Buick, Cadillac, and Chevrolet full-size models.

Key Features

• Plastic tank aluminum construction for a lightweight OE-style design
• Single-row core with 17-1/4 in. core height, 30-1/2 in. core width, and 1-1/4 in. core thickness
• 1-5/16 in. inlet and 1-5/16 in. outlet diameters
• Integrated 11-1/2 in. engine oil cooler section
• Integrated 11-1/2 in. transmission oil cooler section
• APDI radiator part number 8011517 for GM cooling system replacement

Detailed Description

This APDI radiator, part number 8011517, is specified for 1994-1996 Buick Roadmaster, Cadillac Commercial Chassis, Cadillac Fleetwood, Chevrolet Caprice, and Chevrolet Impala models equipped with both an engine oil cooler and a transmission oil cooler. The radiator core measures 17-1/4 inches high by 30-1/2 inches wide, with a 1-1/4 inch thickness and a single-row core design. Its plastic tank aluminum construction supports a direct-fit replacement approach for GM cooling system service.

APDI 8011517 cross-references Spectra Premium CU1517 for the same application. This radiator is a practical replacement choice when servicing a Buick Roadmaster radiator, Chevrolet Caprice radiator, or Cadillac Fleetwood radiator in the confirmed model years.

What It Helps Address

• Coolant leaks from a damaged or aging radiator
• Overheating caused by restricted or inefficient heat transfer
• Transmission temperature concerns tied to a failing cooler circuit
• Engine oil cooling issues in vehicles equipped with an oil cooler
• Replacement needs after corrosion, cracking, or tank failure

Installation Notes and Tips

Verify radiator dimensions, inlet and outlet size, and cooler connections before installation. This unit is listed for vehicles with both engine oil cooler and transmission oil cooler equipment, so confirm the existing cooling package matches the application. Flush the cooling system, inspect hoses and clamps, and check for contamination in the cooler lines before putting the vehicle back into service.

Quality Assurance

APDI supplies radiator components for GM cooling applications, and this radiator follows the listed OE-style construction and fitment details for the confirmed vehicles.

Compatible Vehicles

• Fits 1994-1996 Buick Roadmaster, N/A, with engine oil cooler and transmission oil cooler; radiator
• Fits 1994-1996 Cadillac Commercial Chassis, N/A, with engine oil cooler and transmission oil cooler; radiator
• Fits 1994-1996 Cadillac Fleetwood, N/A, with engine oil cooler and transmission oil cooler; radiator
• Fits 1994-1996 Chevrolet Caprice, N/A, with engine oil cooler and transmission oil cooler; radiator
• Fits 1994-1996 Chevrolet Impala, N/A, with engine oil cooler and transmission oil cooler; radiator
