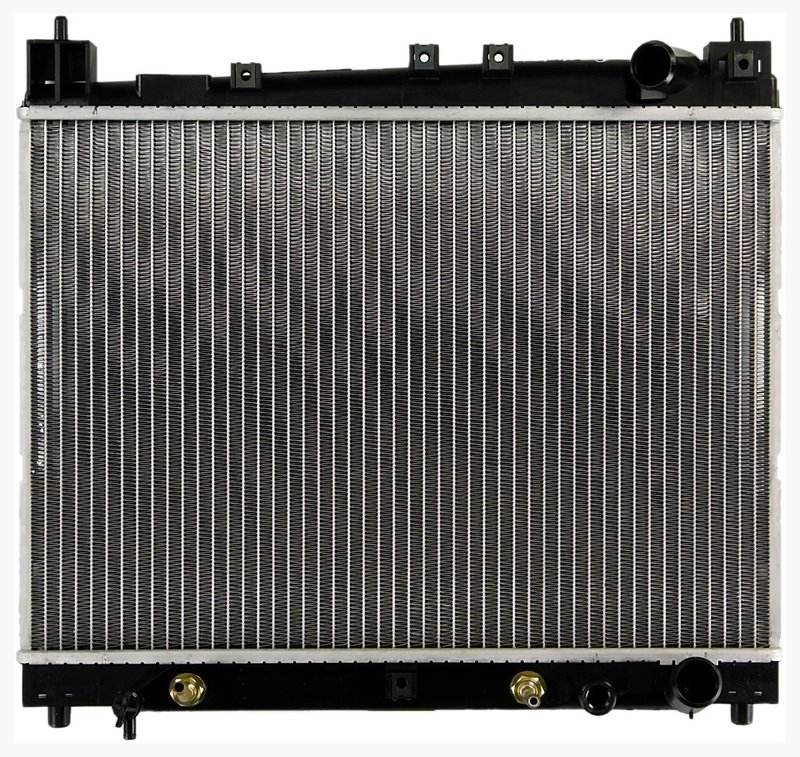

APDI 8012305 Radiator

Radiator for Toyota Echo, Scion xA and xB

APDI Radiator 8012305 is a direct-fit cooling system replacement for select Toyota and Scion applications. Built with a plastic tank and aluminum core, it matches the OE-style layout used on the Toyota Echo, Scion xA, and Scion xB.

Key Features

• Plastic tank aluminum construction for OE-style fit and function
• Core dimensions: 13-5/8 in. height, 18-13/16 in. width, 5/8 in. thickness
• Single-row core design
• 1-1/4 in. inlet and 1-1/4 in. outlet diameters
• Integrated transmission oil cooler section: 8-7/8 in.
• APDI part number 8012305 for easy catalog matching

Product Details

This APDI radiator is built for vehicles that need a compact, OE-style cooling assembly with the correct hose connections and transmission cooler provision. The aluminum core helps transfer heat efficiently, while the plastic tank design follows the common factory configuration used on these Toyota and Scion models. APDI 8012305 is a practical replacement choice for drivers servicing a Toyota Echo radiator, Scion xA radiator, or Scion xB radiator.

This part cross-references DENSO Auto Parts 221-3110 and Spectra Premium CU2305 for the same application.

What It Helps Address

• Coolant leaks from a damaged or aging radiator
• Overheating caused by restricted or inefficient heat transfer
• Cracked plastic tanks or weakened seams
• Transmission cooler service needs on equipped vehicles
• Replacement after corrosion or physical damage

Installation Notes and Tips

Verify inlet and outlet hose sizes, core dimensions, and transmission cooler connection layout before installation. Drain the cooling system, inspect hoses and clamps, and confirm the radiator mounts align with the vehicle’s factory support points. After installation, refill with the correct coolant and bleed air from the system according to the vehicle service procedure.

Quality Assurance

APDI offers an OE-style radiator construction intended to match factory fitment requirements for the listed Toyota Echo and Scion applications. Confirm vehicle year and model before ordering APDI 8012305.
