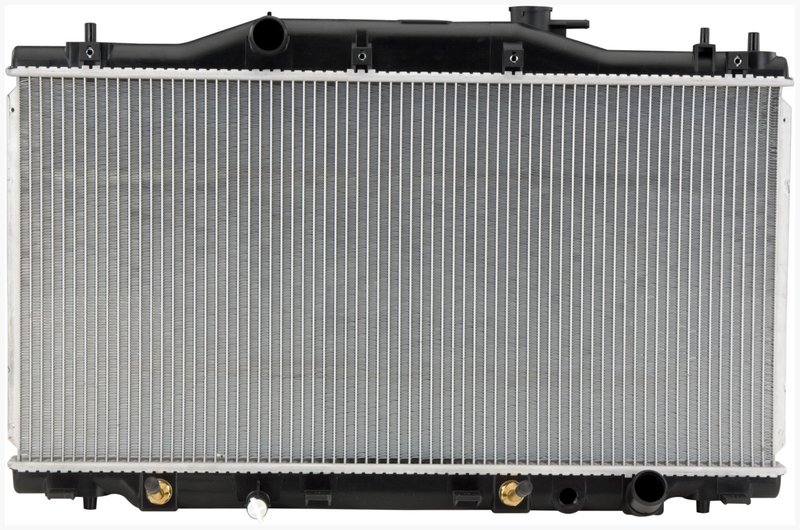

APDI 8012412 Radiator

APDI Radiator for Acura RSX Overview

The APDI Radiator part number 8012412 is designed specifically for the Acura RSX, providing reliable cooling performance. Constructed with a plastic tank and aluminum core, this radiator supports efficient heat dissipation to maintain optimal engine temperature.

• Plastic tank aluminum construction for durability and heat transfer
• Core dimensions: 13-3/4 inches height, 28-1/2 inches width, 5/8 inch thickness
• Single core row design for effective cooling
• Inlet and outlet diameters both measure 1-1/2 inches
• Includes a 12-13/16 inch transmission oil cooler

Detailed Radiator Specifications and Features

This APDI Radiator from the Radiator brand line features a plastic tank combined with an aluminum core, balancing weight and thermal conductivity. The core measures 13-3/4 inches in height, 28-1/2 inches in width, and 5/8 inch in thickness, with a single row of cooling tubes. Both the inlet and outlet ports have a diameter of 1-1/2 inches, ensuring compatibility with the Acura RSX cooling system. Additionally, the radiator includes a built-in transmission oil cooler measuring 12-13/16 inches, which helps maintain transmission fluid temperature under normal driving conditions.

Compatible Vehicles and Common Applications

• Compatible with Acura RSX models requiring a direct-fit radiator replacement
• Addresses overheating issues caused by radiator core damage or clogging
• Replaces radiators with leaking plastic tanks or corroded aluminum cores
• Restores proper coolant flow and engine temperature regulation
• Supports transmission cooling to prevent fluid overheating

Installation Notes and Tips

When installing the APDI Radiator 8012412 on an Acura RSX, ensure all hose connections match the 1-1/2 inch inlet and outlet diameters. Verify the radiator mounts align with the vehicle’s frame and that the transmission oil cooler lines are properly connected. It is recommended to flush the cooling system before installation to remove debris and old coolant. Use manufacturer-recommended coolant and check for leaks after installation.

Quality Assurance and Warranty Information

APDI Radiators are manufactured to meet OEM specifications for fit, form, and function. The plastic tank aluminum construction is engineered for durability and corrosion resistance. While specific warranty details for part number 8012412 should be confirmed at the point of purchase, APDI typically offers limited warranties covering defects in materials and workmanship.
