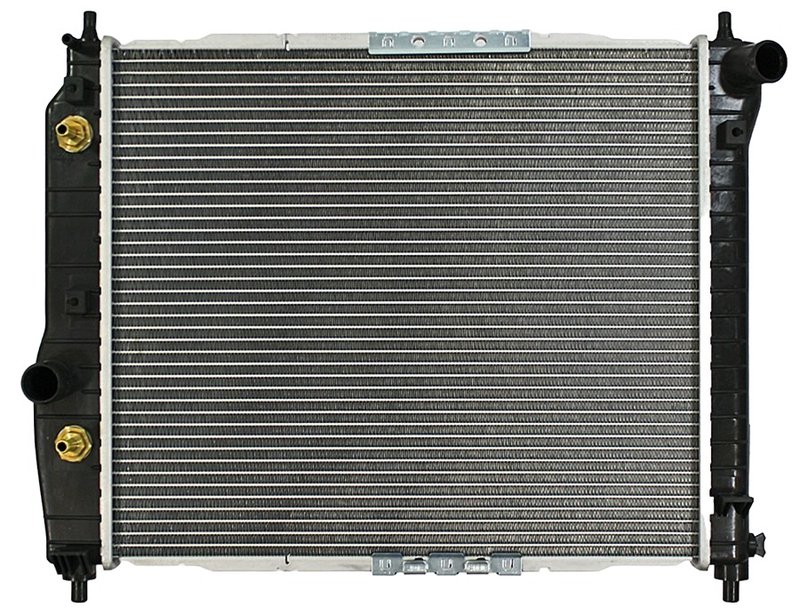

APDI 8012774 Radiator

Radiator Overview

APDI radiator 8012774 is a direct-fit cooling replacement for select GM small-car applications. It uses a plastic tank and aluminum core construction with a single-row design to support efficient heat transfer in a compact package.

Fits 2004-2009 Suzuki Swift+, 2004-2008 Chevrolet Aveo, and other listed applications. The APDI 8012774 also includes transmission oil cooler provisions, making it a practical replacement for vehicles that use an integrated cooler circuit.

Key Features

• Plastic tank and aluminum core construction
• Single-row core design for compact cooling packaging
• Integrated transmission oil cooler provisions
• Core dimensions: 16-1/4 in. height, 18-15/16 in. width, 5/8 in. thickness
• 1-3/8 in. inlet and outlet diameters

Fitment Details

Compatible with select Chevrolet Aveo, Chevrolet Aveo5, Pontiac Wave, Pontiac Wave5, Suzuki Swift, and Suzuki Swift+ models. Fits 2004-2009 Suzuki Swift+, 2004-2008 Chevrolet Aveo, 2006-2008 Chevrolet Aveo5, 2005-2008 Pontiac Wave, 2007-2008 Suzuki Swift, and 2005-2007 Pontiac Wave5.

This part cross-references Spectra Premium CU2774 and Anchor 2774 for the same application.

What It Helps Address

• Overheating caused by a leaking or restricted radiator
• Coolant loss from cracked tanks or aged core materials
• Poor heat rejection from a damaged cooling assembly
• Transmission fluid temperature control concerns in equipped vehicles

Installation Notes

Verify core dimensions, inlet and outlet size, and transmission cooler connection points before installation. Confirm the vehicle is listed for radiator use and review the notes for heater core or non-AC application details where shown.

Quality Assurance

APDI supplies cooling components for replacement use across GM applications, and this radiator is built to match the listed fitment and dimensional requirements for the specified vehicles.
