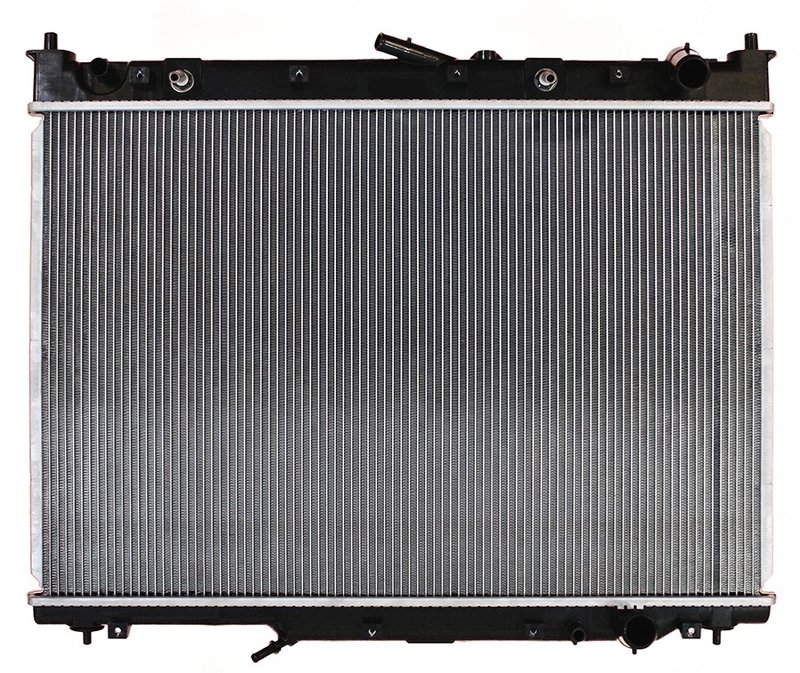

APDI 8012986 Radiator

Radiator Overview

This APDI radiator, part number 8012986, is built for the cooling system on compatible Mazda CX-9 applications with the tow package. It uses a plastic tank and aluminum core construction to support efficient heat transfer in a direct-fit replacement format.

Key Features

• Plastic tank and aluminum core construction
• Single-row core design for streamlined cooling flow
• Core dimensions: 19-3/4 in. height, 29-1/2 in. width, 1 in. thickness
• 1-3/8 in. inlet and outlet diameters
• Integrated transmission oil cooler section measuring 14-3/4 in.

Fitment Details

Fits 2007-2015 Mazda CX-9, N/A, with tow package. This APDI radiator, part number 8012986, is listed for the radiator application on those model years and is a direct replacement style component for the cooling system.

What It Helps Address

• Overheating caused by a worn or restricted radiator
• Coolant leaks from aging plastic tank construction
• Reduced heat exchange from a damaged core
• Transmission fluid cooling concerns in equipped vehicles

Installation Notes

Verify radiator dimensions, inlet and outlet sizes, and transmission cooler connections before installation. Confirm tow package equipment and match the original mounting and hose routing on the vehicle. Part number 8012986 should be checked against the removed unit to confirm application details.

Quality Assurance

APDI supplies cooling components for replacement use, and this radiator is built with the construction and dimensions needed for the listed Mazda CX-9 application. Cross-reference part numbers include Anchor 2985 and Spectra Premium CU2986 for the same application.
