APDI 8013136 Radiator
OE Quality 60-Day Returns
APDI
 Radiator

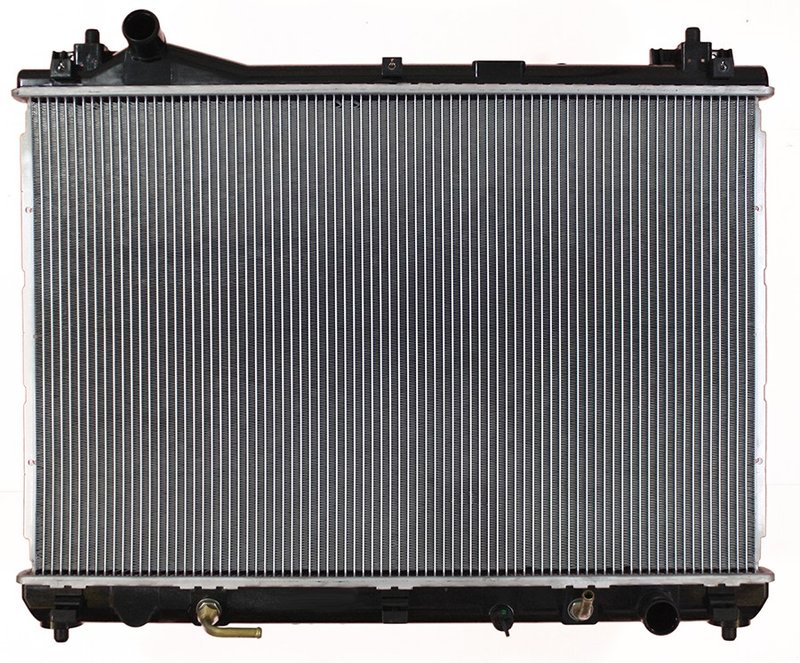

APDI 8013136 Radiator

Brand APDI 8013136
Construction Plastic tank aluminum
Core Height 17-3/4
Core Thickness 3/4
Core Width 27-1/2
Core Row Quantity 1
Inlet Diameter 1-3/8
Outlet Diameter 1-3/8
Trans Oil Cooler (in) 13-3/4
Product line Radiator
Fits Suzuki · 9 vehicles

OE-style replacement. Plastic tank and aluminum core construction for radiator service.

Integrated cooler section. Includes a transmission oil cooler section for added cooling-system function.

Direct fit design. Built for the listed Suzuki radiator application with matched connection sizing.

Cross-references Bosch 13136, Spectra Premium CU13136 and 1770065J10 for the same application. See all 5.

$175.05Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $175.05
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator options

Radiator Overview

This APDI radiator, part number 8013136, is built for cooling-system replacement on select Suzuki applications. It uses a plastic tank and aluminum core construction with a single-row core layout for straightforward OE-style service.

Key Features

  • Plastic tank and aluminum core construction
  • Single-row core design for efficient coolant flow
  • Core dimensions: 27-1/2 in. wide, 17-3/4 in. high, 3/4 in. thick
  • 1-3/8 in. inlet and 1-3/8 in. outlet connections
  • Integrated transmission oil cooler section measuring 13-3/4 in.

Fitment Details

Compatible with 2009-2017 Suzuki Grand Vitara, radiator application with outlet connection on driver side. This APDI radiator, part number 8013136, matches the listed Grand Vitara fitment for direct cooling-system replacement.

Common Replacement Uses

  • Leaking or cracked radiator tanks
  • Restricted coolant flow from internal wear or contamination
  • Cooling-system overheating concerns
  • Transmission cooler service when the radiator cooler section is damaged

Installation Notes

Verify inlet and outlet sizing, core dimensions, and outlet connection location before installation. Confirm the vehicle uses the listed driver-side outlet connection and radiator configuration. Transfer any required external components from the original unit if applicable to your application.

Quality Assurance

APDI supplies cooling components for replacement service, and this radiator is built to match the listed Suzuki Grand Vitara application. Part number 8013136 is also cross-referenced to Bosch 13136 and Spectra Premium CU13136 for the same application.

Related reading

This part fits 9 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersNotes
2017SuzukiGrand Vitara2.4LL4With Outlet Connection On Driver Side; Radiator
2016SuzukiGrand Vitara2.4LL4With Outlet Connection On Driver Side; Radiator
2015SuzukiGrand Vitara2.4LL4With Outlet Connection On Driver Side; Radiator
2014SuzukiGrand Vitara2.4LL4With Outlet Connection On Driver Side; Radiator
2013SuzukiGrand Vitara2.4LL4With Outlet Connection On Driver Side; Radiator
2012SuzukiGrand Vitara2.4LL4With Outlet Connection On Driver Side; Radiator
2011SuzukiGrand Vitara2.4LL4With Outlet Connection On Driver Side; Radiator
2010SuzukiGrand Vitara2.4LL4With Outlet Connection On Driver Side; Radiator
2009SuzukiGrand Vitara2.4LL4With Outlet Connection On Driver Side; Radiator
Directly replaces or cross-references 5 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Bosch — 13136Spectra Premium — CU131361770065J10A13136CUC13136
