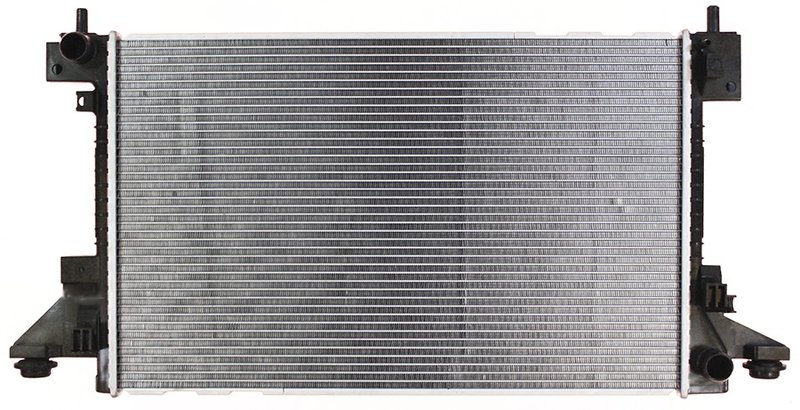

APDI 8013271 Radiator

APDI 8013271 Radiator for Chevrolet and Cadillac

The APDI Radiator 8013271 is a direct-fit cooling system replacement built with a plastic tank and aluminum core construction. It is sized for the listed Chevrolet Volt and Cadillac ELR applications, with 1-3/8 inch inlet and outlet connections for proper coolant flow.

Key Features

• Plastic tank aluminum construction for a lightweight, OE-style radiator design
• Core dimensions: 16-3/8 inch height, 26-3/4 inch width, and 5/8 inch thickness
• Single-row core design for the specified vehicle cooling layout
• 1-3/8 inch inlet and 1-3/8 inch outlet diameters
• Fits 2011-2015 Chevrolet Volt, N/A
• Fits 2014-2016 Cadillac ELR, N/A

Product Details

APDI Radiator 8013271 is engineered for the main radiator position in the Chevrolet Volt and Cadillac ELR applications listed above. The aluminum core and plastic tank construction follow a common OE-style layout for efficient heat transfer and reliable coolant circulation in hybrid and electric-drive cooling systems. This part number, 8013271, also cross-references Bosch 13271 for the same application.

Compatible With 2011-2015 Chevrolet Volt and 2014-2016 Cadillac ELR, this radiator is sized to match the factory cooling package and connection points. If you are replacing a leaking, clogged, or damaged main radiator, APDI 8013271 provides the dimensions and port sizes needed for a proper fit.

Common Issues This Radiator Can Address

• Coolant leaks from a cracked or corroded radiator tank
• Restricted coolant flow caused by internal blockage or debris
• Overheating from reduced heat dissipation through the core
• Physical damage to the radiator from road debris or impact
• Cooling system service needs on a Chevrolet Volt or Cadillac ELR

Installation Notes and Tips

Verify the radiator dimensions, inlet and outlet sizes, and main radiator position before installation. Drain the cooling system, inspect hoses and clamps for wear, and confirm that the replacement unit matches the vehicle’s factory layout for the Chevrolet Volt or Cadillac ELR. After installation, refill with the correct coolant and bleed the system according to the vehicle service procedure.

Quality Assurance

APDI supplies cooling components for vehicle-specific replacement applications, and this radiator is built to match the listed fitment and dimensional requirements for the intended vehicles.
