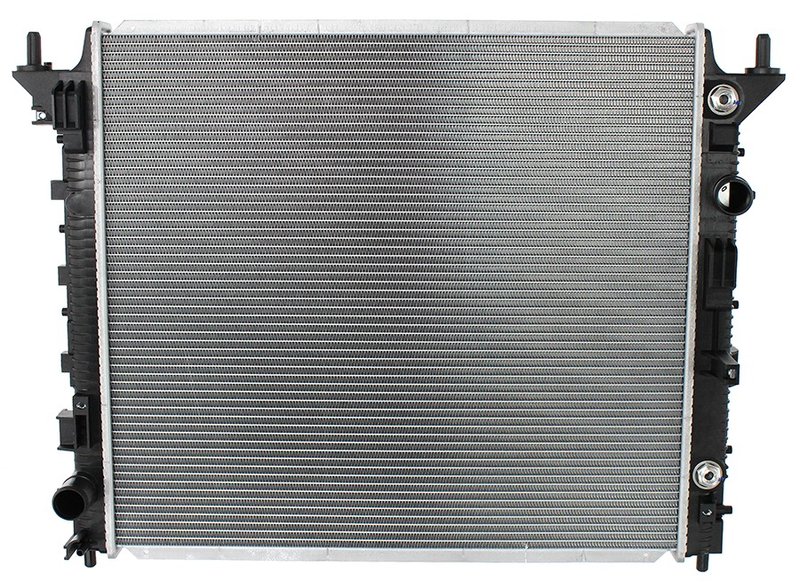

APDI 8013598 Radiator

Radiator for GM Cooling Applications

APDI 8013598 is a radiator built for GM cooling system service in select Chevrolet Camaro and Cadillac ATS applications. It uses a plastic tank and aluminum construction with a 2-row core to support heat transfer in a compact OE-style layout.

For shoppers searching for a radiator for 2016-2020 Chevrolet Camaro or a main radiator for 2016-2018 Cadillac ATS, APDI 8013598 provides the core dimensions and hose connections needed for direct replacement service. The APDI Radiator line focuses on application-specific cooling components for passenger vehicles.

Key Features

• Plastic tank aluminum construction
• 2-row core design
• Core height: 20-1/4 in.
• Core width: 22-5/8 in.
• Core thickness: 1-7/16 in.
• Inlet diameter: 1-3/8 in.
• Outlet diameter: 1-3/8 in.
• Transmission oil cooler: 14-3/4 in.

Detailed Description

APDI 8013598 is a GM radiator engineered around the listed core size, inlet and outlet diameters, and integrated transmission oil cooler length. The plastic tank and aluminum core construction is commonly used in OE-style replacement radiators, helping maintain proper coolant flow and heat exchange in the engine cooling system. This part cross-references BBB Industries 13598 for the same application.

Compatible With 2016-2020 Chevrolet Camaro, radiator, and 2016-2018 Cadillac ATS, main radiator. Use APDI 8013598 when replacing a worn or leaking radiator in these GM vehicles and when matching the specified dimensions is important for fitment.

Common Problems This Radiator Can Address

• Coolant leaks from cracked or aged radiator tanks
• Restricted cooling performance from a damaged core
• Transmission fluid cooling concerns tied to the integrated cooler
• Overheating caused by radiator deterioration
• Fitment issues when replacing a radiator with incorrect dimensions

Installation Notes and Tips

Verify core height, width, thickness, inlet and outlet diameters, and transmission cooler length before installation. Confirm hose routing, mounting points, and cooling line connections against the original radiator. Flush the cooling system and inspect related hoses, clamps, and the thermostat before returning the vehicle to service.

Fits 2016-2020 Chevrolet Camaro, radiator. Fits 2016-2018 Cadillac ATS, main radiator. Part number 8013598 should be matched to the vehicle’s original cooling system configuration before installation.

Quality Assurance

APDI Radiator parts are cataloged for application-specific replacement use in GM cooling systems. Part number 8013598 is listed with OE-style dimensional data and interchange references to support accurate selection for the correct vehicle application.
