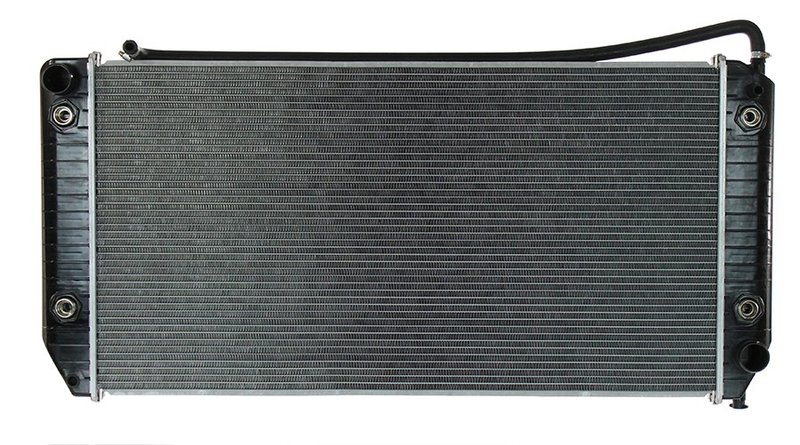

APDI 8067212 Radiator

APDI HD Radiator 8067212 Overview

The APDI HD Radiator 8067212 is engineered to provide reliable cooling performance for heavy-duty vehicles. Designed with a plastic tank and aluminum core, this radiator supports efficient heat dissipation and durability under demanding conditions.

• Construction: Plastic tank with aluminum core
• Core Dimensions: 19-3/4" height, 37-1/4" width, 2-1/4" thickness
• Core Rows: 2 rows for optimized cooling
• Inlet and Outlet Diameter: 1-13/16" each
• Engine and Transmission Oil Cooler Size: 11-1/2" each

HD Radiator Product Line Details

The APDI HD Radiator line focuses on heavy-duty cooling solutions designed to meet the rigorous demands of commercial and industrial vehicles. The HD Radiator series incorporates robust materials and precise core configurations to maintain engine temperatures and support oil cooling systems effectively. The 8067212 model exemplifies this approach with its balanced core size and integrated oil coolers.

Technical Specifications and Features

This radiator features a plastic tank combined with an aluminum core, providing a balance of corrosion resistance and thermal conductivity. The core measures 19-3/4 inches in height, 37-1/4 inches in width, and 2-1/4 inches in thickness, arranged in two rows to enhance cooling efficiency. Both the inlet and outlet ports have a diameter of 1-13/16 inches, compatible with standard heavy-duty cooling systems. Additionally, the radiator includes integrated engine and transmission oil coolers, each measuring 11-1/2 inches, supporting comprehensive temperature management.

Applications and Problem Solving

• Replaces worn or damaged radiators in heavy-duty trucks and commercial vehicles
• Addresses overheating issues caused by inefficient cooling cores
• Supports engine oil and transmission oil cooling to prevent fluid degradation
• Helps maintain optimal engine operating temperatures under heavy load
• Prevents coolant leaks associated with plastic tank radiators

Installation Notes and Tips

Ensure compatibility with your vehicle’s cooling system by verifying inlet and outlet diameters and core dimensions. Properly flush the cooling system before installation to avoid contamination. When installing, check for secure hose connections at the 1-13/16 inch ports and confirm that the engine and transmission oil cooler lines are correctly attached to the 11-1/2 inch coolers. Follow manufacturer torque specifications for mounting hardware to prevent leaks or damage.

Quality Assurance and Warranty

The APDI HD Radiator 8067212 is manufactured to meet industry standards for durability and performance. While specific warranty details are not provided, APDI products typically undergo rigorous quality control to ensure reliability in heavy-duty applications. For warranty information, consult the product documentation or contact the manufacturer directly.
