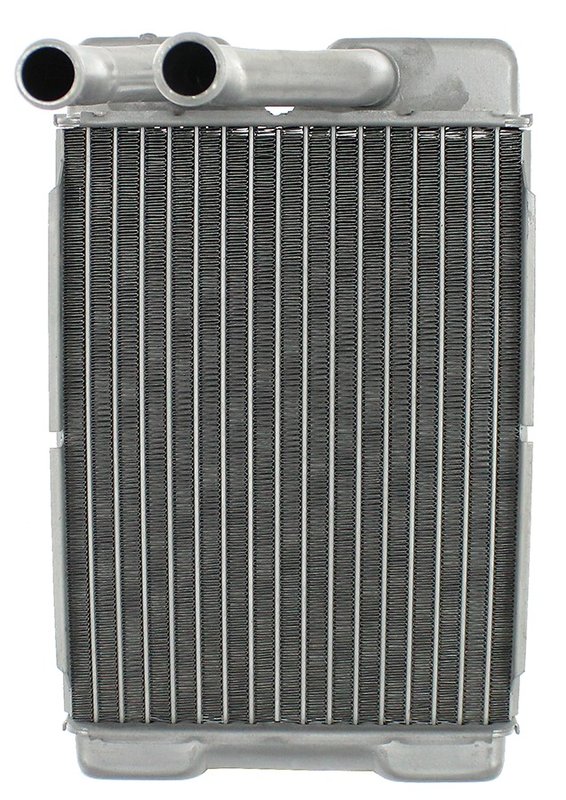

APDI 9010244 HVAC Heater Core

APDI 9010244 Heater Core for Ford Applications

The APDI 9010244 heater core is an aluminum HVAC replacement built for Ford and Mazda truck and SUV applications that use a 5/8 in. inlet and outlet. It is a direct-fit heater core for restoring cabin heat in vehicles such as the Ford Ranger, Ford Explorer, Mazda Navajo, and related models.

Key Features

• Aluminum construction with aluminum core and tank materials
• Core dimensions: 8 in. height, 6 in. width, 2 in. thickness
• 5/8 in. inlet pipe diameter and 5/8 in. outlet pipe diameter
• HVAC heater core replacement for Ford and Mazda applications
• APDI heater core part number 9010244

Product Details

APDI Heater Core 9010244 is built for heater service in Ford and Mazda platforms that share this HVAC layout. The aluminum core and aluminum tank construction support efficient heat transfer while keeping the unit lightweight. This heater core is listed for 1983-1994 Ford Ranger, 1984-1990 Ford Bronco II, 1991-1994 Ford Explorer, 1991-1994 Mazda Navajo, and 1994 Mazda B2300, B3000, and B4000. It is also a fitment match for the same application family referenced by cross-numbered replacements such as Dorman HELP 90001 and Four Seasons 98700A.

Common Repair Uses

• Restores weak or no cabin heat
• Addresses coolant seepage from a leaking heater core
• Replaces a clogged core that restricts coolant flow
• Helps correct uneven defrost performance caused by poor heater output
• Supports HVAC repair on Ford Ranger, Ford Explorer, and Mazda Navajo platforms

Installation Notes

Verify inlet and outlet pipe size, core dimensions, and vehicle fitment before installation. This heater core uses 5/8 in. inlet and outlet connections, so hose and clamp condition should be checked during service. On Ford Ranger and Ford Explorer heater core replacement jobs, inspect the HVAC case, coolant hoses, and related seals before reassembly.

Quality Assurance

APDI supplies HVAC replacement components for service applications, and this heater core is built with aluminum core and tank materials for consistent fit and heat exchange in the listed vehicles. Part number 9010244 should be matched to the confirmed application before installation.
