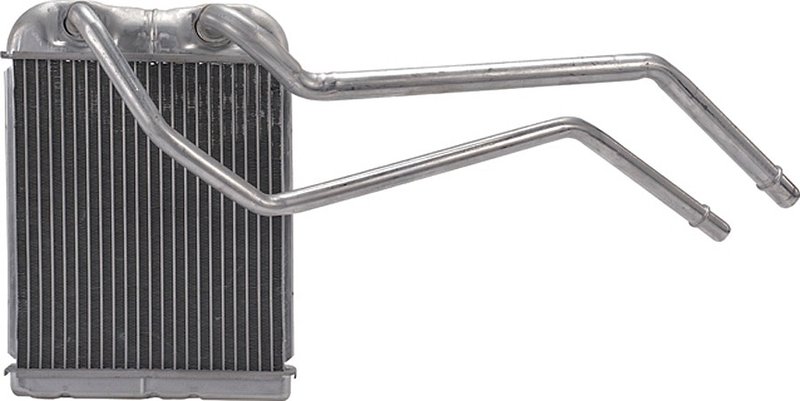

APDI 9010416 HVAC Heater Core - Front

Overview of APDI Heater Core 9010416 for Chevrolet and GMC

The APDI Heater Core 9010416 is designed to provide reliable heating performance for select Chevrolet, GMC, and Oldsmobile vehicles. Engineered with durable aluminum construction, this heater core ensures efficient heat transfer and long-lasting operation in your HVAC system.

• Constructed from corrosion-resistant aluminum for durability
• Core dimensions: 8-1/4 inches height, 7-1/2 inches width, 1 inch thickness
• Aluminum tank material for enhanced heat dissipation
• Inlet pipe diameter: 5/8 inch quick connect
• Outlet pipe diameter: 3/4 inch quick connect
• Compatible with Chevrolet Bravada, GMC Envoy, Envoy XL, Trailblazer, and Trailblazer EXT
• Part number 9010416 for precise identification

Detailed Specifications and Construction

This APDI Heater Core 9010416 features an aluminum core and tank, which provides excellent thermal conductivity and resistance to corrosion. The core measures 8-1/4 inches in height, 7-1/2 inches in width, and 1 inch in thickness, making it a compact yet efficient component for your vehicle's heating system. The inlet and outlet pipes utilize quick connect fittings with diameters of 5/8 inch and 3/4 inch respectively, facilitating straightforward hose connections and secure fluid flow.

About the APDI Heater Core Product Line

The APDI Heater Core product line focuses on delivering reliable HVAC heater cores designed to meet or exceed OEM specifications. This line emphasizes durable materials such as aluminum for both core and tank construction, ensuring consistent heating performance and longevity. The 9010416 model is part of this line, tailored specifically for certain Chevrolet, GMC, and Oldsmobile models to maintain optimal climate control functionality.

Applications and Common Issues Addressed

• Restores proper cabin heating in Chevrolet Bravada and GMC Envoy models
• Resolves coolant leaks within the heater core assembly
• Eliminates reduced heat output caused by clogged or damaged cores
• Prevents fogging and moisture buildup inside the vehicle cabin
• Replaces worn or corroded heater cores in Trailblazer and Trailblazer EXT vehicles

Installation Notes and Tips

When installing the APDI Heater Core 9010416, ensure the cooling system is properly drained before removal of the old heater core. Verify that the quick connect fittings on the inlet and outlet pipes match the vehicle’s hose sizes (5/8 inch inlet, 3/4 inch outlet) for a secure fit. Take care to avoid damage to the aluminum core during installation and confirm all connections are tight to prevent leaks.

Quality Assurance and Warranty

APDI manufactures the Heater Core 9010416 to meet industry standards for durability and performance. The aluminum construction offers resistance to corrosion and wear, contributing to a longer service life. Please refer to APDI’s warranty policy for specific coverage details related to this heater core.
