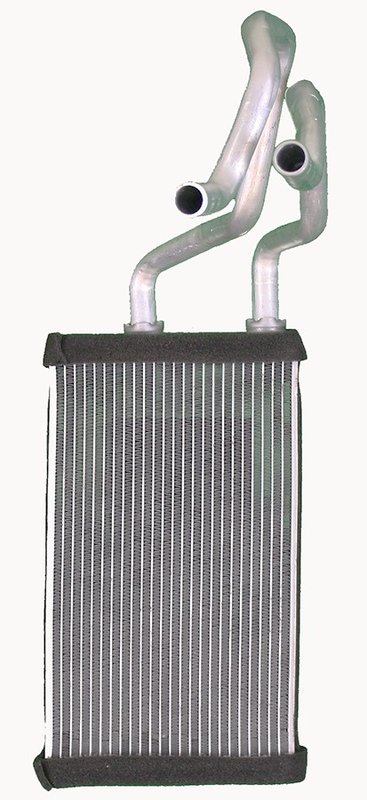

APDI 9010662 HVAC Heater Core

APDI Heater Core for Suzuki Grand Vitara

APDI 9010662 is an aluminum HVAC heater core for the Suzuki Grand Vitara. It matches the factory-style heater core layout with aluminum core and tank construction, plus 5/8-inch inlet and outlet pipe diameters for a direct-fit replacement in supported vehicles.

Key Features

• APDI heater core, part number 9010662
• Fits 2006-2017 Suzuki Grand Vitara, heater core position
• Aluminum core material and aluminum tank material
• Core dimensions: 9-1/4 in. height, 6-1/8 in. width, 1 in. thickness
• 5/8 in. inlet pipe diameter and 5/8 in. outlet pipe diameter
• HVAC heater core replacement for cabin heat restoration

Detailed Description

APDI 9010662 is a heater core built for the Suzuki Grand Vitara HVAC system. The aluminum construction supports efficient heat transfer while keeping the core and tank materials consistent with the original-style design. With a 9-1/4 inch core height, 6-1/8 inch core width, and 1 inch core thickness, this unit is sized for the specified application and uses 5/8 inch inlet and outlet connections. This part number, 9010662, is listed for 2006-2017 Suzuki Grand Vitara models and cross-references Four Seasons 92349 and OSC 98081 for the same application.

What It Helps Fix

• Weak or inconsistent cabin heat in a Suzuki Grand Vitara
• Coolant seepage from a leaking heater core
• Restricted heat output caused by an aging HVAC core
• Fogging or sweet coolant odor inside the vehicle from heater core failure
• Loss of proper defrost performance tied to poor heater output

Installation Notes and Tips

Verify the vehicle year and HVAC configuration before installation. Fits 2006-2017 Suzuki Grand Vitara, heater core. Confirm inlet and outlet pipe diameter match the existing heater hoses, and inspect the cooling system for contamination or debris before placing the new core into service. APDI 9010662 should be installed as a direct replacement in the listed application.

Quality Assurance

APDI supplies HVAC replacement components with application-specific sizing and material selection for service use. This heater core uses aluminum construction throughout the core and tanks to match the listed specifications for the Grand Vitara application.
