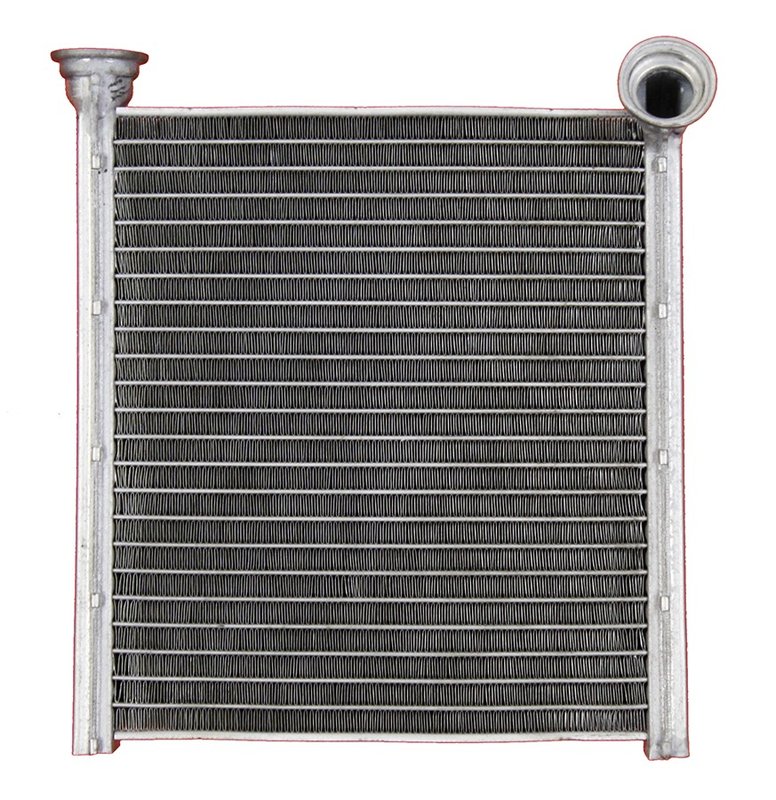

APDI 9010688 HVAC Heater Core
OE Quality 60-Day Returns
APDI
 Heater Core

APDI 9010688 HVAC Heater Core

Brand APDI 9010688
Construction Aluminum
Core Height 6-1/8
Core Thickness 1
Core Width 7-1/4
Core Material Aluminum
Tank Material Aluminum
Outlet Pipe Diameter Oring
Inlet Pipe Diameter Oring
Comments Kit included
Product line Heater Core
Fits Volkswagen · 10 vehicles

Aluminum construction. Lightweight material helps resist corrosion in HVAC service.

Heater core. Transfers heat through the HVAC system for cabin warmth.

Kit included. Includes the components needed for a complete replacement.

Cross-references Four Seasons 92262, Four Seasons 98120 and 5C0819031 for the same application. See all 4.

$69.63Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $69.63
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all HVAC Heater Core options

APDI Heater Core for Volkswagen Jetta

APDI Part Number 9010688 is a heater core for the Volkswagen Jetta, covering model years 2009-2018. Built with aluminum core and tank construction, it is specified for vehicles without automatic temperature control and includes a kit note in the product data.

Key Features

  • Aluminum core material and aluminum tank material
  • Core dimensions: 6-1/8 in. height, 7-1/4 in. width, 1 in. thickness
  • O-ring inlet and outlet pipe connections
  • Direct-fit HVAC heater core for Volkswagen Jetta applications
  • APDI heater core part number 9010688

Product Details

This APDI heater core is built for HVAC service on the Volkswagen Jetta and is listed for 2009-2018 vehicles without automatic temperature control. The aluminum construction supports efficient heat transfer and corrosion resistance in a compact core sized for the Jetta HVAC case. If you are replacing a leaking, restricted, or heat-loss heater core, APDI 9010688 provides the correct fitment profile for the listed application.

APDI’s Heater Core line focuses on replacement HVAC components for passenger vehicles, with this part engineered around the dimensions and connection style needed for the Volkswagen Jetta platform. This part cross-references Four Seasons 92262 and 98120 for the same application.

What It Helps Fix

  • Weak or inconsistent cabin heat
  • Coolant odor inside the vehicle
  • Interior windshield fogging caused by heater core leakage
  • Coolant loss from a damaged HVAC heater core
  • Restricted coolant flow through the heater circuit

Installation Notes and Tips

Fits 2009-2018 Volkswagen Jetta, N/A, without automatic temperature control; kit included. Confirm the vehicle’s HVAC configuration and O-ring connection style before installation. Proper system draining, flushing, and air bleeding are important after heater core replacement to help restore normal heater performance.

Quality Assurance

APDI heater core 9010688 is built as a replacement HVAC component with aluminum construction and application-specific dimensions for the listed Volkswagen Jetta fitment. Verify part number 9010688 against the vehicle’s HVAC setup before ordering.

Related reading

This part fits 10 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2018VolkswagenJettaN/AWithout Automatic Temperature Control; Kit Included; Heater Core
2017VolkswagenJettaN/AWithout Automatic Temperature Control; Kit Included; Heater Core
2016VolkswagenJettaN/AWithout Automatic Temperature Control; Kit Included; Heater Core
2015VolkswagenJettaN/AWithout Automatic Temperature Control; Kit Included; Heater Core
2014VolkswagenJettaN/AWithout Automatic Temperature Control; Kit Included; Heater Core
2013VolkswagenJettaN/AWithout Automatic Temperature Control; Kit Included; Heater Core
2012VolkswagenJettaN/AWithout Automatic Temperature Control; Kit Included; Heater Core
2011VolkswagenJettaN/AWithout Automatic Temperature Control; Kit Included; Heater Core
2010VolkswagenJettaN/AWithout Automatic Temperature Control; Kit Included; Heater Core
2009VolkswagenJettaN/AWithout Automatic Temperature Control; Kit Included; Heater Core
Directly replaces or cross-references 4 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Four Seasons — 92262Four Seasons — 981205C081903118-11969
