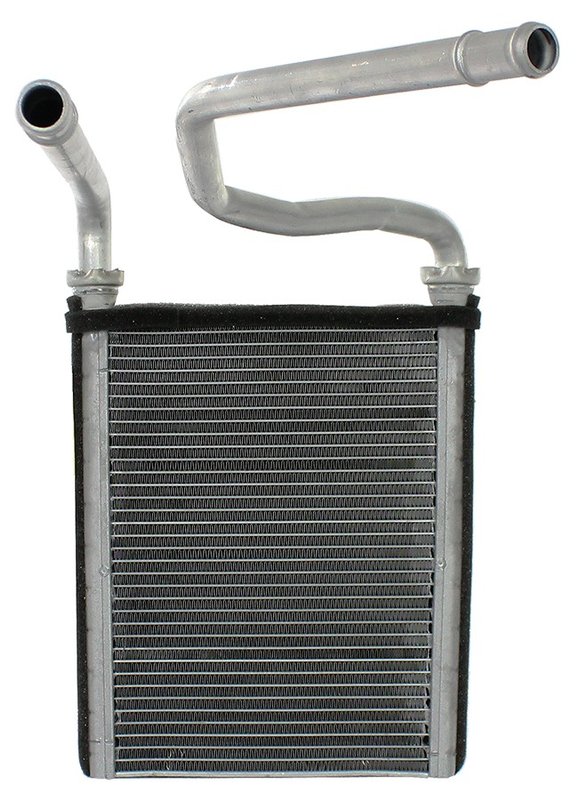

APDI 9010696 HVAC Heater Core
OE Quality 60-Day Returns
APDI
 Heater Core

APDI 9010696 HVAC Heater Core

Brand APDI 9010696
Construction Aluminum
Core Height 6
Core Thickness 3/4
Core Width 8-1/2
Core Material Aluminum
Tank Material Aluminum
Outlet Pipe Diameter 5/8
Inlet Pipe Diameter 5/8
Product line Heater Core
Fits Toyota · 8 vehicles

Aluminum construction. Core and tanks use aluminum for a service-ready HVAC replacement.

Compact core size. 6 x 8-1/2 x 3/4-inch dimensions support proper heater housing fit.

Direct-fit replacement. Built for select Toyota heater core service applications.

Cross-references Dorman - HELP 92170, SKF 99317 and 18-12417 for the same application. See all 4.

$77.06Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $77.06
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all HVAC Heater Core options

Heater Core Overview

APDI heater core 9010696 is a direct-fit HVAC heater core for select Toyota applications. It uses an aluminum construction with aluminum tanks and 5/8-inch inlet and outlet pipes for a service-ready replacement.

Key Features

  • Aluminum core and tank construction
  • 5/8-inch inlet and outlet pipe diameters
  • Core dimensions: 6 in. height, 8-1/2 in. width, 3/4 in. thickness
  • APDI heater core 9010696 for HVAC service replacement

Detailed Description

This APDI heater core 9010696 is built for Toyota Corolla and Toyota Matrix heater core replacement applications from 2005-2008. The aluminum core and aluminum tank design supports efficient heat transfer in the HVAC system, while the compact core size and matching pipe diameters help maintain proper fitment in the heater housing. For buyers searching for a Toyota Corolla heater core or Toyota Matrix heater core, this part number 9010696 provides a straightforward replacement option.

This part cross-references Dorman - HELP (e.g., 92170) for the same application.

What It Is Used For

  • Restoring cabin heat output when the original heater core is restricted or leaking
  • Replacing a damaged aluminum heater core in the HVAC system
  • Addressing coolant odor or moisture caused by heater core failure
  • Supporting proper heater performance in Toyota Corolla and Toyota Matrix models

Installation Notes and Tips

Verify core dimensions and inlet/outlet pipe size before installation. Confirm fitment for your Toyota Corolla or Toyota Matrix by matching the vehicle year and HVAC configuration to APDI 9010696. Inspect hoses, clamps, and surrounding HVAC components during service to reduce repeat repairs.

Quality Assurance

APDI heater core 9010696 is specified with aluminum construction and aluminum tanks for consistent replacement quality in HVAC service.

Related reading

This part fits 8 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelNotes
2008ToyotaCorollaHeater Core
2008ToyotaMatrixHeater Core
2007ToyotaCorollaHeater Core
2007ToyotaMatrixHeater Core
2006ToyotaCorollaHeater Core
2006ToyotaMatrixHeater Core
2005ToyotaCorollaHeater Core
2005ToyotaMatrixHeater Core
Directly replaces or cross-references 4 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Dorman - HELP — 92170SKF — 9931718-124178710702200
