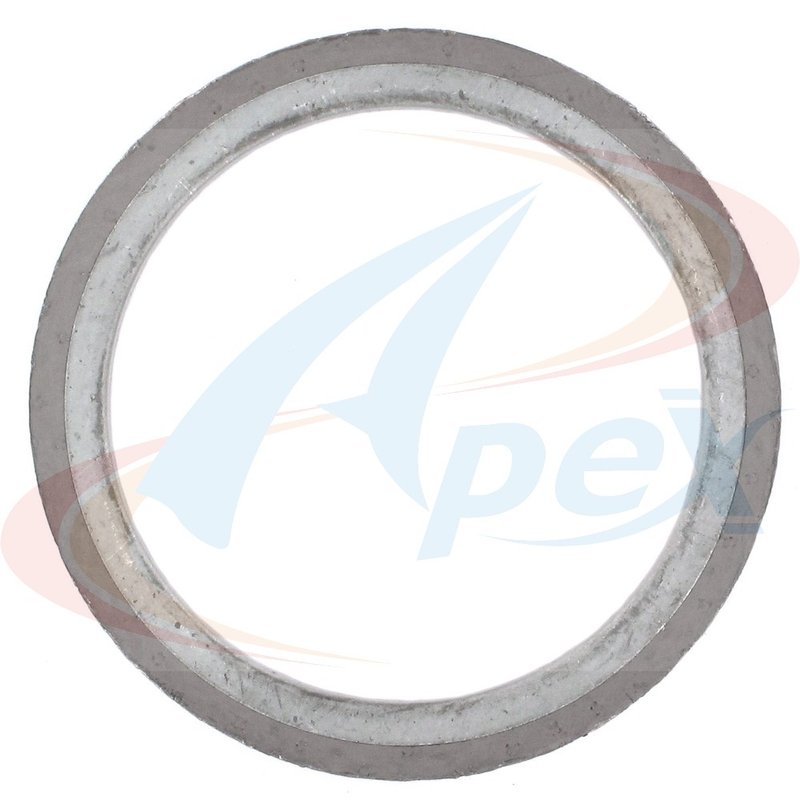

Apex AEG1003 Exhaust Pipe Flange Gasket - Front

Brand Apex AEG1003
Position Front
Fits Lexus, Mazda, and Toyota · 79 vehicles

Exhaust pipe flange gasket. Seals the joint between exhaust pipe flanges.

$10.13Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $10.13
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Exhaust Pipe Flange Gasket for Toyota and Mazda

The Apex AEG1003 exhaust pipe flange gasket is a direct-fit sealing component for select Toyota, Lexus, and Mazda exhaust connections. It is used at pipe-to-manifold, converter, flange, and ring locations across a wide range of applications, including Toyota Camry, Celica, Tacoma, 4Runner, Corolla, MR2, Pickup, T100, RAV4, Lexus ES250, and Mazda 6.

Key Features

  • Exhaust pipe flange gasket for sealing exhaust joints
  • Fits select Toyota, Lexus, and Mazda applications
  • Used at converter, flange, ring, and pipe-to-manifold connections
  • Coverage includes 1978-2008 model years
  • Part number AEG1003 for catalog lookup and ordering

Detailed Description

Apex AEG1003 is an exhaust pipe flange gasket built for sealing the joint between exhaust components where leakage can occur under heat and vibration. It is listed for multiple Toyota exhaust configurations, including 1992-2001 Toyota Camry pipe to manifold, 1995-1998 Toyota Tacoma converter, 1990-1995 Toyota 4Runner front converter, and 1987-1989 Toyota Celica flange applications. It also covers select Mazda 6 converter applications from 2003-2008, including 2006-2008 Mazda 6 converter exc. Calif.

This part number, AEG1003, also applies to select Lexus ES250 ring and Toyota RAV4 flange locations, making it a useful catalog match when replacing a worn exhaust seal on older Asian vehicles. Use the vehicle-specific fitment listing to confirm the exact year, model, and exhaust position before ordering.

Common Uses

  • Replacing a leaking exhaust pipe flange gasket
  • Sealing a pipe-to-manifold exhaust joint
  • Restoring a converter-to-pipe connection
  • Addressing exhaust noise from a failed flange seal
  • Correcting exhaust odor from a joint leak

Installation Notes

Match the gasket to the exact exhaust location shown in the fitment data, such as front converter, pipe to manifold, flange, or ring. Inspect the mating surfaces for warping, corrosion, or carbon tracking before installation, and clean both sides of the joint so the gasket can seat properly. Confirm the application by year, make, model, and notes; for example, this part fits 2006-2008 Mazda 6, converter, exc. Calif., and fits 1992-2001 Toyota Camry, pipe to manifold.

Quality Assurance

Apex exhaust sealing components are cataloged for specific OE-style applications, and AEG1003 is listed across 79 vehicle fitments for accurate replacement selection. This part cross-references no additional part numbers in the provided data.

This part fits 79 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelDrive TypeTransmissionLitersCylindersPositionNotes
2008Mazda6———2.3LL4N/AConverter; exc. Calif.
2007Mazda6i——2.3LL4N/AConverter; exc. Calif.
2006Mazda6i——2.3LL4N/AConverter; exc. Calif.
2005Mazda6———2.3LL4N/AConverter
2004Mazda6———2.3LL4N/AConverter
2003Mazda6———2.3LL4N/AConverter
2001ToyotaCamry———2.2LL4N/APipe to manifold
2001ToyotaSolara———2.2LL4N/APipe to manifold
2000ToyotaCamry———2.2LL4N/APipe to manifold
2000ToyotaSolara———2.2LL4N/APipe to manifold
1999ToyotaCamry———2.2LL4N/APipe to manifold
1999ToyotaCelica———2.2LL4N/APipe to manifold
1999ToyotaSolara———2.2LL4N/APipe to manifold
1998ToyotaCamry———2.2LL4N/APipe to manifold
1998ToyotaCelica———2.2LL4N/APipe to manifold
1998ToyotaTacoma———2.4LL4N/AConverter
1997ToyotaCamry———2.2LL4N/APipe to manifold
1997ToyotaCelica———1.8LL4FrontConverter
1997ToyotaCorolla———1.6LL4FrontConverter; Calif. Only
1997ToyotaRAV4———2.0LL4N/AFlange
1997ToyotaTacoma———2.4LL4N/AConverter
1996ToyotaCamry———2.2LL4N/APipe to manifold
1996ToyotaCelica———1.8LL4FrontConverter
1996ToyotaCorolla———1.6LL4FrontConverter; Calif. Only
1996ToyotaRAV4———2.0LL4N/AFlange
1996ToyotaTacoma———2.4LL4N/AConverter
1995Toyota4Runner—RWD—2.4LL4FrontConverter
1995ToyotaCamry———2.2LL4N/APipe to manifold
1995ToyotaCelica———1.8LL4FrontConverter
1995ToyotaCorolla———1.8LL4FrontConverter
1995ToyotaMR2———2.2LL4N/APipe to manifold
1995ToyotaPickup——Manual2.4LL4N/AFlange
1995ToyotaTacoma———2.4LL4N/AConverter
1994Toyota4Runner—RWD—2.4LL4FrontConverter
1994ToyotaCamry———2.2LL4N/APipe to manifold
1994ToyotaCelica———2.2LL4N/APipe to manifold
1994ToyotaMR2———2.2LL4N/APipe to manifold
1994ToyotaPickup——Manual2.4LL4N/AFlange
1994ToyotaT100———3.0LV6N/APipe to manifold
1993Toyota4Runner—RWD—2.4LL4FrontConverter
1993ToyotaCamry———2.2LL4N/APipe to manifold
1993ToyotaCelica———1.6LL4FrontConverter
1993ToyotaMR2———2.2LL4N/APipe to manifold
1993ToyotaPickup——Manual2.4LL4N/AFlange
1993ToyotaT100———3.0LV6N/APipe to manifold
1992Toyota4Runner—RWD—2.4LL4FrontConverter
1992ToyotaCamry———2.2LL4N/APipe to manifold
1992ToyotaCelica———1.6LL4FrontConverter
1992ToyotaMR2———2.2LL4N/APipe to manifold
1992ToyotaPickup——Manual2.4LL4N/AFlange
1991LexusES250———2.5LV6N/ARing
1991Toyota4Runner—RWD—2.4LL4FrontConverter
1991ToyotaCamry———2.0LL4N/AFlange
1991ToyotaCelica———1.6LL4FrontConverter
1991ToyotaMR2———2.2LL4N/APipe to manifold
1991ToyotaPickup—RWD—2.4LL4FrontConverter
1990LexusES250———2.5LV6N/ARing
1990Toyota4Runner—RWD—2.4LL4FrontConverter
1990ToyotaCamry———2.0LL4N/AFlange
1990ToyotaCelica———1.6LL4FrontConverter
1990ToyotaPickup—RWD—2.4LL4FrontConverter
1989Toyota4Runner———3.0LV6N/APipe to manifold
1989ToyotaCamry———2.0LL4N/AFlange
1989ToyotaCelica———2.0LL4N/AFlange
1989ToyotaPickup—RWD—2.4LL4FrontConverter
1988Toyota4Runner———3.0LV6N/APipe to manifold
1988ToyotaCamry———2.0LL4N/AFlange
1988ToyotaCelica———2.0LL4N/AFlange
1988ToyotaPickup—RWD—2.4LL4FrontConverter
1987ToyotaCamry———2.0LL4N/AFlange
1987ToyotaCelica———2.0LL4N/AFlange
1987ToyotaPickup—RWD—2.4LL4FrontConverter
1986ToyotaPickup—RWD—2.4LL4FrontConverter
1985ToyotaPickup—RWD—2.4LL4FrontConverter
1984ToyotaPickup—RWD—2.4LL4FrontConverter
1983ToyotaPickup—RWD—2.4LL4FrontConverter
1980ToyotaPickup———2.2LL4FrontConverter
1979ToyotaPickup———2.2LL4FrontConverter
1978ToyotaPickup———2.2LL4FrontConverter; FR 08/01/78
