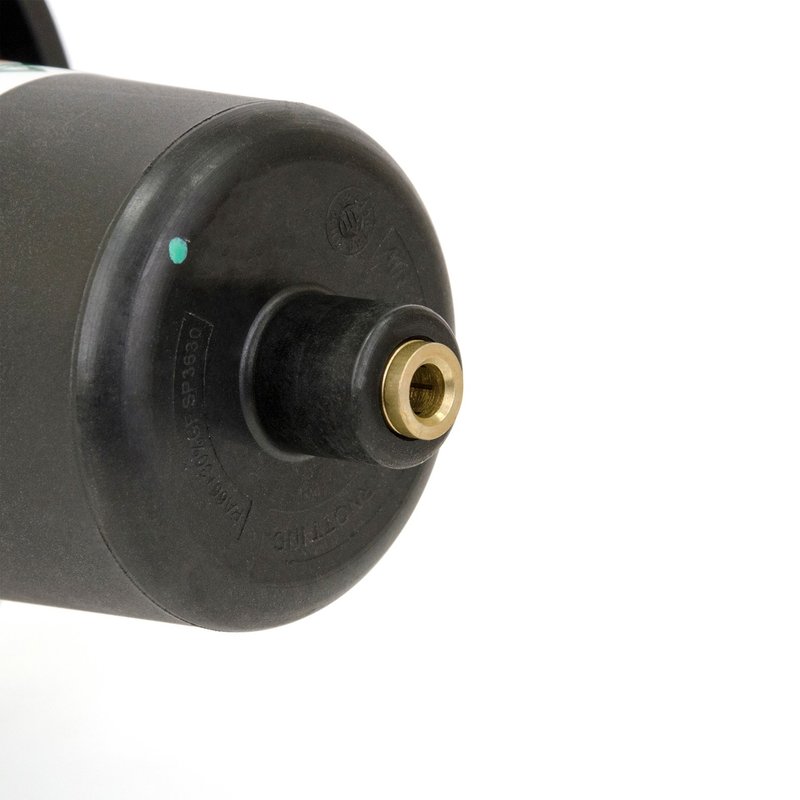

Arnott A-2691 Air Suspension Spring - Front

Arnott A-2691 Front Air Spring

Arnott A-2691 is a front air suspension spring for the 1995-2002 Land Rover Range Rover. It uses a Generation III design with a CNC-machined solid piston made from 6061-T6 aluminum and a longer air bladder for increased travel. This front air suspension spring is built for Range Rover owners who want a direct replacement with updated suspension behavior for road and off-road use.

Key Features

• Front air suspension spring for Land Rover Range Rover applications
• Generation III design with a solid CNC-machined piston
• 6061-T6 aircraft-quality aluminum piston construction
• Longer air spring bladder for extended travel
• Rubber bellows with black sleeve-style construction
• Upper mount type: stud; lower mount type: base cup
• Standard grade replacement part
• Arnott A-2691 part number for ordering and cross-reference

Detailed Description

Arnott A-2691 is engineered for the front suspension of the Land Rover Range Rover and is listed for 1995-2002 models. The Generation III air spring design uses a solid aluminum piston to help deliver a lower spring rate for off-road driving and a higher spring rate in highway mode. The extended bladder design adds travel compared with the factory OE Land Rover air spring layout, supporting more controlled suspension movement in changing terrain. This part cross-references Land Rover ANR4684 and REB101740 for the same application. Arnott recommends replacing Range Rover air springs in pairs to maintain balanced suspension performance.

Common Issues This Part Can Address

• Front air spring leakage causing ride-height loss
• Uneven stance or sagging at the front of the Range Rover
• Harsh ride from a worn OE air suspension spring
• Reduced suspension travel from aging bellows or piston wear
• Handling inconsistency between highway driving and off-road use

Installation Notes and Tips

Fits 1995-2002 Land Rover Range Rover, front. Confirm the upper stud mount and lower base cup mount before installation. Inspect the air lines, fittings, and surrounding suspension components for wear or contamination before replacing the spring. Because this is a front air suspension spring, proper system depressurization and calibration procedures should be followed during service. Arnott A-2691 is a direct-fit replacement for the listed Range Rover front position.

Quality Assurance

Arnott’s NEW product line focuses on updated replacement suspension components with revised internal design details. A-2691 uses a rubber bellows construction and a machined aluminum piston to support consistent fitment and suspension response in the listed Land Rover Range Rover applications.
