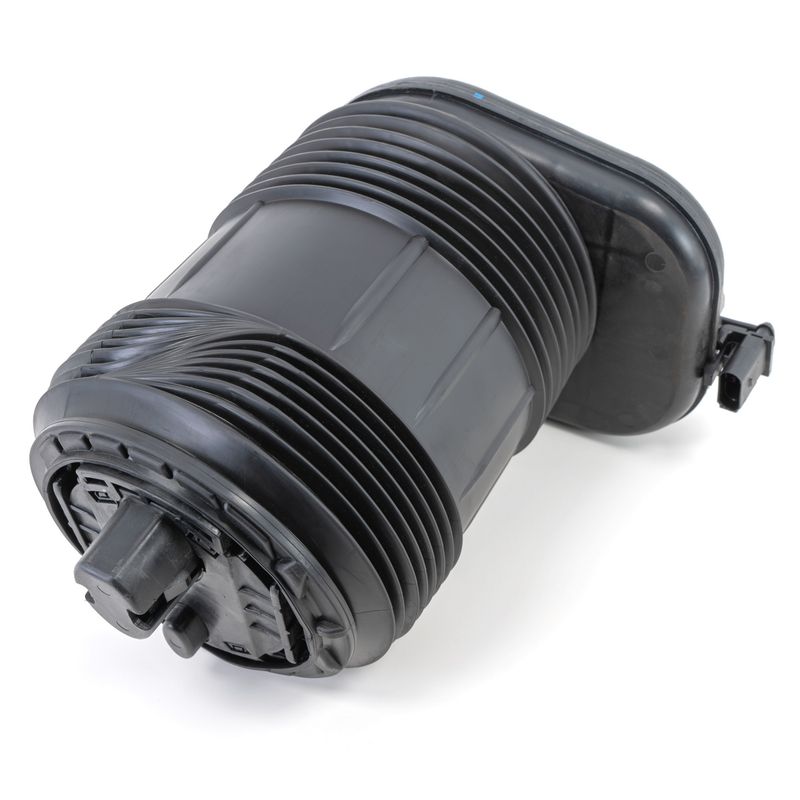

Arnott A-5771 Air Suspension Spring - Rear Right
| Brand | Arnott A-5771 |
|---|---|
| Position | Rear Right |
| Maximum Height | 10.75 |
| Maximum Height | 273.05 |
| Maximum Load Rating | 1600 |
| Minimum Height | 241.3 |
| Minimum Height | 9.5 |
| Mounting Hardware Included | No |
| Bellows Material | Rubber |
| Grade Type | Premium |
| Mounting Stud Quantity | 1 |
| Bellows Color | Black |
| Bellows Material Thickness | 2.2 |
| Piston Material | Plastic |
| 9719 | Rolling lobe |
| 9720 | 0 |
| 9721 | 0 |
| 9722 | 91.6 |
| 9723 | 92 |
| Bellows Material Thickness | 0.0866141732283465 |
| Bottom Plate Diameter | 3.62204724409449 |
| Maximum Working Pressure | 60 |
| Top Plate Diameter | 3.60629921259843 |
| Fits | Porsche · 5 vehicles |
Premium construction. Built as a replacement air spring with rubber bellows and a plastic piston.
Rolling lobe design. Supports controlled suspension movement and consistent air spring operation.
Validated development. Engineered in Arnott's R&D center and tested in lab and road conditions.
Cross-references 9Y0616002, 9Y0616002B and 9Y0616002C for the same application. See all 4.
Air Suspension Spring Overview
Arnott A-5771 is a premium air suspension spring built for the rear right position on select Porsche Cayenne models. It combines a rolling lobe design with a rubber bellows and plastic piston for controlled ride support and consistent air spring operation.
Key Features
- Rolling lobe air spring design for suspension support and ride control
- Rubber bellows with black finish and premium-grade construction
- Plastic piston and single mounting stud design
- Maximum working pressure of 60 and load rating of 1600
- Fits 2019-2023 Porsche Cayenne, rear right
Detailed Product Information
This Arnott air suspension spring is engineered for the rear right suspension position on 2019-2023 Porsche Cayenne applications. The A-5771 uses a rolling lobe layout, rubber bellows, and a plastic piston to deliver the air spring function expected in a modern air suspension system. With a maximum height of 10.75 inches and a minimum height of 9.5 inches, it is built around the dimensional requirements of the application. This part cross-references Porsche numbers 9Y0616002 and 9Y3616002 for the same application.
Arnott develops its air springs in a dedicated research and development environment and validates them through laboratory stress testing and real-world road evaluation. The A-5771 reflects that process with premium-grade construction and application-specific dimensions for Porsche Cayenne suspension service. Part number A-5771 is also useful when matching the correct replacement during diagnosis or ordering.
Common Problems This Part Can Address
- Rear suspension sag on air-equipped vehicles
- Uneven ride height at the rear right corner
- Loss of air pressure in the suspension spring
- Harsh or inconsistent ride quality from a worn air spring
- Warning lights related to suspension height control
Installation Notes and Quality Assurance
Install the air spring in the specified rear right position and verify that the system is depressurized before service. Confirm that the mounting points, air connections, and ride-height settings match the vehicle application before returning the vehicle to service. Mounting hardware is not included.
Arnott subjects its air springs to laboratory stress testing and road evaluation during development. Part number A-5771 is built as a premium replacement air suspension spring for the specified Porsche Cayenne application.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Porsche | Cayenne | Rear Right | — |
| 2022 | Porsche | Cayenne | Rear Right | — |
| 2021 | Porsche | Cayenne | Rear Right | — |
| 2020 | Porsche | Cayenne | Rear Right | — |
| 2019 | Porsche | Cayenne | Rear Right | — |
