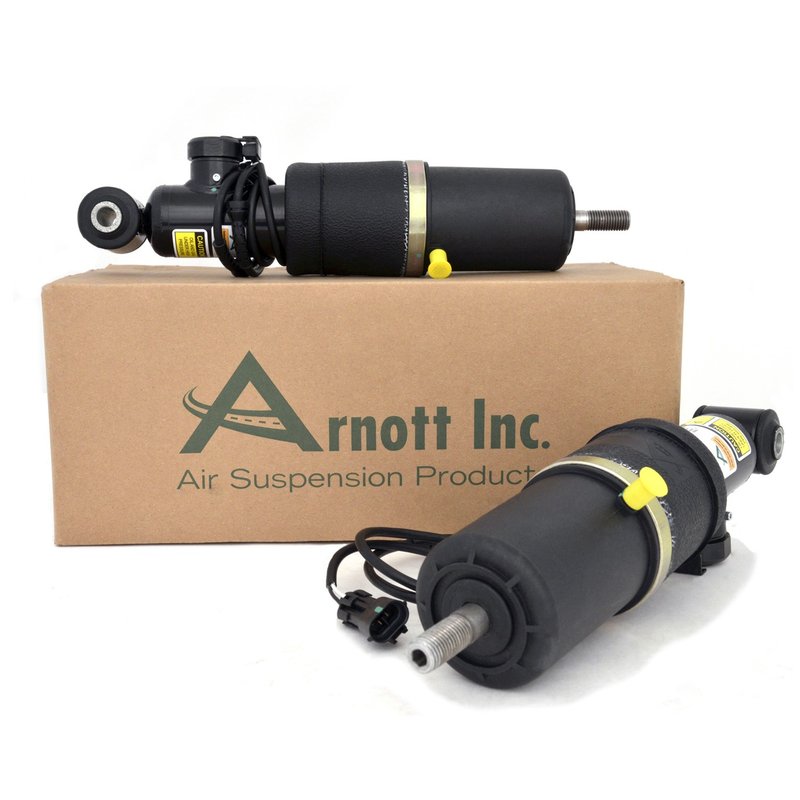

Arnott AS-2163 Air Suspension Shock - Rear

Rear Air Shock Conversion for Cadillac

Arnott AS-2163 is a rear air shock absorber kit that replaces the vehicle’s electronic rear shocks with a passive air shock setup while keeping the rear air leveling system operational. It is built for direct plug-in integration with the vehicle computer, making it a practical solution for Cadillac DeVille, Eldorado, and Seville rear suspension service.

Key Features

• Rear air shock absorber with passive air shock design
• Maintains rear air leveling system function
• Direct plug-in connection to the vehicle computer system
• Twin-tube construction with hydraulic internal damper
• Rubber air bladder with progressive spring rate
• Spring-assisted air ride suspension design
• Lower loop/eyelet mount and upper stud mount
• Extended length: 521 mm; compressed length: 387.8 mm; travel length: 133.2 mm
• Arnott NEW product line for rear suspension repair

Detailed Description

Arnott AS-2163 is engineered for rear suspension applications that need a dependable replacement for electronic shocks without altering the vehicle’s control system. The passive air shock design works with the existing rear air leveling setup, and the plug-in electrical connection allows the shock to communicate with the vehicle computer without modifications. This part number is a direct-fit rear air shock absorber for 1993-1996 Cadillac Eldorado, 1993-1996 Cadillac Seville, and 1994-1996 Cadillac DeVille rear applications.

The construction includes a twin-tube body, hydraulic damping, rubber air bladder material, and progressive spring rate tuning for controlled rear ride support. Arnott AS-2163 also uses spring isolators and a lower mounting isolator for proper fitment at the rear suspension mounting points. This part cross-references Cadillac 22400526 for the same application.

What This Part Helps Address

• Electronic rear shock failure codes
• Loss of rear ride control from worn air shocks
• Rear suspension sag or uneven ride height
• Need to retain factory air leveling operation
• Replacement needs for aging Cadillac rear suspension components

Installation Notes and Tips

Compatible With 1993-1996 Cadillac Eldorado, rear; 1993-1996 Cadillac Seville, rear; and 1994-1996 Cadillac DeVille, rear. Verify the upper stud and lower loop/eyelet mounting points before installation. The plug-in design supports direct electrical connection, and the vehicle’s rear air leveling system remains active after replacement. AS-2163 is a rear-position application only and should be matched to the vehicle’s original suspension configuration.

Quality Assurance

Arnott’s NEW line focuses on replacement suspension components built for direct-fit service and system compatibility. AS-2163 is backed by a Limited Lifetime Warranty.
