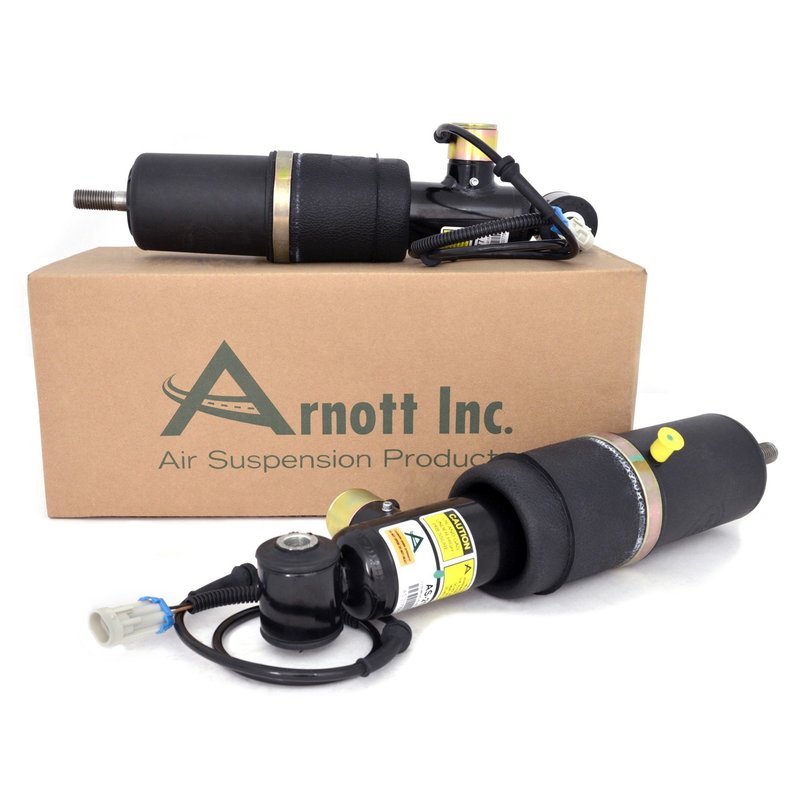

Arnott AS-2177 Air Suspension Shock - Rear

Rear Air Shock Absorber for Cadillac Ride Control

Arnott AS-2177 is a rear air shock absorber kit for select Cadillac applications with rear air leveling systems. It restores rear suspension function with a direct-fit design and keeps the vehicle’s rear air leveling system operational without modifications.

Built for 1997-2002 Cadillac Eldorado, 1997-1999 Cadillac DeVille, and 1997 Cadillac Seville, this rear air shock absorber is a practical OE-style replacement for passive rear shock applications. The Arnott NEW product line focuses on direct replacement suspension components for vehicles that need factory-style ride control.

Key Features

• Rear air shock absorber for Cadillac rear suspension applications
• Direct-fit installation with no vehicle modifications required
• Air-adjustable design with integrated air bladder and rubber air bladder material
• Twin-tube construction with hydraulic internal damper
• Progressive spring rate and spring-assisted design for controlled rear ride support
• Lower loop/eyelet mount and upper stud mount
• Black boot and heavy-duty crimping rings
• Fits vehicles not equipped with Road Sensing Suspension
• Includes rear shock absorber hardware configuration for factory-style replacement use

Detailed Description

Arnott AS-2177 is engineered as a rear air shock absorber replacement that maintains the vehicle’s rear air leveling system. It uses a twin-tube, hydraulic internal damper with an air bladder and progressive spring rate to support rear suspension movement while preserving factory ride characteristics. The direct-fit design helps simplify replacement on Cadillac Eldorado, DeVille, and Seville models listed below.

This part cross-references Cadillac 22064727 for the same application. The AS-2177 part number is also useful when searching for a rear air shock absorber for 1997-2002 Cadillac Eldorado, 1997-1999 Cadillac DeVille, or 1997 Cadillac Seville with passive rear suspension.

What It Helps Address

• Rear suspension sag or uneven ride height
• Loss of rear air leveling function
• Worn or leaking rear air shock absorber performance
• Harsh rear ride caused by aging suspension components
• Ride control issues on passive rear shock applications

Installation Notes and Tips

Compatible With 1997-2002 Cadillac Eldorado, rear; 1997-1999 Cadillac DeVille, rear; and 1997 Cadillac Seville, rear. This kit is for vehicles not equipped with Road Sensing Suspension. Verify the original mount style and suspension configuration before installation. The upper mount uses a stud design and the lower mount uses a loop/eyelet design.

AS-2177 is air adjustable and uses spring isolators and a lower mounting isolator. Mounting hardware is not listed as included, so confirm reuse or replacement needs during service. Because this application is tied to rear air leveling, inspect related air suspension components and electrical bypass requirements during diagnosis.

Quality Assurance

Arnott backs this NEW rear air shock kit with a Limited Lifetime Warranty. The AS-2177 is built as a direct replacement for factory-style rear air suspension service on supported Cadillac models.
