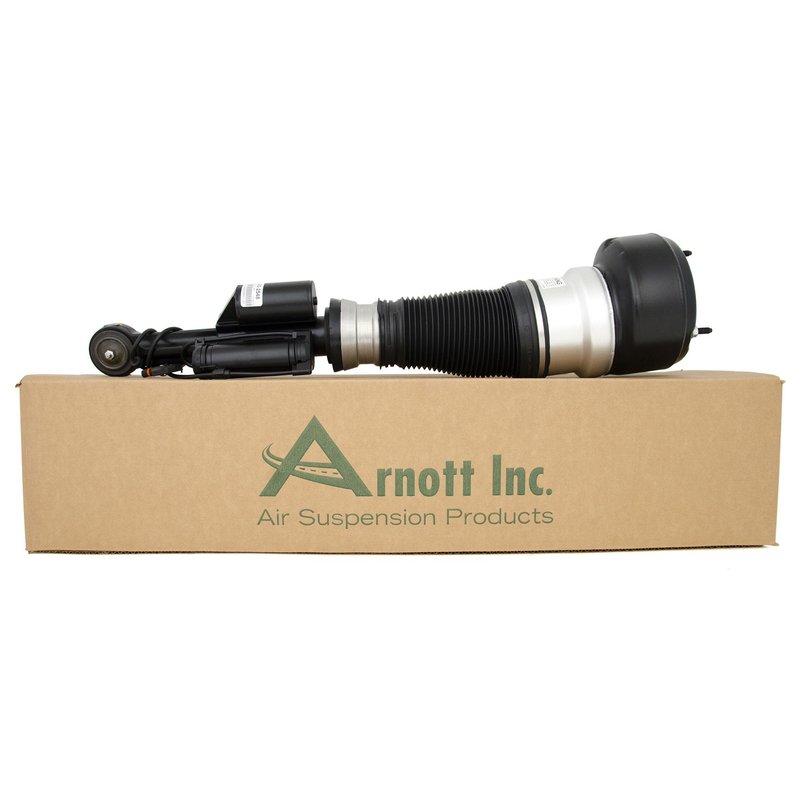

Arnott AS-2548 Air Suspension Strut - Front Left

Remanufactured Front Air Strut for Mercedes-Benz

The Arnott AS-2548 is a remanufactured front left air suspension strut for select Mercedes-Benz CL550, S350, S450, S500, and S550 models. It combines OE-style fitment with a rebuilt design and a new Continental ContiTech air sleeve for dependable ride control and height adjustment.

Arnott’s REMANUFACTURED line focuses on restoring factory suspension function with updated components where it matters most. For drivers searching for a Mercedes-Benz S550 front left air suspension strut or a remanufactured air strut for a CL550, AS-2548 provides a direct replacement option with OE-style mounting and air suspension operation.

Key Features

• Remanufactured OE front air strut for Mercedes-Benz applications
• New air sleeve manufactured by Continental ContiTech
• Air adjustable and air ride suspension design
• Adjustable damping with hydraulic internal damper
• Progressive spring rate and shock spring assist
• Gas charged construction
• Boot included with black boot color
• Mounting hardware included
• Spring isolators included
• Upper mounting isolator included
• Lower mount type: bolt; upper mount type: stud

Detailed Description

Arnott AS-2548 is built as a remanufactured front air suspension strut for the front left position on 2007-2013 Mercedes-Benz S550, 2008-2011 Mercedes-Benz S450, 2009-2014 Mercedes-Benz CL550, 2012-2013 Mercedes-Benz S350, and 2013 Mercedes-Benz S500. It is engineered to restore air suspension height control and damping response while using a new Continental ContiTech air sleeve for the air spring section. The design includes adjustable damping, a progressive spring rate, and a hydraulic internal damper to support factory-style ride behavior.

This part cross-references Mercedes-Benz OE numbers 2213200438 and 2213201738 for the same application.

Common Suspension Issues Addressed

• Front-left corner sagging or uneven ride height
• Air spring leakage from a worn strut bladder
• Excessive bouncing or reduced damping control
• Suspension warning lights related to air pressure loss
• Ride quality changes caused by worn OE air strut components

Installation Notes and Tips

Install AS-2548 at the front left position only on the listed Mercedes-Benz models. Verify the vehicle’s suspension code, connector layout, and mounting style before installation. Because this is an air suspension strut, the system should be depressurized and the vehicle supported correctly before removal. After installation, perform a ride-height check and clear any suspension fault codes if required.

Quality Assurance

Arnott’s REMANUFACTURED suspension line is built around rebuilt OE components with updated wear items where specified. AS-2548 is backed by a Limited Lifetime Warranty.
