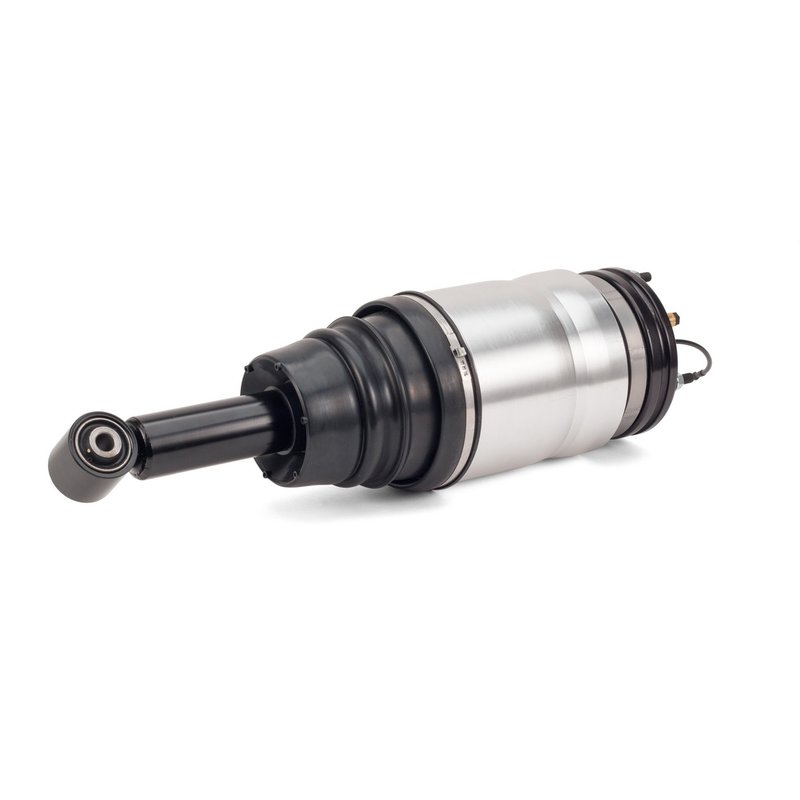

Arnott AS-2762 Air Suspension Strut - Rear
| Brand | Arnott AS-2762 |
|---|---|
| Position | Rear |
| Product line | NEW |
| Fits | Land Rover · 4 vehicles |
New, not remanufactured. An aftermarket air suspension strut assembled in the USA.
Air-adjustable design. Lets you fine-tune ride height and suspension response.
Progressive spring rate. Delivers a more controlled, responsive ride feel.
Cross-references Land Rover LR015018, Land Rover LR015020 and Land Rover LR020000 for the same application. See all 8.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Rear Air Strut for Range Rover Sport
Arnott AS-2762 is a new rear air suspension strut for the 2010-2013 Land Rover Range Rover Sport Supercharged models. It is built as a new aftermarket replacement, not remanufactured, with a custom-tuned shock absorber and a ContiTech multi-ply air spring bladder.
Key Features
- Fits 2010-2013 Land Rover Range Rover Sport, rear
- New air suspension strut assembly, not remanufactured
- Custom-made and tuned shock absorber
- ContiTech multi-ply air spring bladder
- Heavy-duty crimping rings, new seals, air fitting, and dust cover
- Air adjustable and air ride suspension design
- Gas charged with hydraulic internal damper
- Progressive spring rate for controlled ride response
- Mounting hardware included
Product Details
Arnott AS-2762 is engineered for the rear suspension on the 2010-2013 Land Rover Range Rover Sport Supercharged application. This Arnott NEW line strut is assembled in the USA and uses a loop/eyelet lower mount, stud upper mount, and a black boot with spring isolators and upper mounting isolator included. The design combines an air spring bladder with a tuned shock body to restore rear ride height control and suspension response on vehicles equipped with Continuous Variable Damper (CVD) and a suspension ride height sensor. This part cross-references Land Rover OE numbers such as LR015018 and LR020000 for the same application. AS-2762 is a direct-fit rear air suspension strut for Range Rover Sport owners replacing a worn or leaking unit.
Common Problems This Part Addresses
- Rear corner sag or uneven ride height
- Air spring leaks causing compressor cycling
- Loss of damping control in the rear suspension
- Noise from worn seals, bladder, or mounting components
- Ride quality issues on air ride-equipped Range Rover Sport models
Installation Notes
Verify vehicle equipment before ordering: this rear strut is for 2010-2013 Land Rover Range Rover Sport Supercharged models with CVD and rear ride height sensor setup. Confirm the upper stud and lower loop/eyelet mounting points match the original unit, and inspect the air line connection and surrounding suspension components during replacement. After installation, perform a ride height check and system calibration if required by the vehicle service procedure.
Quality Assurance
Arnott AS-2762 is a new assembly designed and assembled in the USA with a ContiTech air spring bladder, heavy-duty crimping rings, new seals, and a Limited Lifetime Warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2013 | Land Rover | Range Rover Sport | Rear | Suspension Ride Height Sensor for vehicles with Continuous Variable Damper (CVD).; NEW |
| 2012 | Land Rover | Range Rover Sport | Rear | Suspension Ride Height Sensor for vehicles with Continuous Variable Damper (CVD).; NEW |
| 2011 | Land Rover | Range Rover Sport | Rear | Suspension Ride Height Sensor for vehicles with Continuous Variable Damper (CVD).; NEW |
| 2010 | Land Rover | Range Rover Sport | Rear | Suspension Ride Height Sensor for vehicles with Continuous Variable Damper (CVD).; NEW |
| No rows match your filter. | ||||
