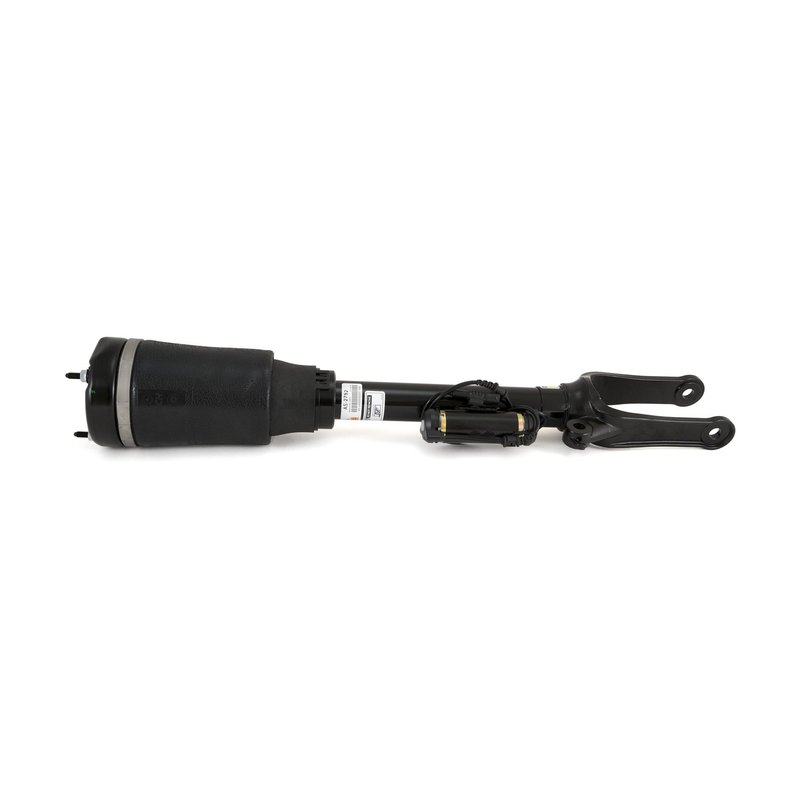

Arnott AS-2792 Air Suspension Strut - Front

Front Air Suspension Strut for Mercedes-Benz SUVs

Arnott AS-2792 is a new front air suspension strut for select Mercedes-Benz ML-Class and GL-Class SUVs equipped with Airmatic and ADS. It is engineered to restore ride control and handling response with a custom-valved shock absorber, a multi-ply ContiTech air spring bladder, and a CNC-machined aluminum top mount.

Built for the 2006-2011 Mercedes-Benz ML350, ML500, ML550, ML320, and 2010-2012 Mercedes-Benz GL350, GL450, GL500, and GL550 applications, AS-2792 is assembled in the USA and arrives pre-assembled for a more direct replacement process. The Arnott NEW product line focuses on new aftermarket suspension assemblies designed around OE-style fitment and function.

Key Features

• New Arnott-engineered air suspension strut assembly
• Front position for Mercedes-Benz ML-Class and GL-Class SUVs
• Custom tuned hydraulic shock absorber with progressive spring rate
• Multi-ply ContiTech air spring bladder
• CNC-machined top mount made from aircraft-quality aluminum
• Includes ADS sensor and air fitting
• Pre-assembled design for easier installation
• Includes boot, bump stop, O-rings, long-lasting seals, and heavy-duty crimping rings
• Gas charged construction with air-adjustable ride height

Detailed Description

Arnott AS-2792 is a front air suspension strut designed for Mercedes-Benz vehicles that use Airmatic and ADS. It replaces the original equipment strut with a new assembly that combines an air spring, hydraulic damper, and mounting components in one unit. The shock absorber is custom valved to help restore original ride control and performance on the road.

This part cross-references Mercedes-Benz OE numbers 1643204313 and 1643204413 for the same application. AS-2792 is a direct-fit solution for front suspension service on the Mercedes-Benz ML-Class and GL-Class, including 2006-2011 ML350, 2006-2011 ML500, 2008-2011 ML550, 2007-2009 ML320, 2010-2012 GL350, 2007-2012 GL450, 2008-2012 GL500, and 2008-2012 GL550 models with the listed suspension systems.

Common Problems This Part Addresses

• Front-end sagging from a worn air spring bladder
• Excessive bouncing or reduced damping control
• Suspension warning lights related to air strut wear
• Uneven ride height at the front of the vehicle
• Noisy or harsh ride from a failing strut assembly

Installation Notes and Tips

AS-2792 is pre-assembled to simplify replacement, but installation should be performed with the vehicle properly supported and the air suspension system depressurized before removal. Verify ADS and Airmatic compatibility before ordering, since fitment varies by model and suspension configuration. After installation, clear any stored fault codes and perform a ride-height check.

Compatible With 2006-2011 Mercedes-Benz ML350, front; 2006-2011 Mercedes-Benz ML500, front; 2008-2011 Mercedes-Benz ML550, front; 2007-2009 Mercedes-Benz ML320, front; 2010-2012 Mercedes-Benz GL350, front; 2007-2012 Mercedes-Benz GL450, front; 2008-2012 Mercedes-Benz GL500, front; and 2008-2012 Mercedes-Benz GL550, front. AS-2792 is also referenced by Mercedes-Benz OE part numbers used on these applications.

Quality Assurance

Arnott designs and assembles this air suspension strut in the USA using new seals, new O-rings, a new bump stop, and a ContiTech air bladder. The assembly is built as a new replacement part, not remanufactured, for Mercedes-Benz ML-Class and GL-Class front suspension service.
