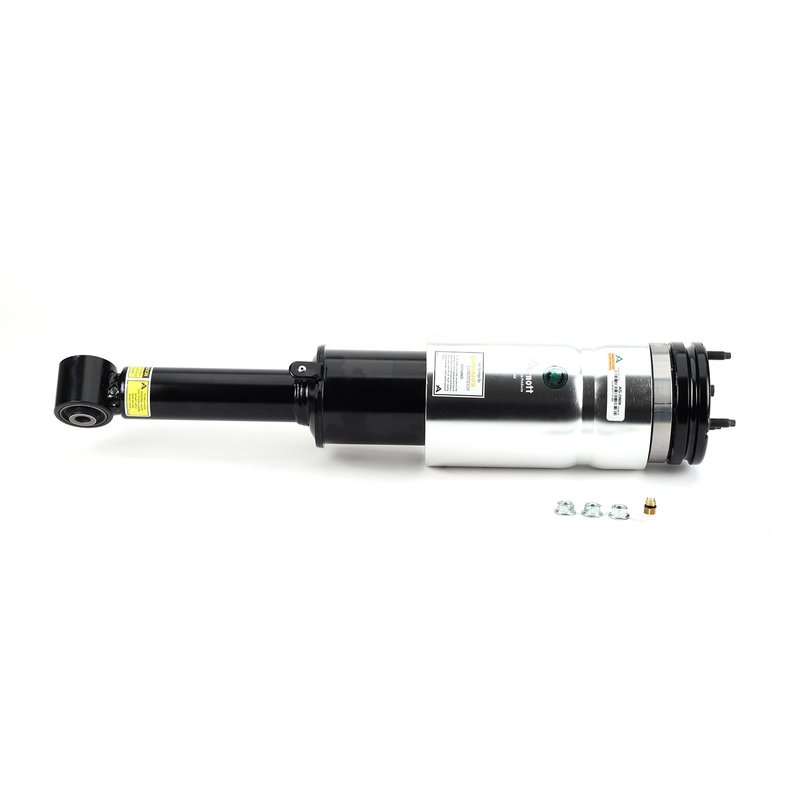

Arnott AS-2809 Air Suspension Strut - Front

Arnott AS-2809 Front Air Strut

Arnott AS-2809 is a new front air suspension strut for select Land Rover LR3, LR4, and Range Rover Sport applications. It is built as a complete aftermarket assembly with a tuned twin-tube shock absorber, a ContiTech multi-ply air spring bladder, and corrosion-resistant components for dependable ride control.

Key Features

• New, not remanufactured front air suspension strut
• Designed and assembled in the USA
• Custom-tuned twin-tube shock absorber with hydraulic internal damper
• Multi-ply ContiTech air spring bladder
• Heavy-duty crimping rings, new seals, air fitting, check valve, and O-rings
• Black anodized aluminum top with protective aluminum can
• Air adjustable and air ride suspension design
• Progressive spring rate with gas-charged construction
• Mounting hardware included

Product Details

This Arnott air suspension strut is engineered for the front suspension on the 2005-2009 Land Rover LR3, 2010-2016 Land Rover LR4, 2006-2009 Range Rover Sport, and 2010-2013 Range Rover Sport. It is also listed for the 2010-2016 Land Rover LR4 and the 2006-2013 Range Rover Sport, including Supercharged models, with a note that it is not compatible with Continuous Variable Damping (CVD) on 2010-2013 Range Rover Sport applications. The AS-2809 uses a loop/eyelet lower mount, stud upper mount, and upper mounting isolator, making it a direct replacement style assembly for front air suspension service.

Arnott AS-2809 is built around the needs of Land Rover LR3 and LR4 owners who need a front strut assembly that restores air spring function and ride control. This part number, AS-2809, cross-references OE-style Land Rover numbers including LR016414 and LR034282 for the same application.

Common Problems It Can Address

• Front end sagging after air spring bladder wear
• Uneven ride height from leaking seals or fittings
• Noisy or harsh front suspension response from worn damping components
• Air suspension warning lights related to strut leakage or failure
• Poor ride quality on LR3, LR4, or Range Rover Sport front suspension systems

Installation Notes

Verify vehicle configuration before installation, especially on 2010-2013 Range Rover Sport models equipped with Continuous Variable Damping. Inspect air lines, fittings, and mounting points for wear or contamination before installing the new strut. Proper ride-height calibration and system checks after installation help confirm correct operation of the front air suspension.

Quality Assurance

Arnott designs and assembles this front air suspension strut in the USA and backs AS-2809 with a Limited Lifetime Warranty. The assembly includes a protective aluminum can to help keep debris away from the air spring components and uses heavy-duty construction details intended for long-term suspension service.
