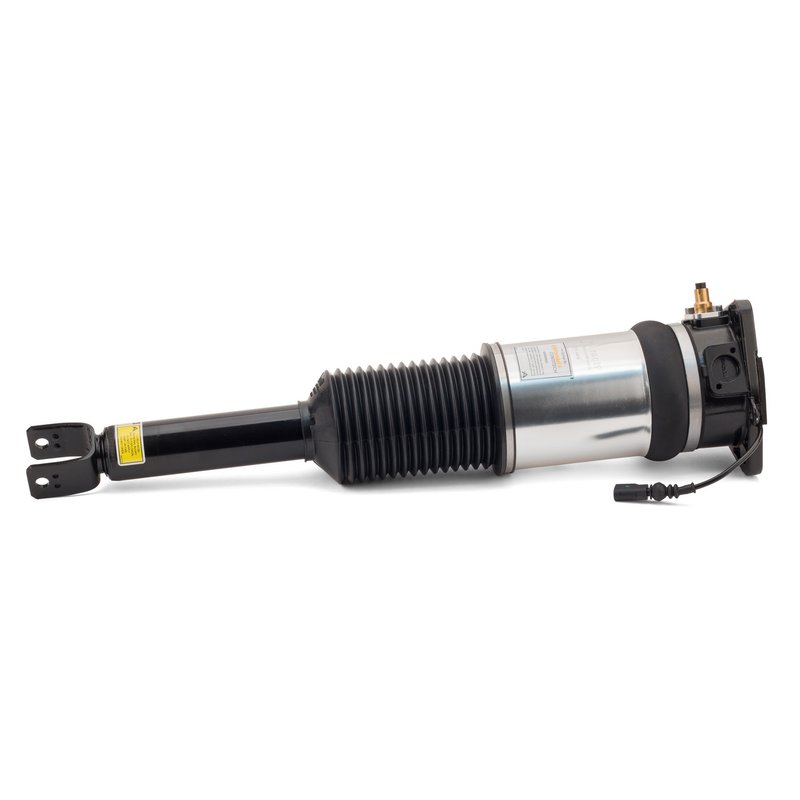

Arnott AS-2966 Air Suspension Strut - Rear Left

Rear Left Air Strut for Audi A8 Sport Suspension

The Arnott AS-2966 is a remanufactured rear left air suspension strut for select Audi A8 and S8 models with sport suspension. It is built for the 2002-2009 Audi A8 D3 chassis application and uses an Arnott-engineered air spring bladder that eliminates the original reservoir design.

Key Features

• Remanufactured in the USA for the rear left position
• Designed for Audi A8 Quattro and S8 sport suspension applications
• Arnott-engineered air spring bladder without the OE reservoir
• Heavy-duty crimping rings, new connector valve, bump stop, and dust cover
• Cleaned, repainted, and rebuilt with long-lasting O-rings
• Air adjustable, gas charged, and hydraulic internal damper
• Progressive spring rate with adjustable damping
• Boot included with black boot color

Detailed Description

Arnott AS-2966 is a remanufactured air suspension strut engineered for the rear left side of the Audi A8 Quattro and Audi S8 with sport suspension. This assembly is built around a custom air spring bladder that replaces the original reservoir layout, while retaining the air ride and damping characteristics needed for the D3 chassis platform. The strut is remanufactured, tested, cleaned, repainted, and rebuilt in the USA using heavy-duty crimping rings, new O-rings, a new connector valve, a bump stop, and a dust cover. This part number, AS-2966, is intended for vehicles with sport suspension only and cross-references Audi service part numbers including 4E0616001A and 4E0616001F for the same application.

What It Helps Address

• Rear suspension sag on air-equipped Audi A8 or S8 models
• Uneven ride height at the rear left corner
• Air spring leakage from a worn strut assembly
• Loss of damping control or inconsistent ride response
• Noise or contamination from a deteriorated boot or internal components

Installation Notes and Fitment

Compatible with 2004-2010 Audi A8 Quattro, rear left, with sport suspension PR codes 2MA and 2MB. Compatible with 2007-2010 Audi S8, rear left. Verify the vehicle is equipped with sport suspension before ordering. AS-2966 is a rear left air suspension strut and should be installed following factory service procedures for air suspension systems.

Quality Assurance

Each Arnott remanufactured strut is tested after rebuilding and backed by a Limited Lifetime Warranty. The AS-2966 is remanufactured to restore proper air suspension function for Audi A8 and Audi S8 sport suspension applications.
