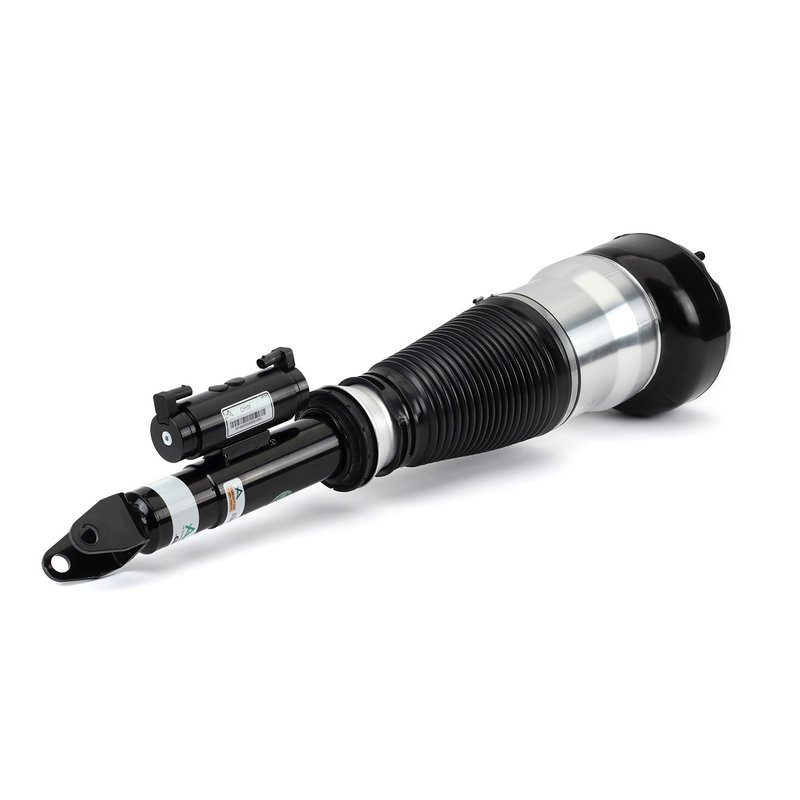

Arnott AS-3163 Air Suspension Strut - Front Left
Front Left Air Suspension Strut for Mercedes-Benz S-Class
Arnott AS-3163 is a new front left air suspension strut for select 2014-2020 Mercedes-Benz S-Class and Maybach models with AIRMATIC and ADS. It replaces a worn OE unit with a new, custom-tuned shock absorber for a controlled ride and consistent suspension response.
Key Features
- New Arnott-engineered aftermarket air suspension strut
- Front left position for Mercedes-Benz S-Class and Maybach applications
- Designed for vehicles with AIRMATIC and ADS, without 4MATIC and without ABC
- Includes a new ContiTech air spring protected by an aluminum can
- Hydraulic internal damper with progressive spring rate
- Air adjustable design for ride-height control
- Assembled in the USA with Arnott seals, O-rings, bump stop, heavy-duty crimping rings, connector valve, and dust boot
- Mounting hardware included
Product Details
The Arnott AS-3163 is built as a direct replacement air suspension strut for the front left side of the Mercedes-Benz S-Class platform, including Maybach and AMG variants listed below. It uses a new shock absorber tuned for comfort and response, along with a ContiTech air spring and protective aluminum housing for durable operation. Arnott’s assembly also incorporates a boot, spring isolators, bearing plate, and upper mounting isolator to support proper fit and function. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. Arnott AS-3163 is a fitment-based replacement for drivers searching for a front left air strut for Mercedes-Benz S-Class, Maybach S650, or S-Class AMG models with AIRMATIC and ADS.
What It Helps Address
- Front-end sag from a leaking or worn air spring
- Excessive bouncing or poor damping from a failing strut
- Uneven ride height on the front left corner
- Noisy suspension operation caused by worn internal components
- Loss of ride comfort and steering stability
Installation Notes
Compatible With 2014-2017 Mercedes-Benz S550, front left; 2015-2017 Mercedes-Benz S550e, front left; 2015-2017 Mercedes-Benz S600, front left; 2016-2017 Mercedes-Benz Maybach S600, front left; 2016-2018 Mercedes-Benz S400L, front left; 2016-2020 Mercedes-Benz S600L, front left; 2015-2020 Mercedes-Benz S65 AMG, front left; 2016-2020 Mercedes-Benz S65L AMG, front left; 2018-2020 Mercedes-Benz S450, front left; 2018-2020 Mercedes-Benz S560, front left; 2018-2020 Mercedes-Benz Maybach S650, front left; 2019-2020 Mercedes-Benz S450L, front left; 2019-2020 Mercedes-Benz S560e, front left; 2019-2020 Mercedes-Benz S560L, front left; 2017 Mercedes-Benz S63L AMG, front left; 2016 Mercedes-Benz S500, front left; 2014 Mercedes-Benz S500, front left; 2014-2015 Mercedes-Benz S400, front left; 2015 Mercedes-Benz S500L, front left.
Verify the vehicle is equipped with AIRMATIC and ADS and does not use 4MATIC or ABC before installation. Arnott recommends replacing both sides at the same time when replacing an OE strut with this Arnott-designed air strut. Professional installation and system inspection are recommended to confirm ride-height calibration and leak-free operation.
Quality Assurance
AS-3163 is a new Arnott part assembled in the USA using branded components and long-life sealing materials for consistent suspension performance. The design follows Arnott’s aftermarket engineering approach for Mercedes-Benz S-Class and Maybach air suspension service.
This part fits 49 vehicles. Search below:
| Year | Make | Model | Body Type | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | Mercedes-Benz | Maybach S650 | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2020 | Mercedes-Benz | S450 | RWD | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | |
| 2020 | Mercedes-Benz | S450L | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2020 | Mercedes-Benz | S560 | Sedan | RWD | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW |
| 2020 | Mercedes-Benz | S560e | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2020 | Mercedes-Benz | S560L | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2020 | Mercedes-Benz | S600L | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2020 | Mercedes-Benz | S65 AMG | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2019 | Mercedes-Benz | Maybach S650 | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2019 | Mercedes-Benz | S450 | RWD | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | |
| 2019 | Mercedes-Benz | S450L | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2019 | Mercedes-Benz | S560 | Sedan | RWD | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW |
| 2019 | Mercedes-Benz | S560e | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2019 | Mercedes-Benz | S560L | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2019 | Mercedes-Benz | S600L | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2019 | Mercedes-Benz | S65 AMG | Sedan | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | |
| 2018 | Mercedes-Benz | Maybach S650 | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2018 | Mercedes-Benz | S400L | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2018 | Mercedes-Benz | S450 | RWD | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | |
| 2018 | Mercedes-Benz | S560 | Sedan | RWD | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW |
| 2018 | Mercedes-Benz | S600L | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2018 | Mercedes-Benz | S65 AMG | Sedan | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | |
| 2017 | Mercedes-Benz | Maybach S600 | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2017 | Mercedes-Benz | S400L | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2017 | Mercedes-Benz | S550 | Sedan | RWD | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW |
| 2017 | Mercedes-Benz | S550e | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2017 | Mercedes-Benz | S600 | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2017 | Mercedes-Benz | S600L | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2017 | Mercedes-Benz | S63L AMG | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2017 | Mercedes-Benz | S65 AMG | Sedan | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | |
| 2017 | Mercedes-Benz | S65L AMG | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2016 | Mercedes-Benz | Maybach S600 | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2016 | Mercedes-Benz | S400L | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2016 | Mercedes-Benz | S500 | Sedan | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | |
| 2016 | Mercedes-Benz | S550 | RWD | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | |
| 2016 | Mercedes-Benz | S550e | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2016 | Mercedes-Benz | S600 | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2016 | Mercedes-Benz | S600L | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2016 | Mercedes-Benz | S65 AMG | Sedan | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | |
| 2016 | Mercedes-Benz | S65L AMG | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2015 | Mercedes-Benz | S400 | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2015 | Mercedes-Benz | S500L | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2015 | Mercedes-Benz | S550 | RWD | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | |
| 2015 | Mercedes-Benz | S550e | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2015 | Mercedes-Benz | S600 | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2015 | Mercedes-Benz | S65 AMG | Sedan | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | |
| 2014 | Mercedes-Benz | S400 | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | ||
| 2014 | Mercedes-Benz | S500 | Sedan | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW | |
| 2014 | Mercedes-Benz | S550 | RWD | Front Left | Not compatible with vehicles with Active Suspension (ABC) systems.; NEW |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
