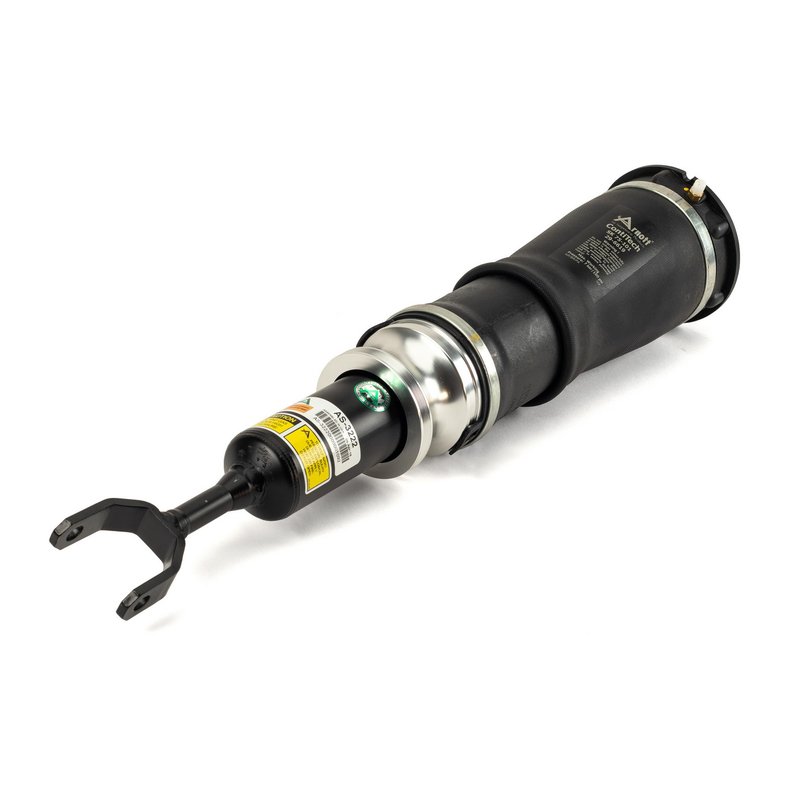

Arnott AS-3222 Air Suspension Strut - Front

Front Air Strut for Audi Allroad Quattro

Arnott AS-3222 is a complete front air suspension strut for the 2001-2005 Audi A6 Allroad quattro (C5 chassis). It is assembled for direct replacement on the left or right front side and supports the vehicle’s auto-leveling air ride system.

Built as a NEW Arnott replacement, AS-3222 combines a custom-valved twin-tube shock absorber with a heavy-duty Generation-I air spring. The assembly uses a ContiTech air bladder and a machined aluminum lower mount for a service-ready front suspension solution on the Audi Allroad Quattro.

Key Features

• Fits 2001-2005 Audi Allroad Quattro, front
• Direct replacement front air suspension strut for left or right side use
• Custom-valved twin-tube shock absorber for controlled damping
• Heavy-duty Generation-I air spring with ContiTech bladder
• Machined aluminum bottom mount
• Supports auto-leveling air ride suspension
• Fully assembled and tested in the USA
• New construction with progressive spring rate

Detailed Description

Arnott AS-3222 is engineered for the front suspension of the 2001-2005 Audi A6 Allroad quattro (C5 chassis). It replaces the original air strut assembly with a preassembled unit that includes the shock, air spring, and mounting components needed for a faster front suspension repair. The progressive spring rate and hydraulic internal damper help maintain ride control while preserving the vehicle’s air-adjustable and self-leveling function. This part cross-references Audi OE numbers 4Z7413031 and 4Z7413032 for the same application.

Arnott’s NEW product line focuses on complete air suspension replacement assemblies built for direct-fit service. AS-3222 follows that approach with a fully assembled front air strut for the Audi A6 Allroad quattro, reducing the need to rebuild individual air spring components during service.

Common Problems This Part Can Address

• Front corner sagging from a worn air spring
• Loss of ride height control in the air suspension system
• Excessive bouncing or reduced damping from a failing strut
• Air leaks at the front suspension assembly
• Uneven front ride height on the Audi Allroad Quattro

Installation Notes and Tips

AS-3222 is a front air strut assembly with a threaded upper mount and clevis lower mount. Mounting hardware is not listed as included, so verify all required fasteners and transfer parts before installation. Arnott recommends replacing front struts in pairs to maintain balanced ride height and handling. Confirm the vehicle uses the standard suspension and Generation I design before ordering.

Quality Assurance

Each Arnott AS-3222 front air strut is assembled and tested in the USA to help ensure consistent fit and function. The part is backed by Arnott’s Limited Lifetime Warranty.
