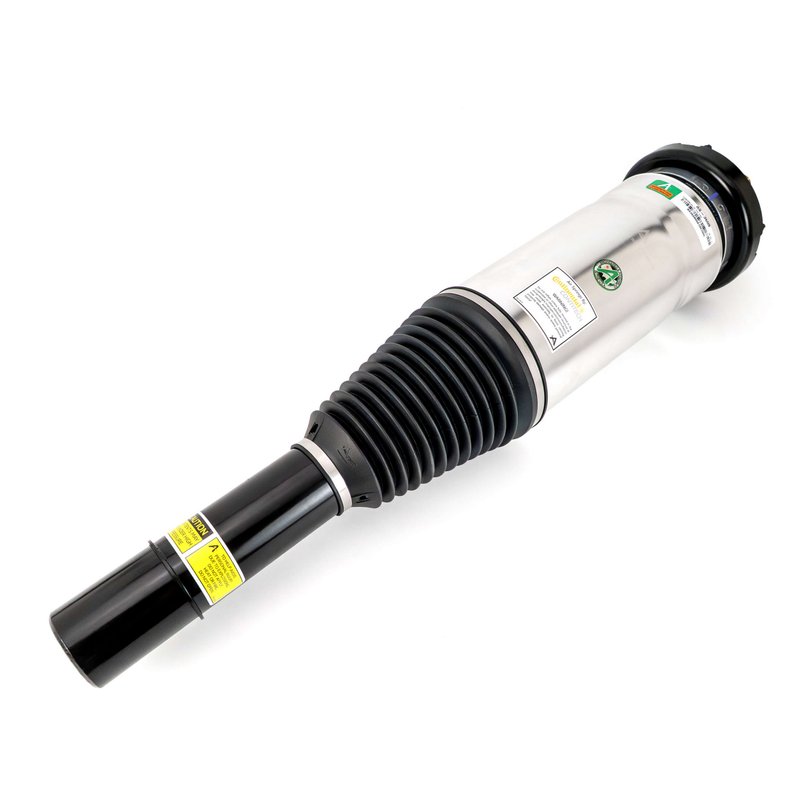

Arnott AS-3608 Air Suspension Strut - Front
| Brand | Arnott AS-3608 |
|---|---|
| Position | Front |
| 10527 | No |
| 10530 | Passive |
| Compressed Length | 514.4 |
| Travel Length | 123.8 |
| Mounting Hardware Included | Yes |
| Grade Type | Standard |
| Extended Length | 638.2 |
| Bladder Heavy Duty Crimping Rings Included | Yes |
| Adjustable Damping | No |
| Air Adjustable | Yes |
| Air Bladder | No |
| Air Ride Suspension | Yes |
| Body End Measuring Point | Center eye |
| Boot Color | Black |
| Coil Over Springs Included | No |
| Gas Charged | Yes |
| Heavy Duty Crimping Rings | Yes |
| Internal Construction Type | Monotube |
| Internal Damper Type | Hydraulic |
| Lower Mount Type | Special |
| Lower Mounting Isolator Included | No |
| New Or Remanufactured | New |
| Progressive Spring Rate | No |
| Protective Aluminum Can | Yes |
| Shock Spring Assisted | Yes |
| Spring Isolators Included | No |
| Spring Rate Type | Linear |
| Springs Included | Yes |
| Upper Mount Type | Stem |
| Upper Mounting Isolator Included | No |
| Product line | New |
| Fits | Land Rover · 8 vehicles |
OE replacement. Replaces the original air suspension strut with a new, engineered assembly.
Aluminum can protection. Helps shield the air spring sleeve for added durability.
Includes mounting hardware. Comes ready for installation with the needed hardware.
Cross-references LR090609, LR090610 and LR116906 for the same application. See all 8.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Arnott AS-3608 Front Air Suspension Strut
The Arnott AS-3608 is a new aftermarket air suspension strut for the front of the 2018-2025 Land Rover Range Rover Velar without Performance Suspension. It replaces the OE strut with a custom-tuned shock absorber and a USA-assembled air spring design for consistent ride control and suspension response.
Built for the Land Rover Range Rover Velar platform, this front air strut combines an aluminum top mount, protective aluminum can, and durable sealing components to support long-term service in daily driving conditions. The AS-3608 is engineered for direct replacement use on the front right or left side.
Key Features
- Fits 2018-2025 Land Rover Range Rover Velar, front right or front left, without Performance Suspension
- New Arnott-engineered aftermarket air suspension strut
- Custom tuned shock absorber for controlled ride quality
- USA-assembled construction with aluminum top mount and protective aluminum can
- Multi-ply air spring sleeve with long-lasting seals and O-rings
- Includes bump stop, heavy-duty crimping rings, new air fitting, and dust boot
- Passive, air-adjustable design with gas-charged, monotube internal construction
- Direct OE strut replacement for the front suspension
Detailed Description
Arnott AS-3608 is a front air suspension strut for the Land Rover Range Rover Velar, engineered as a replacement for the original equipment unit on vehicles without Performance Suspension. The assembly uses a monotube, hydraulic internal damper with a linear spring rate and gas-charged operation to support stable front-end ride characteristics. Arnott assembles this strut in the USA and uses a multi-ply air spring sleeve protected by an aluminum can, along with an aluminum top mount for added durability. The AS-3608 part number is also referenced in OE-style replacement searches for this application, and AS-3608 is a direct-fit option for front suspension service on the Range Rover Velar platform.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Issues It May Address
- Front suspension sag on a Land Rover Range Rover Velar
- Air strut leakage or loss of ride height control
- Uneven front ride height between left and right sides
- Noisy or worn OE front air strut operation
- Reduced ride quality from a failing factory air suspension strut
Installation Notes and Tips
Verify vehicle fitment before installation: Fits 2018-2025 Land Rover Range Rover Velar, front right or front left, without Performance Suspension. Confirm the original strut configuration, air line connection, and mounting style before removal. Because this is an air suspension component, system inspection and proper ride-height calibration after installation are recommended. AS-3608 is intended as a direct replacement for the front air strut assembly on the specified Range Rover Velar applications.
Quality Assurance
Arnott manufactures this new replacement strut with long-lasting seals, O-rings, a dust boot, heavy-duty crimping rings, and a protective aluminum can to support durability in air suspension service. The AS-3608 is assembled in the USA and built to replace the OE front air strut on the confirmed Land Rover Range Rover Velar fitment.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2025 | Land Rover | Range Rover Velar | Front | New |
| 2024 | Land Rover | Range Rover Velar | Front | New |
| 2023 | Land Rover | Range Rover Velar | Front | New |
| 2022 | Land Rover | Range Rover Velar | Front | New |
| 2021 | Land Rover | Range Rover Velar | Front | New |
| 2020 | Land Rover | Range Rover Velar | Front | New |
| 2019 | Land Rover | Range Rover Velar | Front | New |
| 2018 | Land Rover | Range Rover Velar | Front | New |
