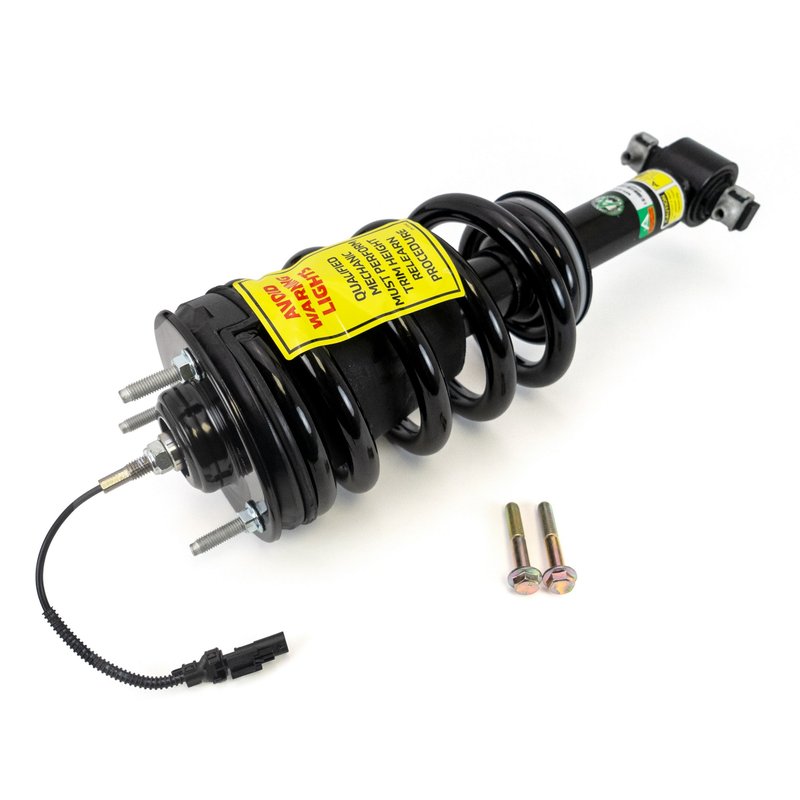

Arnott MR-5358 Suspension Strut and Coil Spring Assembly - Front
| Brand | Arnott MR-5358 |
|---|---|
| Position | Front |
| 10527 | No |
| 10528 | No |
| 10530 | Active |
| Compressed Length | 380 |
| Travel Length | 72.9 |
| Mounting Hardware Included | Yes |
| Internal Construction Type | Monotube |
| Grade Type | Standard |
| Housing Material | Steel |
| Extended Length | 452.9 |
| Adjustable | No |
| Lower Mount Type | Cross pin |
| Upper Mount Type | Stud |
| Boot Included | Yes |
| Gas Charged | Yes |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Progressive Spring Rate | No |
| Coil Spring Included | Yes |
| Dust Shield Included | Yes |
| Bladder(s) Included | No |
| Bladder Heavy Duty Crimping Rings Included | No |
| Bladder Sleeve(s) Included | No |
| Air Adjustable | No |
| Air Bladder | No |
| Air Bladder Material | No |
| Air Ride Suspension | No |
| Bearing Plate Included | No |
| Body End Measuring Point | Center eye |
| Boot Color | Black |
| Product line | NEW |
| Fits | Cadillac, Chevrolet, and GMC · 38 vehicles |
Direct replacement. Restores factory ride height and MagneRide performance.
Monotube damper. Magnetorheological fluid adjusts stiffness in real time.
Preassembled assembly. Includes coil spring, mount, bump stop, seat, and isolator.
Cross-references 23151123, 23312167 and 23464589 for the same application. See all 6.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
GM MagneRide Front Strut Assembly
The Arnott MR-5358 is a front magnetic coil strut assembly for GM K2-platform SUVs and trucks equipped with Z95 MagneRide. It restores factory ride height and preserves the adaptive damping behavior expected from the original suspension system.
Built as a direct replacement, the MR-5358 is a practical choice for drivers searching for a front MagneRide strut assembly for 2015-2020 Cadillac Escalade, Chevrolet Tahoe, GMC Yukon, and related GM applications. Arnott’s NEW product line also includes alternate ride-height options for this platform, including a 1-inch lift version under MR-4262.
Key Features
- Front suspension strut and coil spring assembly for Z95 MagneRide systems
- Restores factory ride height on GM K2-platform applications
- Monotube damper with magnetic internal construction
- Pre-assembled with coil spring, upper strut mount, bump stop, spring seat, and isolator
- Fits either front position
- Steel housing with black finish and rubber dust shield
- Gas charged, adjustable damping design
- Designed and assembled in the USA
Product Details
The Arnott MR-5358 uses an OES-style monotube damper filled with magnetorheological fluid, allowing the suspension to respond to magnetic input and change damping characteristics in real time. That makes it a strong OE-style replacement for drivers who want to maintain the original MagneRide feel on a 2015-2020 Cadillac Escalade front suspension, 2015-2020 Chevrolet Tahoe front suspension, or 2015-2020 GMC Yukon front suspension. The assembly is pre-built for straightforward installation and includes the spring, mount, bump stop, seat, and isolator already in place. This part number, MR-5358, is also cross-referenced to OE numbers used on the same application.
Arnott’s NEW line for the GM K2 platform gives buyers a choice between factory-height restoration and a mild lift option. MR-5358 is the factory-height solution, while MR-4262 is the alternate 1-inch lift configuration.
What It Helps Fix
- Front-end sag or loss of factory ride height
- Uneven ride quality from a worn MagneRide strut
- Reduced damping response in adaptive suspension systems
- Noisy or tired front suspension components
- Ride control issues on GM MagneRide-equipped SUVs and trucks
Installation Notes
Fits 2015-2020 Cadillac Escalade, front; 2015-2020 Cadillac Escalade ESV, front; 2015-2020 Chevrolet Tahoe, front; 2015-2020 GMC Yukon, front; 2015-2020 GMC Yukon XL, front; 2015-2018 Chevrolet Silverado 1500, front; and 2015-2018 GMC Sierra 1500, front. The MR-5358 is a front-position assembly and is designed as a plug-and-play replacement. For best suspension balance and consistent damping response, replace in pairs when servicing the front end. Verify MagneRide/Z95 equipment and vehicle configuration before installation.
Quality Assurance
Arnott designs and assembles this NEW MR-5358 strut assembly in the USA using a monotube magnetic damper architecture and pre-assembled suspension components for OE-style fit and function. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2020 | Cadillac | Escalade | 4WD | Front | Increased Ride Height; NEW |
| 2020 | Cadillac | Escalade ESV | — | Front | Active Replacement; NEW |
| 2020 | Chevrolet | Tahoe | 4WD | Front | Increased Ride Height; NEW |
| 2020 | GMC | Yukon | 4WD | Front | Increased Ride Height; NEW |
| 2020 | GMC | Yukon XL | — | Front | Active Replacement; NEW |
| 2019 | Cadillac | Escalade | 4WD | Front | Increased Ride Height; NEW |
| 2019 | Cadillac | Escalade ESV | — | Front | Active Replacement; NEW |
| 2019 | Chevrolet | Tahoe | 4WD | Front | Increased Ride Height; NEW |
| 2019 | GMC | Yukon | 4WD | Front | Increased Ride Height; NEW |
| 2019 | GMC | Yukon XL | — | Front | Active Replacement; NEW |
| 2018 | Cadillac | Escalade | 4WD | Front | Increased Ride Height; NEW |
| 2018 | Cadillac | Escalade ESV | — | Front | Active Replacement; NEW |
| 2018 | Chevrolet | Silverado 1500 | RWD | Front | Active Replacement; NEW |
| 2018 | Chevrolet | Tahoe | AWD | Front | Increased Ride Height; NEW |
| 2018 | GMC | Sierra 1500 | RWD | Front | Active Replacement; NEW |
| 2018 | GMC | Yukon | 4WD | Front | Increased Ride Height; NEW |
| 2018 | GMC | Yukon XL | — | Front | Active Replacement; NEW |
| 2017 | Cadillac | Escalade | 4WD | Front | Increased Ride Height; NEW |
| 2017 | Cadillac | Escalade ESV | — | Front | Active Replacement; NEW |
| 2017 | Chevrolet | Silverado 1500 | RWD | Front | Active Replacement; NEW |
| 2017 | Chevrolet | Tahoe | AWD | Front | Increased Ride Height; NEW |
| 2017 | GMC | Sierra 1500 | RWD | Front | Active Replacement; NEW |
| 2017 | GMC | Yukon | 4WD | Front | Increased Ride Height; NEW |
| 2017 | GMC | Yukon XL | — | Front | Active Replacement; NEW |
| 2016 | Cadillac | Escalade | AWD | Front | Increased Ride Height; NEW |
| 2016 | Cadillac | Escalade ESV | — | Front | Active Replacement; NEW |
| 2016 | Chevrolet | Silverado 1500 | RWD | Front | Active Replacement; NEW |
| 2016 | Chevrolet | Tahoe | AWD | Front | Increased Ride Height; NEW |
| 2016 | GMC | Sierra 1500 | RWD | Front | Active Replacement; NEW |
| 2016 | GMC | Yukon | 4WD | Front | Increased Ride Height; NEW |
| 2016 | GMC | Yukon XL | — | Front | Active Replacement; NEW |
| 2015 | Cadillac | Escalade | 4WD | Front | Increased Ride Height; NEW |
| 2015 | Cadillac | Escalade ESV | — | Front | Active Replacement; NEW |
| 2015 | Chevrolet | Silverado 1500 | RWD | Front | Active Replacement; NEW |
| 2015 | Chevrolet | Tahoe | 4WD | Front | Increased Ride Height; NEW |
| 2015 | GMC | Sierra 1500 | RWD | Front | Active Replacement; NEW |
| 2015 | GMC | Yukon | 4WD | Front | Increased Ride Height; NEW |
| 2015 | GMC | Yukon XL | — | Front | Active Replacement; NEW |
