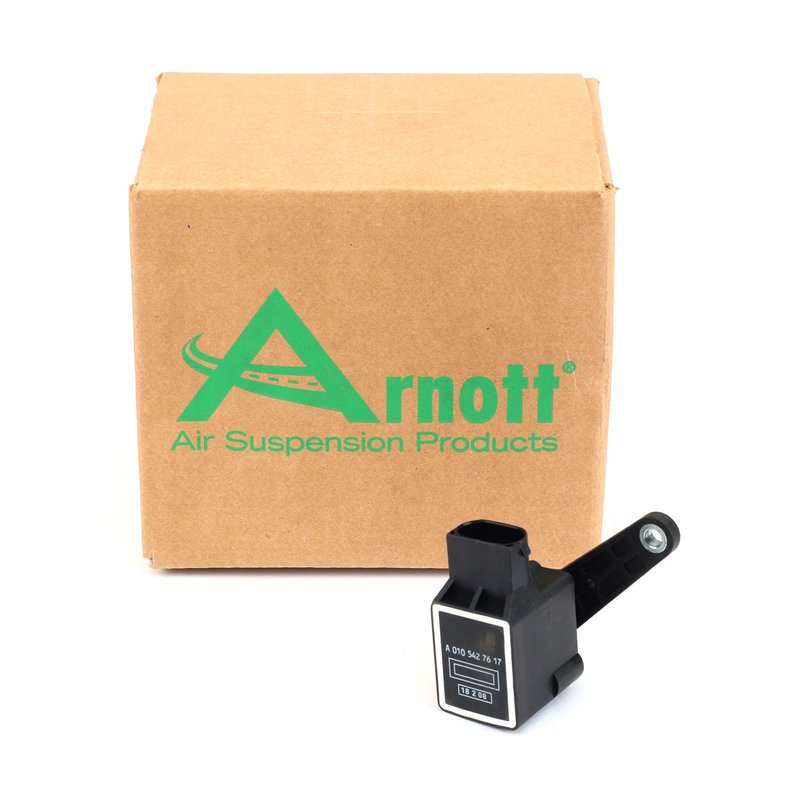

Arnott RH-3500 Suspension Ride Height Sensor - Front or Rear

Overview of Arnott NEW Suspension Ride Height Sensor RH-3500

The Arnott NEW Suspension Ride Height Sensor RH-3500 is designed for precise suspension height monitoring on select Mercedes-Benz and Maybach models. This sensor ensures accurate ride height data for optimal suspension performance and vehicle stability.

• Connector Color: Black
• Terminal Type: Pin
• Grade Type: Standard
• Connector Quantity: 1
• Connector Shape: Oval
• Terminal Quantity: 6
• Connector Gender: Female
• Terminal Gender: Male
• Mounting Hardware: Not included
• Condition: New

Detailed Product Description

The Arnott NEW Suspension Ride Height Sensor RH-3500 features a single black oval-shaped connector with six male terminals designed for reliable electrical connections. This standard grade sensor is engineered to provide consistent and accurate ride height measurements, essential for the adaptive suspension systems found in Mercedes-Benz and Maybach vehicles. The female connector interface ensures compatibility with factory wiring harnesses, facilitating straightforward integration without modification. While mounting hardware is not included, the sensor is designed to fit securely in the designated suspension sensor location on compatible models.

Compatible Vehicles and Applications

This suspension ride height sensor is compatible with a range of Mercedes-Benz and Maybach models, including the Maybach 57 and 62, as well as Mercedes-Benz CLS500, CLS55 AMG, S350, S430, S500, S55 AMG, S600, S65 AMG, E320, E500, and E55 AMG. The part number RH-3500 ensures precise fitment for these vehicles, supporting suspension systems that rely on accurate height sensing for ride quality and handling.

Common Issues Addressed by RH-3500 Sensor

• Inaccurate or fluctuating suspension ride height readings
• Warning lights related to suspension height sensor faults
• Uneven vehicle stance or sagging suspension
• Adaptive suspension system malfunctions
• Reduced ride comfort and handling stability

Installation Notes and Tips

Installation of the Arnott RH-3500 sensor requires careful handling of the oval-shaped black connector to avoid damage to the six male terminals. Ensure the female connector on the vehicle harness mates securely with the sensor. Since mounting hardware is not included, reuse existing hardware or source appropriate fasteners to secure the sensor in place. It is recommended to verify sensor calibration and system diagnostics after installation to confirm proper operation.

Quality Assurance and Warranty

The Arnott NEW product line represents newly manufactured components meeting standard quality specifications. The RH-3500 suspension ride height sensor undergoes quality checks to ensure reliable performance in Mercedes-Benz and Maybach vehicles. Warranty coverage details should be confirmed with the product documentation or supplier, typically covering defects in materials and workmanship.
