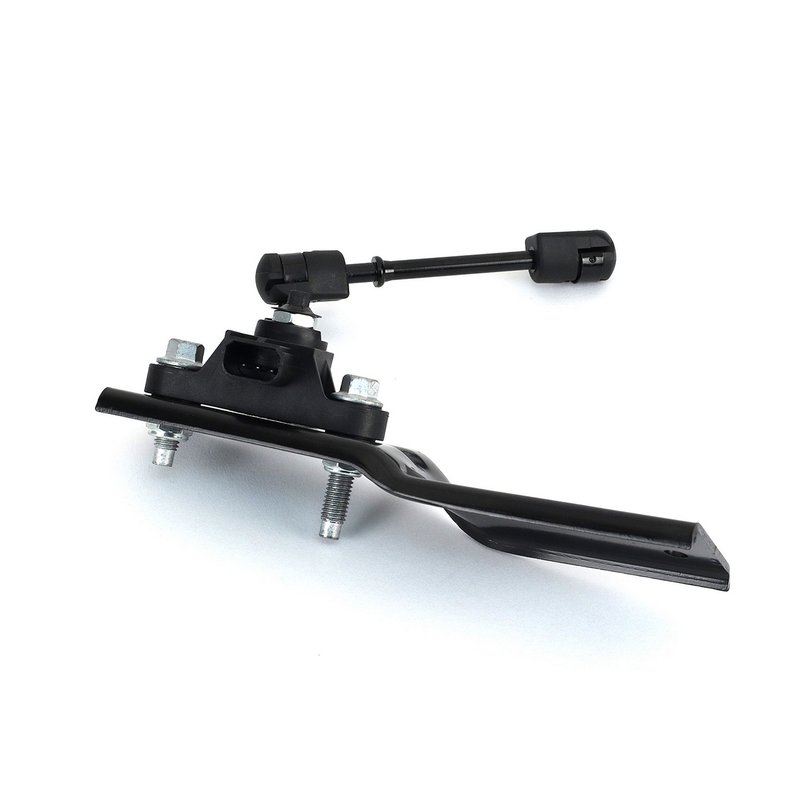

Arnott RH-3569 Suspension Ride Height Sensor - Rear Right
| Brand | Arnott RH-3569 |
|---|---|
| Position | Rear Right |
| Connector Color | Black |
| Terminal Type | Pin |
| Grade Type | Standard |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Terminal Quantity | 3 |
| Connector Gender | Male |
| Terminal Gender | Male |
| Mounting Hardware Included | No |
| New Or Remanufactured | New |
| Fits | Ford and Lincoln · 16 vehicles |
New sensor. Helps the ECU maintain proper ride height in air suspension systems.
Standard grade. A straightforward replacement built with a single oval connector and pin terminals.
Measures chassis distance to help the system adjust air pressure as needed.
Cross-references 8L1Z5A967A for the same application. See all 1.
Arnott RH-3569 Rear Right Ride Height Sensor
Arnott RH-3569 is a new suspension ride height sensor for air-suspension systems that monitor chassis height and send that data to the ECU. On 2007-2014 Ford Expedition and 2007-2014 Lincoln Navigator rear right applications, it helps the system adjust air pressure in the struts to maintain proper vehicle level.
Key Features
- New Arnott aftermarket ride height sensor
- Rear right position for select Ford Expedition and Lincoln Navigator models
- Black connector with oval shape
- 3-pin male terminal design with 1 male connector
- Standard grade replacement for air suspension height monitoring
- Cross-reference: This part cross-references Ford OE 8L1Z5A967A for the same application.
How It Works
The RH-3569 measures the distance between the road surface and the vehicle chassis, then relays that information to the ECU so the air suspension compressor can add or release air as needed. This helps maintain correct ride height on the rear right corner of the suspension system. It is a direct-fit service part for 2007-2014 Ford Expedition rear right and 2007-2014 Lincoln Navigator rear right applications.
Common Problems It Can Help Address
- Suspension sitting too high or too low on the rear right side
- Incorrect ride height readings sent to the ECU
- Air suspension compressor cycling from faulty height feedback
- Warning lights related to ride height or leveling faults
- Wear from road debris, water intrusion, salt exposure, or impact damage
Installation Notes
Verify connector style, terminal layout, and rear right mounting location before installation. Inspect the linkage, wiring, and surrounding suspension components for corrosion or damage, since a failed sensor can be caused by related wear in the system. Confirm fitment for 2007-2014 Ford Expedition and 2007-2014 Lincoln Navigator rear right applications before replacing the part.
Quality Assurance
Arnott supplies new aftermarket suspension components built for air-suspension service and height-control replacement needs. RH-3569 is a new part, not remanufactured, and is engineered for the listed Ford Expedition and Lincoln Navigator rear right applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2014 | Ford | Expedition | Rear Right | — |
| 2014 | Lincoln | Navigator | Rear Right | — |
| 2013 | Ford | Expedition | Rear Right | — |
| 2013 | Lincoln | Navigator | Rear Right | — |
| 2012 | Ford | Expedition | Rear Right | — |
| 2012 | Lincoln | Navigator | Rear Right | — |
| 2011 | Ford | Expedition | Rear Right | — |
| 2011 | Lincoln | Navigator | Rear Right | — |
| 2010 | Ford | Expedition | Rear Right | — |
| 2010 | Lincoln | Navigator | Rear Right | — |
| 2009 | Ford | Expedition | Rear Right | — |
| 2009 | Lincoln | Navigator | Rear Right | — |
| 2008 | Ford | Expedition | Rear Right | — |
| 2008 | Lincoln | Navigator | Rear Right | — |
| 2007 | Ford | Expedition | Rear Right | — |
| 2007 | Lincoln | Navigator | Rear Right | — |
