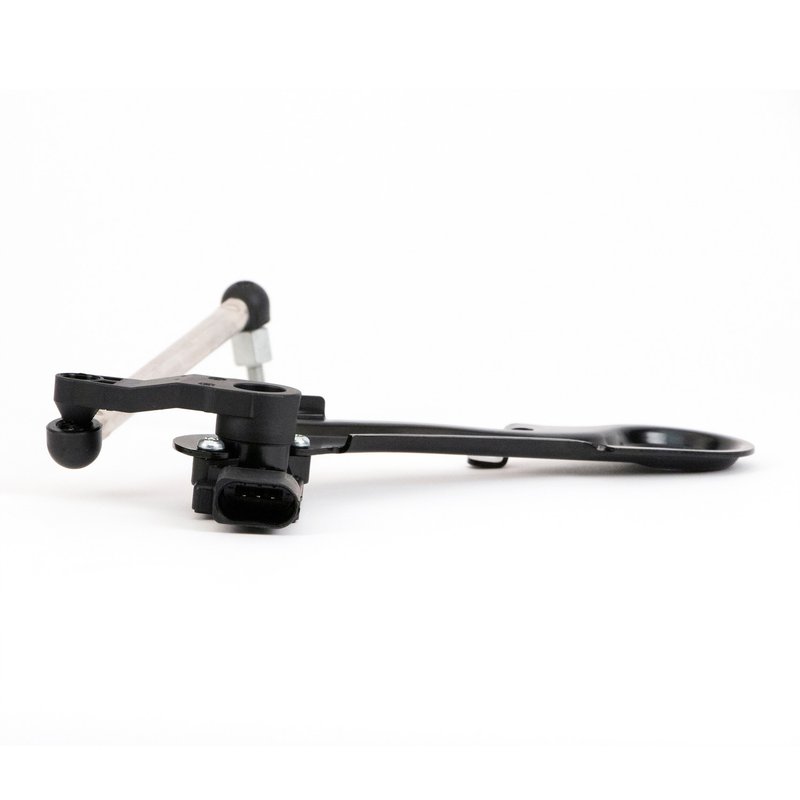

Arnott RH-4271 Suspension Ride Height Sensor - Front Right

Arnott RH-4271 Ride Height Sensor

Arnott RH-4271 is a new suspension ride height sensor for vehicles with air suspension leveling systems. It measures chassis-to-road distance and sends that signal to the ECU so the compressor can adjust air strut pressure as needed. This front right sensor fits select Audi A6 allroad, A6 Quattro, A7 Sportback, Q5, SQ5, and related models.

Key Features

• New aftermarket ride height sensor
• Black connector with oval shape
• 3-terminal blade connection, female connector, male terminals
• Standard grade construction
• Front right position fitment
• Cross-references Audi OE numbers 4K0941286B and 80A941286B

Product Details

The Arnott RH-4271 ride height sensor monitors suspension position so the vehicle can maintain proper ride height and leveling. When the sensor signal changes, the ECU responds by commanding the air suspension compressor to add or release air from the air struts. This part number, RH-4271, is used on select Audi air suspension applications including 2020-2025 Audi A6 allroad, 2019-2025 Audi A6 Quattro, 2019-2025 Audi A7 Sportback, 2018-2025 Audi Q5, 2020-2025 Audi Q5 PHEV, 2021-2025 Audi Q5 Sportback, 2021-2025 Audi RS6 Avant, 2021-2025 Audi RS7 Sportback, 2020-2025 Audi S6, 2020-2025 Audi S7 Sportback, 2018-2025 Audi SQ5, 2021-2025 Audi SQ5 Sportback, and 2020 Audi S7, all in the front right position.

Common Issues This Part Can Address

• Incorrect ride height readings
• Uneven vehicle stance at the front right corner
• Air suspension compressor cycling from bad sensor input
• Suspension warning lights related to height sensing
• Leveling response problems after road debris, water, salt, or impact damage

Installation Notes

Verify connector style, terminal count, and front right mounting location before installation. Inspect the linkage, wiring, and surrounding suspension components for corrosion or damage, since a failed sensor can be caused by exposure to road debris, water intrusion, or salt. After replacement, clear any stored fault codes and confirm the system levels correctly.

Quality Assurance

Arnott supplies this as a new standard-grade replacement ride height sensor for air suspension leveling systems. It is built for the listed Audi applications and follows the OE-style electrical and mounting configuration shown in the fitment data.
