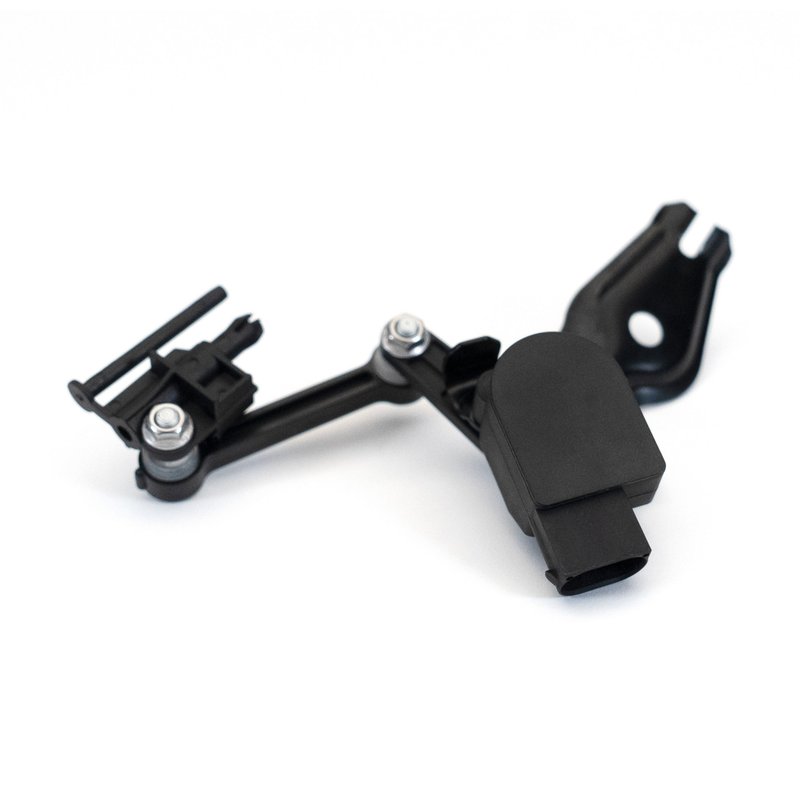

Arnott RH-5051 Headlight Level Sensor - Front Left

Arnott RH-5051 Headlight Level Sensor

Arnott RH-5051 is a new front left headlight level sensor for air-suspension vehicles that use chassis height data to help the ECU manage ride height. It is a direct-fit replacement for select Audi Q7, Porsche Cayenne, and Volkswagen Touareg applications with an oval connector and male pin terminals.

Key Features

• New aftermarket ride height sensor for air suspension systems
• Front left position
• Oval connector with 1 connector and male pin terminals
• Standard grade type
• No mounting hardware included
• Cross-references OE part numbers 7L0616213B and 95534107600 for the same application

Detailed Description

The Arnott RH-5051 headlight level sensor measures the distance between the road and the vehicle chassis and sends that information to the ECU so the air suspension compressor can adjust air pressure in the struts. This helps maintain proper vehicle stance and suspension response on equipped Audi Q7, Porsche Cayenne, and Volkswagen Touareg models. Arnott RH-5051 is built as a new standard replacement for the front left sensor location.

Compatible With 2007-2015 Audi Q7, front left; 2008-2010 Porsche Cayenne, front left; 2003-2006 Porsche Cayenne, front left; 2005-2010 Volkswagen Touareg, front left; and 2004 Volkswagen Touareg, front left from VIN 7L-4-053000. The part number RH-5051 is also useful when searching for a replacement ride height sensor for these air suspension-equipped vehicles.

What It Helps Address

• Suspension height readings that are no longer accurate
• Air suspension systems that do not level the vehicle correctly
• Warning lights related to ride height or suspension control
• Uneven vehicle stance at the front left corner
• Sensor wear caused by road debris, water, salt, or impact damage

Installation Notes

Verify connector shape, terminal type, and mounting location before installation. This sensor uses a single oval connector with male pin terminals and is specified for the front left position. Confirm vehicle fitment by year, model, and VIN note where listed, especially for 2004 Volkswagen Touareg applications from VIN 7L-4-053000.

Quality Assurance

Arnott supplies aftermarket ride height sensors for air suspension service and replacement. RH-5051 is a new part built to replace a worn or damaged sensor and restore proper height-sensing input to the vehicle control system.
