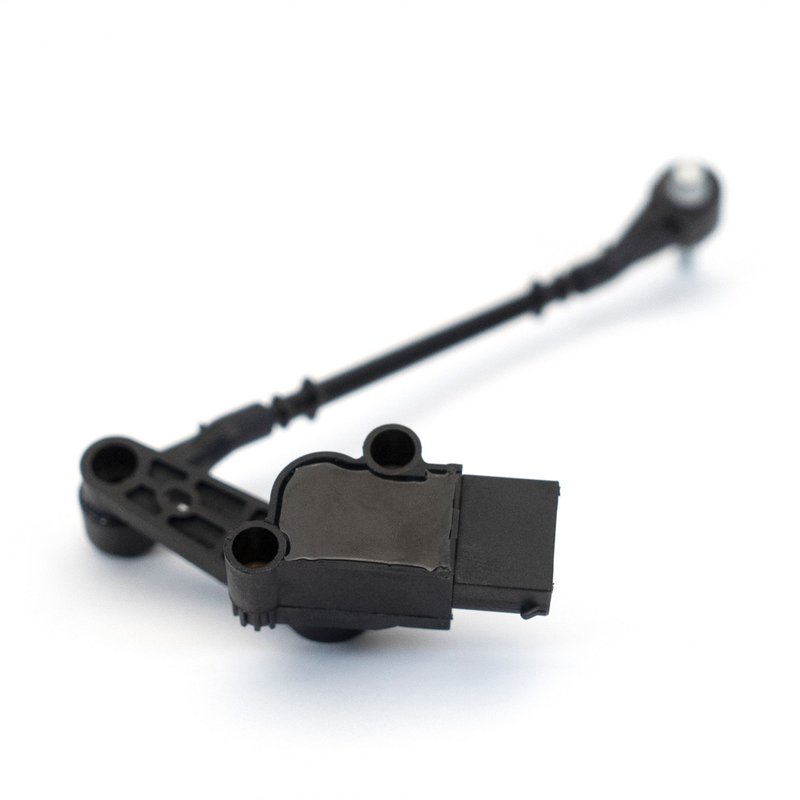

Arnott RH-5061 Headlight Level Sensor - Front or Front Left

Arnott RH-5061 Headlight Level Sensor

Arnott RH-5061 is a new headlight level sensor for vehicles equipped with air suspension height monitoring. It measures chassis-to-road distance and sends that input to the ECU so the system can adjust ride height as needed. This replacement is built for Land Rover Range Rover applications and addresses sensor wear caused by road debris, water, salt, and impact damage.

Key Features

• New headlight level sensor for ride height monitoring
• Pin terminal type with one oval connector and male terminals
• Standard grade construction for direct replacement use
• Mounting hardware included
• Fits 2005-2009 Land Rover Range Rover, front left
• Fits 2004 Land Rover Range Rover, front, with halogen headlights
• Fits 2003 Land Rover Range Rover, front left, with xenon headlights

Detailed Description

The Arnott RH-5061 is a replacement ride height sensor used in air suspension systems to report vehicle position to the ECU. When the sensor signal changes, the control unit can command the compressor to raise or lower the air struts to maintain proper leveling. This part is a direct-fit solution for Land Rover Range Rover models, including front left and front applications across 2003-2009 model years. This part cross-references URO LR020626 for the same application.

Common Problems It Can Help Address

• Suspension warning lights related to ride height sensor faults
• Uneven vehicle stance or incorrect leveling
• Delayed or inconsistent air suspension response
• Sensor damage from road debris, water, or salt intrusion
• Failure caused by wear in the original height sensor

Installation Notes and Tips

Verify connector shape, terminal type, and mounting location before installation. This RH-5061 uses a single oval connector with male pin terminals and is listed for front left or front positions depending on the vehicle application. Confirm headlight type on 2004 and 2003 Range Rover applications before ordering. After installation, clear any stored suspension or leveling fault codes and perform a system check.

Quality Assurance

Arnott supplies this sensor as a new replacement part for air suspension leveling systems. It is built to restore proper ride height signal input and support reliable operation in Land Rover Range Rover applications.
