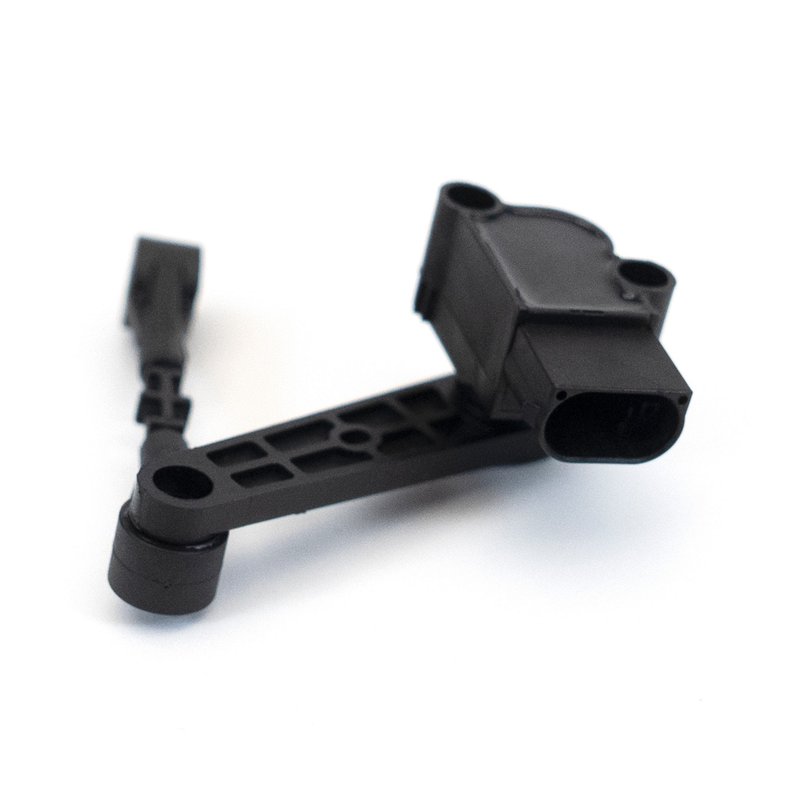

Arnott RH-5064 Suspension Ride Height Sensor - Front
| Brand | Arnott RH-5064 |
|---|---|
| Position | Front |
| Terminal Type | Pin |
| Grade Type | Standard |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Terminal Quantity | 3 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Mounting Hardware Included | No |
| New Or Remanufactured | New |
| Fits | Land Rover · 4 vehicles |
New sensor. Measures chassis height to help keep the air suspension system level.
Standard grade. Built as a direct-fit replacement with one oval female connector.
Pin terminals. Three male terminals provide a simple electrical connection.
Cross-references URO LR023647 and LR014586 for the same application. See all 2.
Arnott RH-5064 Ride Height Sensor
Arnott RH-5064 is a new suspension ride height sensor for air-suspension systems that monitor chassis position and send height data to the ECU. On the 2010-2013 Land Rover Range Rover Sport, front, w/o Variable Damping (VDS), it helps the system adjust air strut pressure based on vehicle ride height.
Key Features
- New aftermarket ride height sensor from Arnott
- Measures the distance between the road and the chassis for suspension height control
- 1 oval female connector with 3 male terminals
- Standard grade, pin terminal type
- Front position application for select Land Rover Range Rover Sport models
- Cross-reference: this part cross-references LR014586 and LR023647 for the same application
Detailed Description
The Arnott RH-5064 ride height sensor provides the input the ECU uses to regulate air suspension height. When the sensor reports vehicle position, the control unit can command the compressor to add or release air from the air struts as needed. This replacement is built for 2010-2013 Land Rover Range Rover Sport front applications without Variable Damping System (VDS), making it a direct-match service part for vehicles showing suspension height feedback issues. The RH-5064 part number is also useful when searching for a Land Rover Range Rover Sport front ride height sensor replacement or an Arnott RH-5064 suspension sensor.
What It Helps Address
- Suspension warning lights related to ride height feedback
- Uneven vehicle stance or incorrect front ride height
- Delayed or inconsistent air suspension leveling response
- Sensor wear from road debris, water, salt, or impact damage
- Air suspension control issues caused by inaccurate chassis height readings
Installation Notes and Tips
Verify the connector style, terminal count, and front position before installation. This sensor uses a female oval connector with three male terminals and does not include mounting hardware. Confirm the vehicle is a 2010-2013 Land Rover Range Rover Sport without Variable Damping (VDS) before ordering. After installation, clear any stored suspension fault codes and inspect the linkage and mounting points for wear or corrosion.
Quality Assurance
Arnott supplies aftermarket suspension components engineered for air-suspension service, and the RH-5064 is a new replacement sensor built for the specified application.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2013 | Land Rover | Range Rover Sport | Front | w/o Variable Damping (VDS) |
| 2012 | Land Rover | Range Rover Sport | Front | w/o Variable Damping (VDS) |
| 2011 | Land Rover | Range Rover Sport | Front | w/o Variable Damping (VDS) |
| 2010 | Land Rover | Range Rover Sport | Front | w/o Variable Damping (VDS) |
