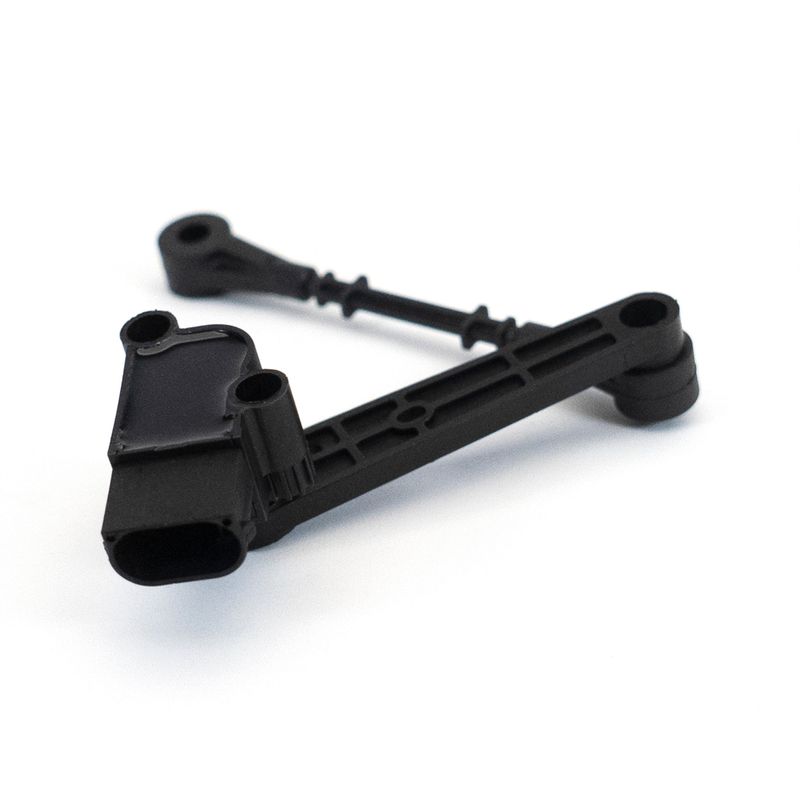

Arnott RH-5065 Headlight Level Sensor - Rear
| Brand | Arnott RH-5065 |
|---|---|
| Position | Rear |
| Terminal Type | Pin |
| Grade Type | Standard |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Terminal Quantity | 3 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Mounting Hardware Included | No |
| New Or Remanufactured | New |
| Fits | Land Rover · 14 vehicles |
New replacement sensor. Helps maintain proper ride height with a standard aftermarket design.
Pin terminal design. Female oval connector with 3 male terminals for a secure electrical connection.
Measures chassis distance to help the suspension system adjust air pressure.
Cross-references URO LR023648 and LR014065 for the same application. See all 2.
Rear Headlight Level Sensor for Land Rover
Arnott RH-5065 is a new rear headlight level sensor for vehicles equipped with air suspension height monitoring. It measures chassis-to-road distance and sends that input to the ECU so suspension height can be adjusted as needed. This helps maintain proper vehicle leveling on Land Rover Discovery, LR4, and Range Rover Sport applications.
Key Features
- Rear ride height sensor / headlight level sensor
- New, standard-grade replacement
- 1 oval female connector
- 3 male terminals with pin-style terminal type
- Direct replacement format for air suspension height feedback systems
- Cross-reference part numbers include LR014065 and LR023648
Detailed Product Information
Arnott RH-5065 is built for rear suspension height sensing on 2010-2016 Land Rover LR4, 2014-2016 Land Rover Discovery, and 2010-2013 Land Rover Range Rover Sport models. The sensor reports ride height changes to the ECU, which then commands the air suspension compressor to raise or lower the air struts as required. The RH-5065 part number is a practical OE-style replacement when the original sensor has worn out or been damaged by road debris, water, salt, or impact.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Incorrect rear ride height readings
- Suspension leveling faults or warning messages
- Uneven vehicle stance at the rear
- Air suspension response issues caused by a failed sensor signal
- Damage from corrosion, debris, or moisture intrusion
Installation Notes and Tips
Install RH-5065 at the rear suspension location and verify connector shape, terminal count, and mounting points before replacement. After installation, clear any stored suspension or body control codes and confirm that the vehicle levels correctly through its normal height range. For 2010-2013 Land Rover Range Rover Sport, this part applies to vehicles without Continuous Variable Damper (CVD).
Quality Assurance
Arnott supplies aftermarket suspension components with application-specific fitment and OE-style function. RH-5065 is a new replacement sensor built to restore accurate ride height input for the vehicle’s leveling system.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2016 | Land Rover | Discovery | Rear | — |
| 2016 | Land Rover | LR4 | Rear | — |
| 2015 | Land Rover | Discovery | Rear | — |
| 2015 | Land Rover | LR4 | Rear | — |
| 2014 | Land Rover | Discovery | Rear | — |
| 2014 | Land Rover | LR4 | Rear | — |
| 2013 | Land Rover | LR4 | Rear | — |
| 2013 | Land Rover | Range Rover Sport | Rear | w/o Continuous Variable Damper (CVD) |
| 2012 | Land Rover | LR4 | Rear | — |
| 2012 | Land Rover | Range Rover Sport | Rear | w/o Continuous Variable Damper (CVD) |
| 2011 | Land Rover | LR4 | Rear | — |
| 2011 | Land Rover | Range Rover Sport | Rear | w/o Continuous Variable Damper (CVD) |
| 2010 | Land Rover | LR4 | Rear | — |
| 2010 | Land Rover | Range Rover Sport | Rear | w/o Continuous Variable Damper (CVD) |
