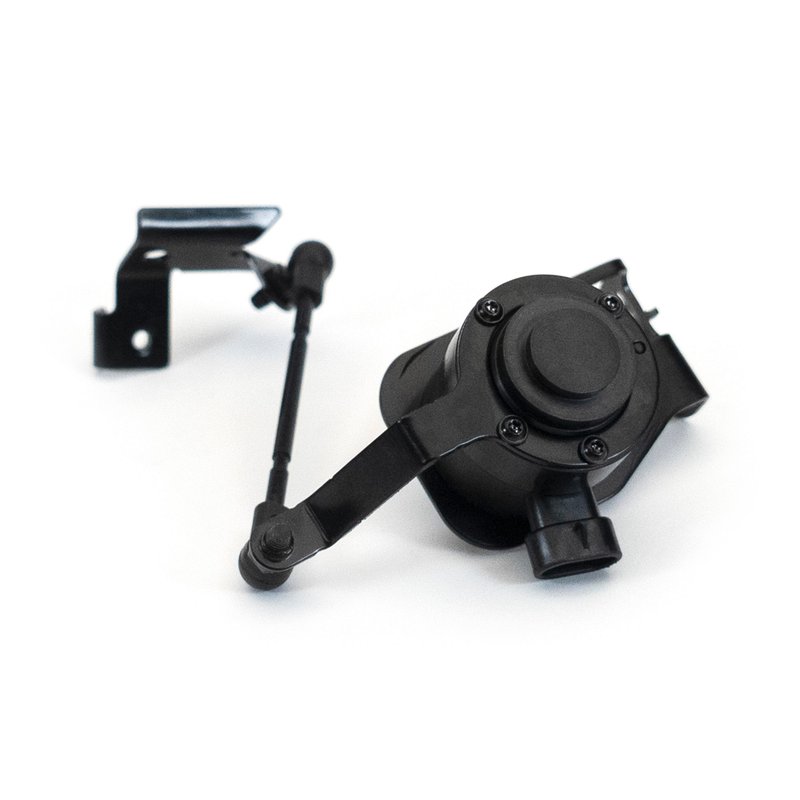

Arnott RH-5074 Headlight Level Sensor - Front Right
| Brand | Arnott RH-5074 |
|---|---|
| Position | Front Right |
| Connector Color | Black |
| Terminal Type | Pin |
| Grade Type | Standard |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Terminal Quantity | 3 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Mounting Hardware Included | No |
| New Or Remanufactured | New |
| Fits | Cadillac, Chevrolet, and GMC · 24 vehicles |
Ride height sensor. Measures chassis distance to help the suspension system stay level.
Standard grade. New sensor with a single oval connector and 3-pin terminal layout.
Arnott aftermarket replacement for worn or damaged ride height sensors.
Cross-references 15128631 for the same application. See all 1.
Front Right Headlight Level Sensor for GM SUVs
Restore proper ride-height input to the suspension control system with this Arnott headlight level sensor. Built as a new standard-grade replacement, RH-5074 helps the ECU read chassis position so the air suspension can respond correctly on select Cadillac Escalade, Chevrolet Tahoe, and GMC Yukon applications.
Key Features
- Brand: Arnott
- Part number: RH-5074
- New standard-grade replacement sensor
- Black female connector with oval shape
- 3-pin terminal layout
- 1 connector design
- Front right mounting position
- Interchange reference: 15128631
Detailed Description
Arnott RH-5074 is an aftermarket ride height sensor used to measure the distance between the road and the vehicle chassis and send that information to the ECU. The control unit then signals the air suspension compressor to raise or lower the air struts as needed. This sensor is a direct-fit style replacement for 2004 Cadillac Escalade, Escalade ESV, and Escalade EXT models with the second design sensor and no pigtail, plus 2005-2006 Cadillac Escalade, Escalade ESV, and Escalade EXT, 2004-2006 Chevrolet Avalanche 1500, Suburban 1500, and Tahoe, and 2004-2006 GMC Yukon and Yukon XL 1500, front right. RH-5074 is also a practical replacement when the original sensor has been affected by road debris, water intrusion, salt exposure, or impact damage.
This part cross-references OE number 15128631 for the same application.
Common Issues This Sensor Can Address
- Incorrect vehicle ride height readings
- Air suspension compressor cycling at the wrong time
- Uneven front suspension leveling
- Warning lights related to ride height input
- Sensor failure from corrosion, debris, or moisture intrusion
Installation Notes and Tips
Verify the front right position and confirm the vehicle uses the listed sensor design before ordering. Inspect the connector, terminals, and mounting points for corrosion or damage before installation. After replacement, check system operation and confirm the suspension responds normally to load changes.
Quality Assurance
Arnott supplies this as a new replacement sensor built to standard specifications for the listed GM applications. It is designed to restore accurate ride-height signal input for the air suspension control system on compatible Cadillac Escalade, Chevrolet Tahoe, and GMC Yukon models.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Cadillac | Escalade | Front Right | — |
| 2006 | Cadillac | Escalade ESV | Front Right | — |
| 2006 | Cadillac | Escalade EXT | Front Right | — |
| 2006 | Chevrolet | Avalanche 1500 | Front Right | — |
| 2006 | Chevrolet | Suburban 1500 | Front Right | — |
| 2006 | Chevrolet | Tahoe | Front Right | — |
| 2006 | GMC | Yukon | Front Right | — |
| 2006 | GMC | Yukon XL 1500 | Front Right | — |
| 2005 | Cadillac | Escalade | Front Right | — |
| 2005 | Cadillac | Escalade ESV | Front Right | — |
| 2005 | Cadillac | Escalade EXT | Front Right | — |
| 2005 | Chevrolet | Avalanche 1500 | Front Right | — |
| 2005 | Chevrolet | Suburban 1500 | Front Right | — |
| 2005 | Chevrolet | Tahoe | Front Right | — |
| 2005 | GMC | Yukon | Front Right | — |
| 2005 | GMC | Yukon XL 1500 | Front Right | — |
| 2004 | Cadillac | Escalade | Front Right | w/2nd Design Sensor w/No Pigtail |
| 2004 | Cadillac | Escalade ESV | Front Right | w/2nd Design Sensor w/No Pigtail |
| 2004 | Cadillac | Escalade EXT | Front Right | w/2nd Design Sensor w/No Pigtail |
| 2004 | Chevrolet | Avalanche 1500 | Front Right | w/2nd Design Sensor w/No Pigtail |
| 2004 | Chevrolet | Suburban 1500 | Front Right | w/2nd Design Sensor w/No Pigtail |
| 2004 | Chevrolet | Tahoe | Front Right | w/2nd Design Sensor w/No Pigtail |
| 2004 | GMC | Yukon | Front Right | w/2nd Design Sensor w/No Pigtail |
| 2004 | GMC | Yukon XL 1500 | Front Right | w/2nd Design Sensor w/No Pigtail |
