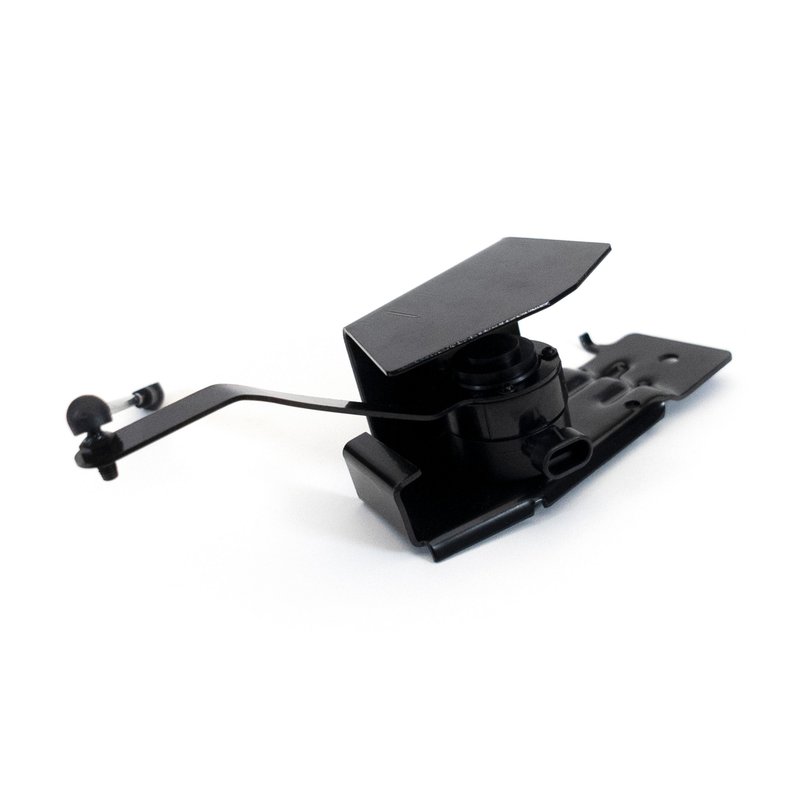

Arnott RH-5076 Headlight Level Sensor - Rear Right
| Brand | Arnott RH-5076 |
|---|---|
| Position | Rear Right |
| Terminal Type | Pin |
| Grade Type | Standard |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Terminal Gender | Male |
| Mounting Hardware Included | No |
| New Or Remanufactured | New |
| Fits | Chevrolet and GMC · 6 vehicles |
New standard sensor. Built as a fresh replacement for dependable ride-height control.
Pin connector. Uses a single oval connector with male terminals for straightforward hookup.
OE-style function. Measures chassis distance to help the suspension system maintain level ride height.
Cross-references 15128651 for the same application. See all 1.
Rear Right Headlight Level Sensor
Arnott RH-5076 is a new rear right headlight level sensor for select Chevrolet Suburban 2500 and GMC Yukon XL 2500 applications. It monitors chassis height so the vehicle’s control system can adjust air suspension response and maintain proper ride level.
Key Features
- New standard-grade sensor for rear right placement
- 1 oval connector with male pin terminals
- Direct replacement for OE part number 15128651
- Measures ride height changes for suspension leveling control
- Compatible with 2004-2006 Chevrolet Suburban 2500 and 2004-2006 GMC Yukon XL 2500 applications listed below
Detailed Description
This Arnott headlight level sensor, part number RH-5076, provides the height feedback the ECU uses to command air suspension adjustments. On vehicles such as the Chevrolet Suburban 2500 and GMC Yukon XL 2500, accurate rear right sensor input helps the system respond to changing load and road conditions. Arnott RH-5076 is a new replacement built with a single oval connector, male terminals, and standard-grade construction.
This part cross-references OE number 15128651 for the same application.
Vehicle Fitment
- Fits 2005-2006 Chevrolet Suburban 2500, rear right.
- Fits 2005-2006 GMC Yukon XL 2500, rear right.
- Fits 2004 Chevrolet Suburban 2500, rear right, w/2nd Design Sensor w/No Pigtail.
- Fits 2004 GMC Yukon XL 2500, rear right, w/2nd Design Sensor w/No Pigtail.
What It Helps Resolve
- Incorrect ride height readings at the rear right corner
- Air suspension compressor cycling caused by faulty sensor input
- Uneven vehicle stance from a worn height sensor
- Suspension warning behavior related to height signal loss
- Damage from road debris, water, salt, or impact at the sensor location
Installation Notes
Verify the rear right position and connector style before installation. This application uses a single oval connector and male pin terminals, and 2004 models require the 2nd design sensor with no pigtail. Inspect the mounting area and wiring for corrosion or damage before replacing the sensor.
Quality Assurance
Arnott manufactures this as a new aftermarket replacement sensor for air suspension height control. It is built to restore proper ride-height signal input for the listed Chevrolet Suburban 2500 and GMC Yukon XL 2500 applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Chevrolet | Suburban 2500 | Rear Right | — |
| 2006 | GMC | Yukon XL 2500 | Rear Right | — |
| 2005 | Chevrolet | Suburban 2500 | Rear Right | — |
| 2005 | GMC | Yukon XL 2500 | Rear Right | — |
| 2004 | Chevrolet | Suburban 2500 | Rear Right | w/2nd Design Sensor w/No Pigtail |
| 2004 | GMC | Yukon XL 2500 | Rear Right | w/2nd Design Sensor w/No Pigtail |
