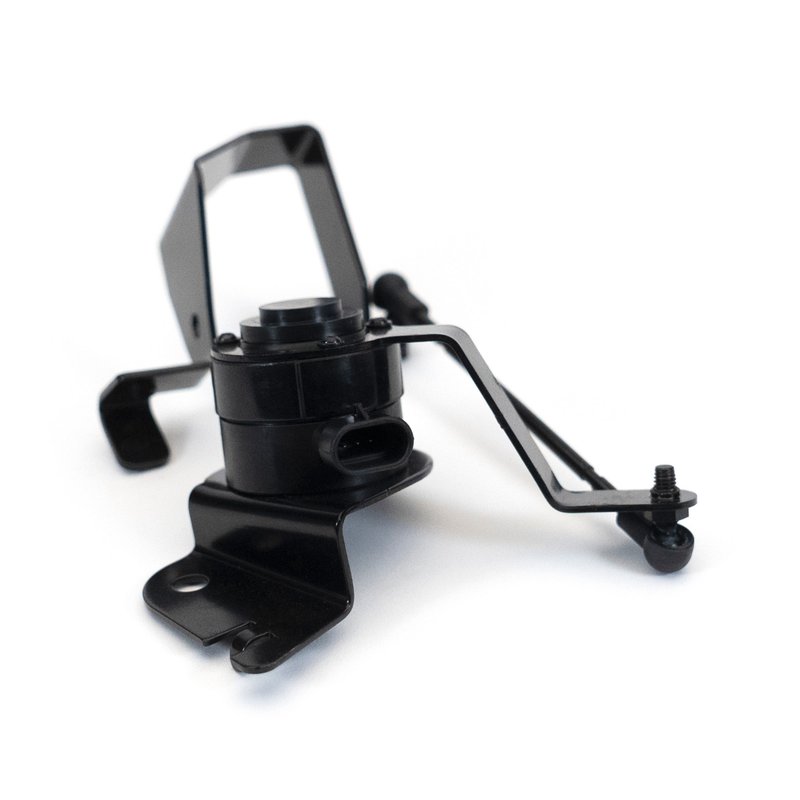

Arnott RH-5077 Suspension Ride Height Sensor - Front Right
| Brand | Arnott RH-5077 |
|---|---|
| Position | Front Right |
| Terminal Type | Pin |
| Grade Type | Standard |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Terminal Gender | Male |
| Mounting Hardware Included | No |
| New Or Remanufactured | New |
| Fits | Chevrolet and GMC · 12 vehicles |
New standard sensor. Measures ride height to help the suspension system maintain proper leveling.
Oval connector with a single pin connection for straightforward installation.
Aftermarket replacement from Arnott for the ride height sensor.
Cross-references 15128633, 15267456 and 22175473 for the same application. See all 3.
Arnott RH-5077 Ride Height Sensor
Arnott RH-5077 is a new suspension ride height sensor for air suspension systems that monitor chassis position and send height data to the ECU. That signal helps the system adjust air pressure in the struts to maintain proper vehicle level on the road.
Compatible with 2000-2006 Chevrolet Suburban 2500 front right and 2000-2004 GMC Yukon XL 2500 front right, this sensor addresses common wear points caused by road debris, water, salt, and impact damage. The RH-5077 is a direct-fit suspension sensor for vehicles that rely on accurate ride-height feedback.
Key Features
- Brand: Arnott
- Part number: RH-5077
- Suspension ride height sensor for air suspension leveling systems
- New, standard-grade replacement
- 1 oval connector with male pin terminals
- No mounting hardware included
- Direct replacement for front right applications
Detailed Description
The Arnott RH-5077 measures the distance between the chassis and the road surface so the ECU can command the air suspension compressor to raise or lower the vehicle as needed. On Chevrolet Suburban 2500 and GMC Yukon XL 2500 models, accurate ride-height feedback is critical for maintaining proper stance and suspension response. This part number RH-5077 is built as a new replacement sensor with a single oval connector and pin-style male terminals for the specified front right position.
This part cross-references OE numbers 15128633 and 15267456 for the same application.
What It Helps Address
- Uneven vehicle stance from a failed height sensor
- Air suspension compressor cycling caused by incorrect height readings
- Warning lights or suspension faults related to ride-height input
- Loss of leveling control on the front right corner
- Sensor damage from corrosion, road debris, or water intrusion
Installation Notes and Tips
Install RH-5077 at the front right position only for the listed applications. Verify connector shape, terminal type, and mounting points before installation. Inspect the linkage, wiring, and surrounding suspension components for wear or damage, since a failed sensor can be accompanied by related issues in the air suspension system.
Quality Assurance
Arnott supplies aftermarket suspension components engineered for vehicle-specific fitment and system operation. RH-5077 is a new replacement part built for the listed Chevrolet Suburban 2500 and GMC Yukon XL 2500 applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Chevrolet | Suburban 2500 | Front Right | — |
| 2005 | Chevrolet | Suburban 2500 | Front Right | — |
| 2004 | Chevrolet | Suburban 2500 | Front Right | — |
| 2004 | GMC | Yukon XL 2500 | Front Right | — |
| 2003 | Chevrolet | Suburban 2500 | Front Right | — |
| 2003 | GMC | Yukon XL 2500 | Front Right | — |
| 2002 | Chevrolet | Suburban 2500 | Front Right | — |
| 2002 | GMC | Yukon XL 2500 | Front Right | — |
| 2001 | Chevrolet | Suburban 2500 | Front Right | — |
| 2001 | GMC | Yukon XL 2500 | Front Right | — |
| 2000 | Chevrolet | Suburban 2500 | Front Right | — |
| 2000 | GMC | Yukon XL 2500 | Front Right | — |
