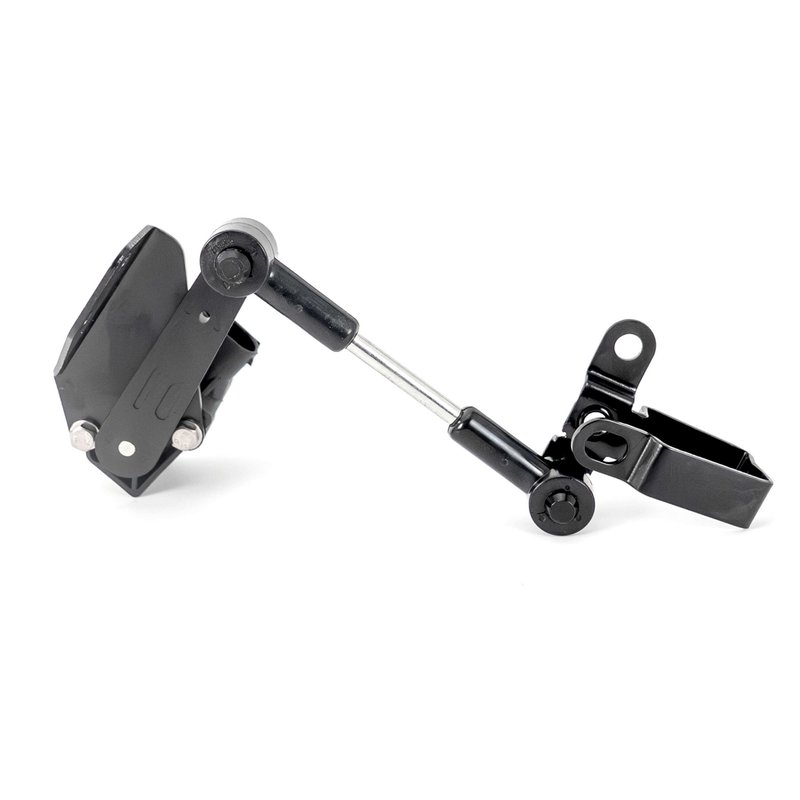

Arnott RH-5226 Suspension Ride Height Sensor - Rear Left
| Brand | Arnott RH-5226 |
|---|---|
| Position | Rear Left |
| Connector Color | Black |
| Terminal Type | Pin |
| Grade Type | Standard |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Connector Gender | Male |
| Terminal Gender | Male |
| Mounting Hardware Included | No |
| New Or Remanufactured | New |
| Fits | Hummer · 7 vehicles |
New sensor. Measures chassis height to help the air suspension system stay level.
Standard grade. A straightforward replacement with a single oval male connector.
Black connector with pin terminals for a clean, direct fit.
Cross-references 15058257, 15120870 and 15124077 for the same application. See all 6.
Arnott RH-5226 Ride Height Sensor for Hummer H2
Arnott RH-5226 is a new suspension ride height sensor that reports chassis position to the ECU so the air suspension system can adjust ride height as needed. It is a direct-fit style replacement for the rear left position on 2003-2009 Hummer H2 models.
Key Features
- New standard-grade ride height sensor
- Black oval connector with 1 male connector
- Pin terminal design with male terminal gender
- Measures vehicle-to-road distance for air suspension control
- Fits the rear left position on 2003-2009 Hummer H2
- Arnott RH-5226 replacement for OE-style suspension leveling repair
Detailed Description
The Arnott RH-5226 suspension ride height sensor sends position data to the vehicle control system so the compressor can raise or lower the air struts based on chassis height. On a Hummer H2, this sensor helps maintain proper suspension leveling and keeps the air suspension system responding correctly to changing load and road conditions. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Built as a new replacement sensor, RH-5226 matches the rear left application for 2003-2009 Hummer H2 models. The oval black connector, male connector layout, and pin terminal configuration support straightforward replacement of the original sensor. If you are searching for a rear left Hummer H2 ride height sensor, Arnott RH-5226 is the direct part number to reference.
What It Helps Fix
- Incorrect vehicle ride height readings
- Air suspension compressor cycling too often
- Uneven suspension leveling at the rear left corner
- Warning lights related to suspension height sensing
- Sensor wear from road debris, water, salt, or impact damage
Installation Notes and Tips
Verify the rear left location before replacement and compare the connector shape, color, and terminal style to the original sensor. Inspect the linkage, mounting points, and nearby wiring for corrosion or damage before installing the new RH-5226. After installation, clear any stored suspension codes and confirm the system levels correctly on the 2003-2009 Hummer H2.
Quality Assurance
Arnott supplies aftermarket suspension components focused on restoring proper air suspension operation. RH-5226 is a new ride height sensor built for the specified Hummer H2 application and replacement of a worn or damaged original sensor.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Hummer | H2 | Rear Left | — |
| 2008 | Hummer | H2 | Rear Left | — |
| 2007 | Hummer | H2 | Rear Left | — |
| 2006 | Hummer | H2 | Rear Left | — |
| 2005 | Hummer | H2 | Rear Left | — |
| 2004 | Hummer | H2 | Rear Left | — |
| 2003 | Hummer | H2 | Rear Left | — |
