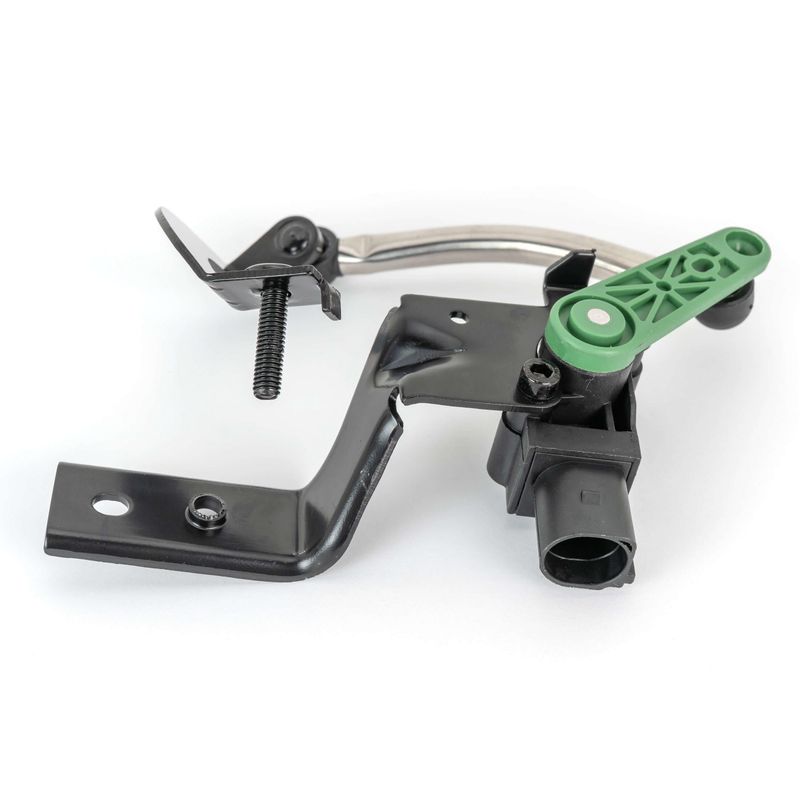

Arnott RH-5294 Headlight Level Sensor - Front Right

Arnott RH-5294 Front Right Ride Height Sensor

The Arnott RH-5294 is a new front right ride height sensor for select Audi TT, TT Quattro, TTS Quattro, and TT RS Quattro models. It monitors suspension position and sends data to the vehicle control system to help maintain proper ride height in air suspension-equipped applications.

Key Features

• Front right ride height sensor for Audi applications
• Black 4-pin oval female connector with male blade terminals
• Standard-grade, new replacement part
• Lab tested for up to one million cycles
• Built to resist debris, water, and salt exposure
• Part number RH-5294 for direct identification

Detailed Description

Arnott RH-5294 is engineered for the front right position on 2016-2023 Audi TT Quattro, 2018-2023 Audi TT RS Quattro, 2016-2023 Audi TTS Quattro, and 2016-2018 Audi TT models. It is used to report suspension height changes so the vehicle control system can maintain correct ride height. The sensor uses a single connector with male terminal pins and is supplied as a new standard replacement. If you are searching for an Audi TT front right ride height sensor or an Arnott RH-5294 replacement for Audi TT Quattro suspension height monitoring, this part matches the listed OE-style application. This part cross-references Audi 8S0412522 for the same application.

What It Helps Address

• Suspension height signal errors from a worn sensor
• Incorrect ride height readings at the front right corner
• Air suspension control issues caused by inconsistent position feedback
• Sensor failure from exposure to road debris, water, or salt
• Intermittent electrical connection at the sensor plug

Installation Notes and Tips

Install at the front right suspension position only on the listed Audi TT-family models. Mounting hardware is not included, so reuse or source the required hardware separately. Verify connector style, terminal orientation, and sensor indexing before installation. Because suspension sensors can wear at similar rates, Arnott recommends replacing them in pairs when service conditions call for it.

Quality Assurance

Arnott tests this sensor for durability through extended cycle testing and builds it for resistance to common underbody contaminants. The RH-5294 is a new replacement part intended to restore accurate suspension position feedback on the specified Audi TT, TT Quattro, TTS Quattro, and TT RS Quattro applications.
