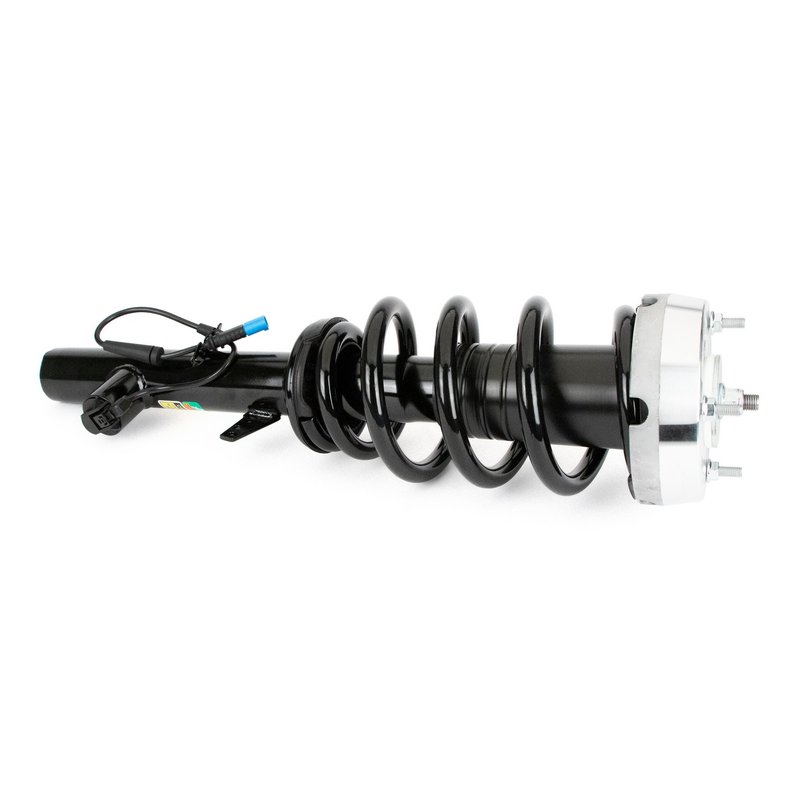

Arnott SK-3605 Suspension Strut - Front Left
| Brand | Arnott SK-3605 |
|---|---|
| Position | Front Left |
| 10527 | No |
| 10528 | No |
| 10530 | Passive |
| Compressed Length | 447 |
| Travel Length | 131 |
| Mounting Hardware Included | Yes |
| Internal Construction Type | Twin-tube |
| Grade Type | Standard |
| Housing Material | Steel |
| Extended Length | 578 |
| Adjustable | No |
| Lower Mount Type | Base cup |
| Upper Mount Type | Stud |
| Boot Included | Yes |
| Gas Charged | Yes |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Progressive Spring Rate | No |
| Coil Spring Included | Yes |
| Dust Shield Included | Yes |
| Bladder(s) Included | No |
| Bladder Heavy Duty Crimping Rings Included | No |
| Bladder Sleeve(s) Included | No |
| Air Adjustable | No |
| Air Bladder | No |
| Air Bladder Material | No |
| Air Ride Suspension | No |
| Bearing Plate Included | Yes |
| Body End Measuring Point | Center eye |
| Boot Color | Black |
| Product line | Coil Strut Assembly |
| Fits | BMW · 10 vehicles |
OE-style replacement. A complete coil over strut assembly for straightforward service.
Custom-valved damping. Twin-tube hydraulic design helps restore a smooth ride.
New steel coils. Built with quality components and tested on dyno machines.
Cross-references 37106875083 and 37116863173 for the same application. See all 2.
Arnott Coil Strut Assembly for BMW X5/X6
Arnott SK-3605 is a new coil strut assembly built for the front left corner of select BMW X5 and BMW X6 models with VDC electronic struts. It replaces the OE air or electronic suspension component with a passive coil over strut that restores a conventional ride setup.
For BMW X5 front left and BMW X6 front left applications, this Arnott coil strut assembly combines a custom-valved internal shock, steel coil spring, and twin-tube hydraulic construction. The result is a direct suspension service part for drivers converting away from aging electronic suspension hardware.
Key Features
- Part number SK-3605
- Fits front left position on 2014-2018 BMW X5 and 2015-2019 BMW X6 with VDC electronic struts
- Passive coil strut assembly for replacing OE air or electronic suspension components
- New steel housing with twin-tube internal construction
- Custom-valved internal shock with gas-charged design
- Coil spring, spring seat, spring isolators, bearing plate, boot, and dust shield included
- Upper stud mount and lower base cup mount
- Black finish with steel housing and plastic dust shield
- New, non-adjustable suspension strut
Product Details
Arnott’s Coil Strut Assembly line is built as a complete passive suspension solution for vehicles originally equipped with air or electronic systems. SK-3605 uses a new coil over design with a custom-valved shock absorber and linear spring rate to deliver a conventional suspension layout while maintaining the correct front left fitment for BMW X5 and BMW X6 models. Arnott tests these assemblies on dyno equipment and in real-world fleet use to verify performance before release.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. If you are searching for a BMW X5 front left coil strut assembly or a BMW X6 front left suspension strut replacement, SK-3605 is the direct part number to reference.
What It Helps Fix
- Front left suspension sag from worn air or electronic strut components
- Ride height loss caused by aging OE suspension hardware
- Noise or harshness from failing internal shock components
- Warning lights related to electronic strut failure on equipped vehicles
- Uneven front suspension response on BMW X5 and BMW X6 models
Installation Notes
Compatible With 2014-2018 BMW X5, front left, and 2015-2019 BMW X6, front left, with VDC electronic struts. Verify the vehicle’s suspension configuration before installation, since this assembly is specified for models equipped with electronic struts. The unit includes the spring, mounts, boot, and dust shield, and uses a stud upper mount with a base cup lower mount.
SK-3605 measures 578 mm extended length, 447 mm compressed length, and 131 mm travel length. Confirm clearance, mounting points, and suspension orientation during replacement to ensure proper installation on the BMW X5 or BMW X6 front left corner.
Quality Assurance
Arnott builds this coil strut assembly as a new replacement part using quality components and validates it through dyno testing and road testing on company fleet vehicles. The design is intended to provide a dependable passive alternative to aging air or electronic suspension systems.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2019 | BMW | X6 | xDrive50i | 4.4L | V8 | Front Left | w/VDC Electronic Struts; Coil Strut Assembly |
| 2018 | BMW | X5 | — | 2.0L | L4 | Front Left | w/VDC Electronic Struts; Coil Strut Assembly |
| 2018 | BMW | X6 | xDrive50i | 4.4L | V8 | Front Left | w/VDC Electronic Struts; Coil Strut Assembly |
| 2017 | BMW | X5 | xDrive50i | 4.4L | V8 | Front Left | w/VDC Electronic Struts; Coil Strut Assembly |
| 2017 | BMW | X6 | — | 3.0L | L6 | Front Left | w/VDC Electronic Struts; Coil Strut Assembly |
| 2016 | BMW | X5 | — | 3.0L | L6 | Front Left | w/VDC Electronic Struts; Coil Strut Assembly |
| 2016 | BMW | X6 | — | 3.0L | L6 | Front Left | w/VDC Electronic Struts; Coil Strut Assembly |
| 2015 | BMW | X5 | xDrive50i | 4.4L | V8 | Front Left | w/VDC Electronic Struts; Coil Strut Assembly |
| 2015 | BMW | X6 | xDrive50i | 4.4L | V8 | Front Left | w/VDC Electronic Struts; Coil Strut Assembly |
| 2014 | BMW | X5 | — | — | — | Front Left | w/VDC Electronic Struts; Coil Strut Assembly |
