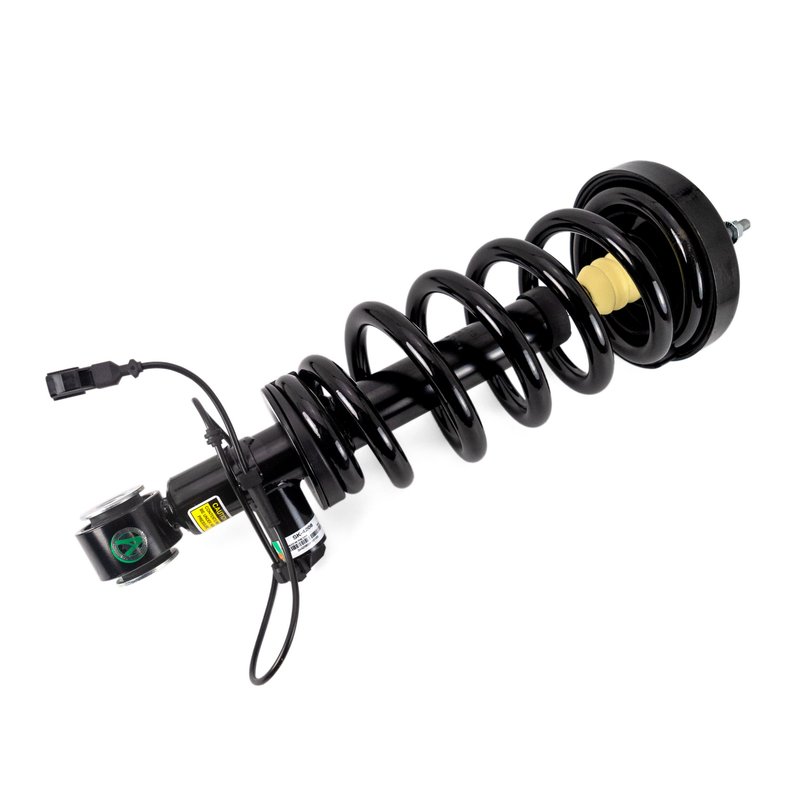

Arnott SK-4208 Suspension Strut and Coil Spring Assembly - Rear Right
| Brand | Arnott SK-4208 |
|---|---|
| Position | Rear Right |
| 10527 | No |
| 10528 | No |
| 10530 | Passive |
| Compressed Length | 395 |
| Travel Length | 145 |
| Mounting Hardware Included | Yes |
| Internal Construction Type | Twin-tube |
| Grade Type | Standard |
| Housing Material | Steel |
| Extended Length | 540 |
| Adjustable | No |
| Lower Mount Type | Loop/eyelet |
| Upper Mount Type | Stud |
| Boot Included | Yes |
| Gas Charged | Yes |
| Body Diameter | 50 |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Progressive Spring Rate | No |
| Coil Spring Included | Yes |
| Dust Shield Included | Yes |
| Bladder(s) Included | No |
| Bladder Heavy Duty Crimping Rings Included | No |
| Bladder Sleeve(s) Included | No |
| Air Adjustable | No |
| Air Bladder | No |
| Air Bladder Material | No |
| Air Ride Suspension | No |
| Bearing Plate Included | Yes |
| Body End Measuring Point | Center eye |
| Fits | Ford and Lincoln · 8 vehicles |
Passive design. Delivers OE-style ride behavior without external vehicle commands.
Complete assembly. Includes coil spring, boot, dust shield, and isolators for service replacement.
Twin-tube construction. Steel housing and hydraulic damping support consistent suspension control.
Cross-references JL1Z18125A and JL1Z18125H for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Overview
Arnott SK-4208 is a passive suspension strut and coil spring assembly for the rear right side of select full-size SUVs. It is engineered to deliver OE-style stability, handling, control, and comfort without external vehicle commands.
Compatible with 2018-2021 Ford Expedition and 2018-2021 Lincoln Navigator applications with Continuously Controlled Damping (CCD), this assembly is built as a new replacement with integrated spring and damping components.
Key Features
- Passive strut design for OE-style ride behavior
- Twin-tube construction with hydraulic internal damping
- Steel housing with gas-charged operation
- Coil spring, boot, dust shield, and isolators included
- Linear spring rate and non-adjustable damping
- Part number SK-4208 for application matching
Detailed Description
Arnott SK-4208 is a rear right suspension strut and coil spring assembly developed for the 2018-2021 Ford Expedition and 2018-2021 Lincoln Navigator with CCD. The passive design uses tested internal settings to replicate original OE performance, making it a direct replacement choice for restoring factory ride characteristics. The assembly includes a twin-tube steel body, hydraulic damper, gas charge, and integrated spring components for a complete suspension service solution. Arnott SK-4208 is also referenced by part numbers JL1Z18125A and JL1Z18125H for the same application.
Common Issues It May Address
- Rear suspension sag or uneven ride height
- Excessive bounce, harshness, or reduced damping control
- Noisy or worn strut components
- Loss of factory ride quality in CCD-equipped suspension systems
Installation Notes
Fits 2018-2021 Ford Expedition, rear right, with Continuously Controlled Damping (CCD). Fits 2018-2021 Lincoln Navigator, rear right, with Continuously Controlled Damping (CCD). Verify the vehicle's suspension configuration before ordering. Arnott recommends replacing these struts in pairs.
Quality Assurance
Arnott engineers test internal strut settings to match OE performance targets for this application. The SK-4208 is a new part built with standard-grade materials and a passive design intended to restore original ride behavior.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2021 | Ford | Expedition | Rear Right | w/Continuously Controlled Damping (CCD) |
| 2021 | Lincoln | Navigator | Rear Right | w/Continuously Controlled Damping (CCD) |
| 2020 | Ford | Expedition | Rear Right | w/Continuously Controlled Damping (CCD) |
| 2020 | Lincoln | Navigator | Rear Right | w/Continuously Controlled Damping (CCD) |
| 2019 | Ford | Expedition | Rear Right | w/Continuously Controlled Damping (CCD) |
| 2019 | Lincoln | Navigator | Rear Right | w/Continuously Controlled Damping (CCD) |
| 2018 | Ford | Expedition | Rear Right | w/Continuously Controlled Damping (CCD) |
| 2018 | Lincoln | Navigator | Rear Right | w/Continuously Controlled Damping (CCD) |
