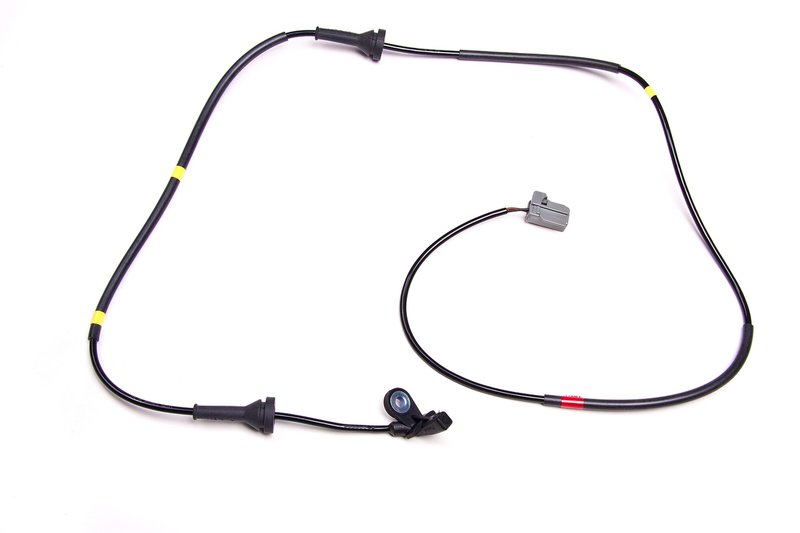

ATE 360251 ABS Wheel Speed Sensor - Rear Left

ATE Rear Left ABS Wheel Speed Sensor

ATE Wheel Speed Sensor 360251 is an OEM-direct ABS wheel speed sensor built for the rear left position on select Volvo XC90 models. It delivers the wheel-speed signal used by ABS, traction control, and electronic stability systems to monitor wheel rotation and support stable braking response.

Key Features

• Exact OEM fit, form, and function for the original application
• Rear left mounting position for select 2003-2014 Volvo XC90 vehicles
• Plastic and metal construction for the sensor body and mounting interface
• 1200 mm wiring harness included for direct replacement routing
• 2-pin female terminal connection with pin-style terminal type
• ATE part number 360251 for catalog and service matching

Product Details

ATE Wheel Speed Sensor 360251 is part of ATE’s OEM Direct Parts program and is built to match the original sensor used on the vehicle. On the Volvo XC90, the sensor sends wheel-speed data to the ABS control system so the vehicle can calculate wheel rotation, detect lockup or slip, and manage stability-related functions. It also supports direction-based features used by systems such as hill start assist and park assistance. This part cross-references Beck/Arnley 084-4087 for the same application.

What This Sensor Helps Address

• ABS warning light caused by a failed rear left wheel speed sensor
• Traction control or stability control faults tied to incorrect wheel-speed input
• Loss of wheel-speed signal from damaged sensor wiring or connector issues
• Erratic braking-system data from a worn or contaminated sensor
• Directional sensing problems affecting stability-related vehicle functions

Installation Notes and Tips

Fits 2003-2014 Volvo XC90, rear left. Confirm connector style, harness routing, and mounting location before installation. Inspect the tone ring, wheel hub area, and wiring path for damage or corrosion that could affect the new sensor signal. The included wiring harness supports a direct replacement setup, and the 2-pin female terminal connection should be matched to the vehicle harness before final assembly. ATE 360251 is also listed under common interchange references including Standard Ignition ALS569.

Quality Assurance

ATE supplies brake and sensor components to OEM specifications, and this wheel speed sensor is produced as an exact OE-style replacement for the original application. It is intended to match the factory part’s fit, signal output, and system integration on compatible Volvo XC90 models.
